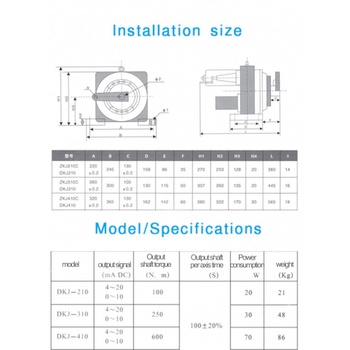

Product parameters

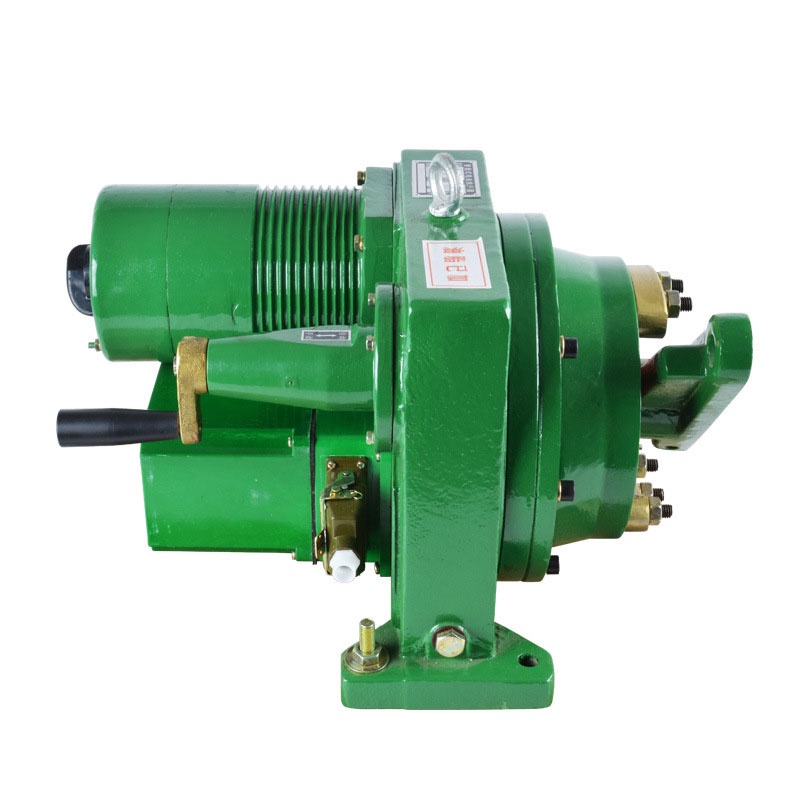

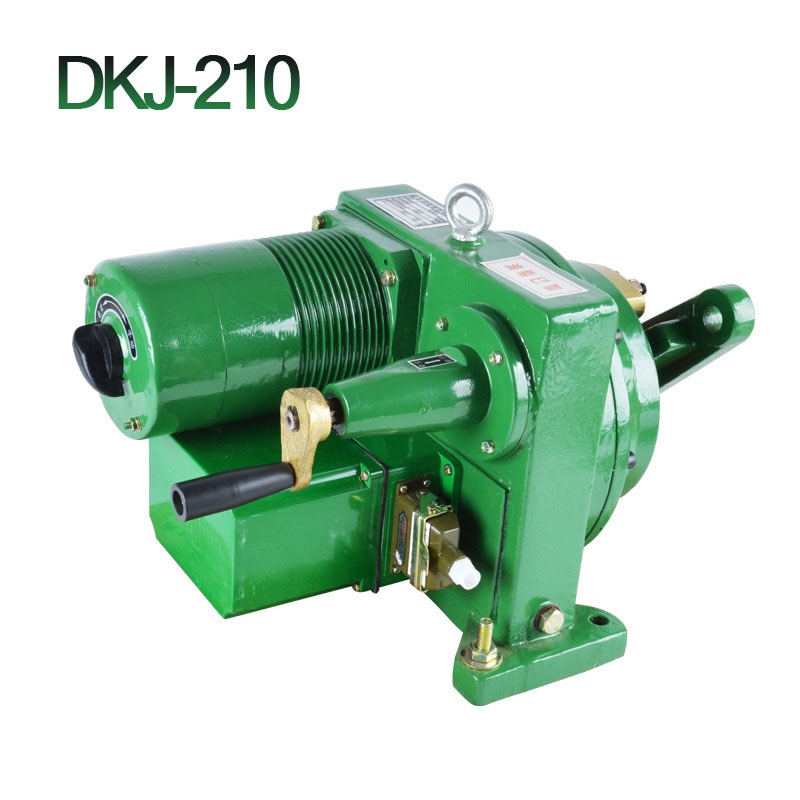

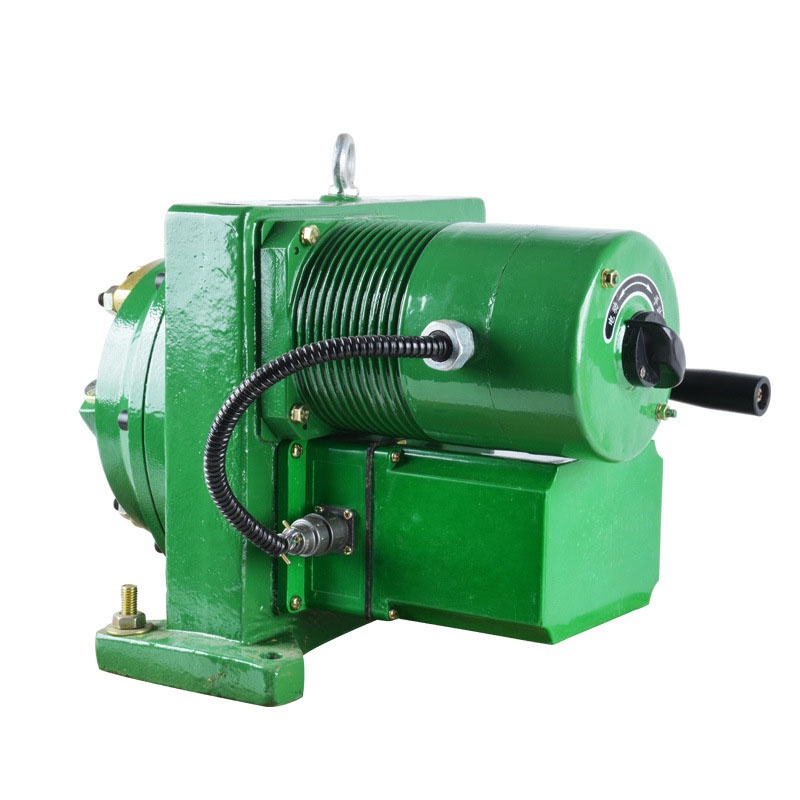

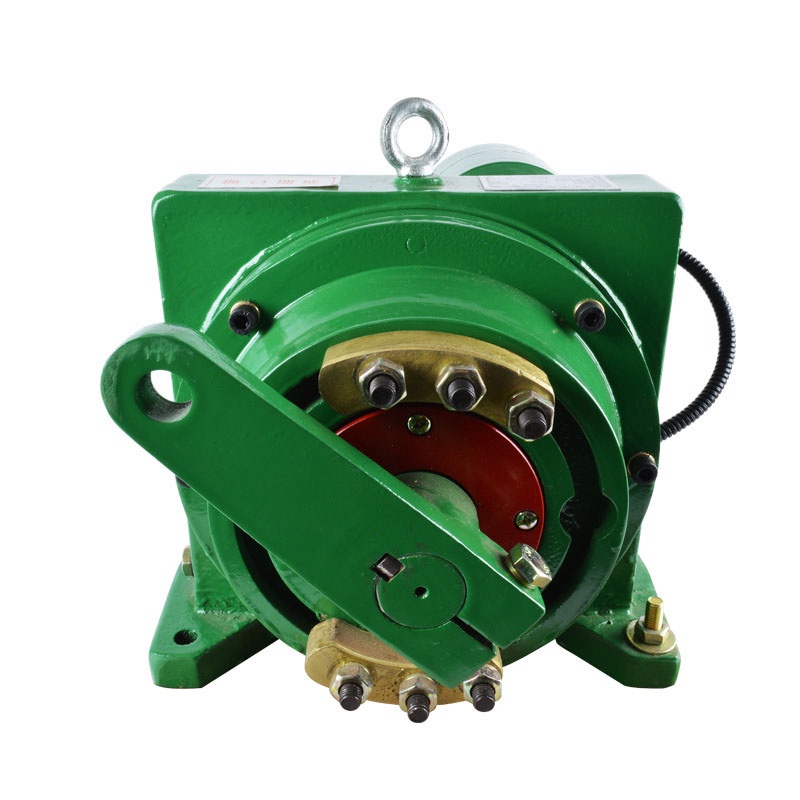

Product Name: DKJ-210 Electric Actuator
Product model: DKJ-210
Output signal: 4~20 0~10 (mA DC)
Output shaft torque: 100N.m
Output shaft time per revolution: 100±20%
Power consumption: 20W
Weight: 21kg
Features:
1. The electric actuator position transmitter adopts high reliability sensor with a resolution of 1/250. Output current type II 0~10mADC, type III 4~20mADC
2. Electric actuator position transmitter, strong load capacity, load capacity ≤7509.
3. The user can freely choose the travel limit mechanism, which is convenient for assembly and debugging, accurate positioning and good repeatability.
4. The AC servo motor has the characteristics of the valve motor, and the starting torque is large, which can withstand frequent starting and short-term stalling. with brake
5. The reducer adopts a small part of planetary gear transmission, which has the advantages of large speed ratio, small size, light weight and low efficiency.
6. The bit transmitter adopts integrated circuit technology, low power consumption, low temperature rise, constant current output characteristics, the output signal can be 4~20mA (DC or 0~10mA (DC), the 14-wire external wiring socket complies with the IP65 standard GB4208 regulations .
7. With stroke control start and contact output on/off signal, the range is 0-90C.
