Features:
1. Infrared resolution: 120x90 to 256x192
2. Display models: Thermal, Digital camera, Thermal blending, PiP on selected models
3. Temperature measurement range: -20℃~400℃ / -20℃~550℃
4. Cost effective

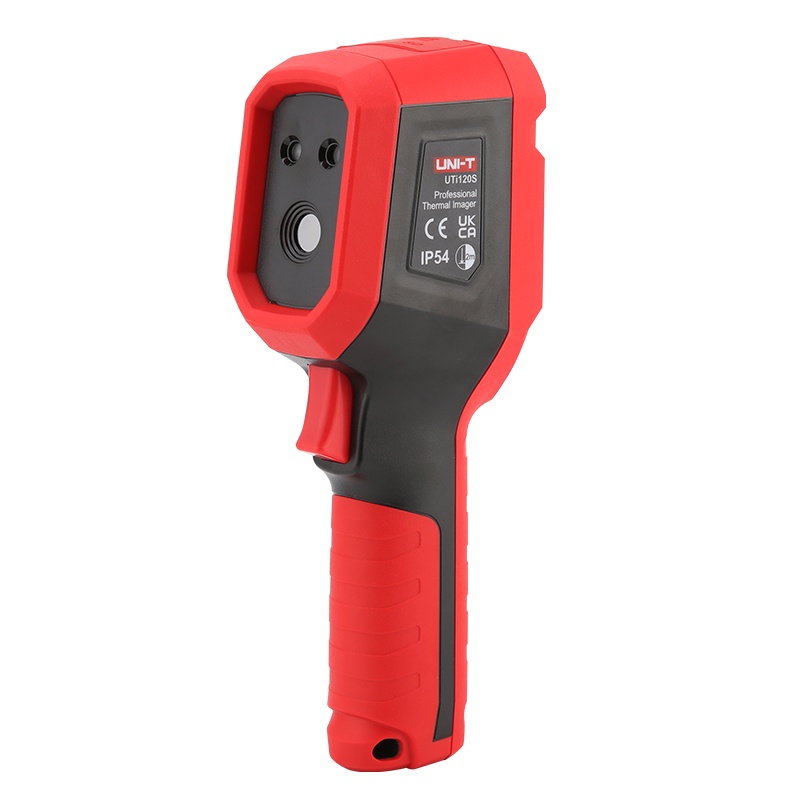

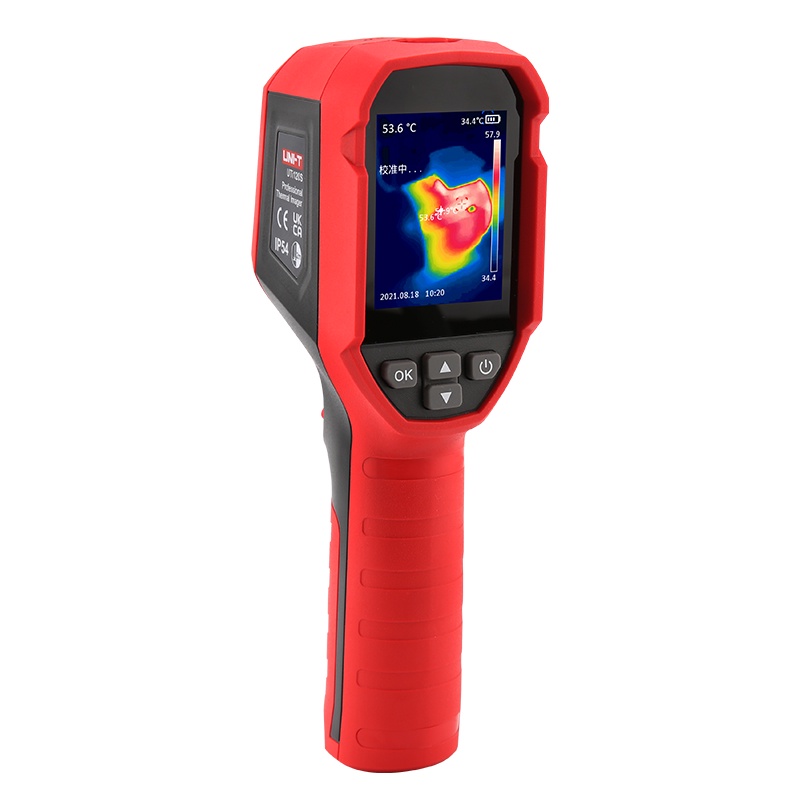

Model UTi120S
General Characteristics
IR resolution 120x90 pixels
Screen Display 2.4”TFT
Field of view (FOV) 50°x38°
Thermal sensitivity (NETD) 60mk
Spatial resolution (IFOV) 7.3mrad
Focus Focus free
Frame rate 25Hz
Object Temperature range -20~400℃
Measurement accuracy ±2℃ or ±2% whichever is greater
Battery operating time 8hours
Founctions
Palettes 6
Emissivity Adjustable (0.01-0.99)
Image Model Thermal
LED √
Auto tracking for Lo/Hi temperature √
Alarm √
Storage 16G Micro SD Card
PC software Analysis
Protection IP54/2m
Communication interface Type-C
Package
Product net size 196 x 63 x 75mm
Product net weight 310g
Standard accessories Micro SD card, Type-C USB cable, Manual
