Product parameters

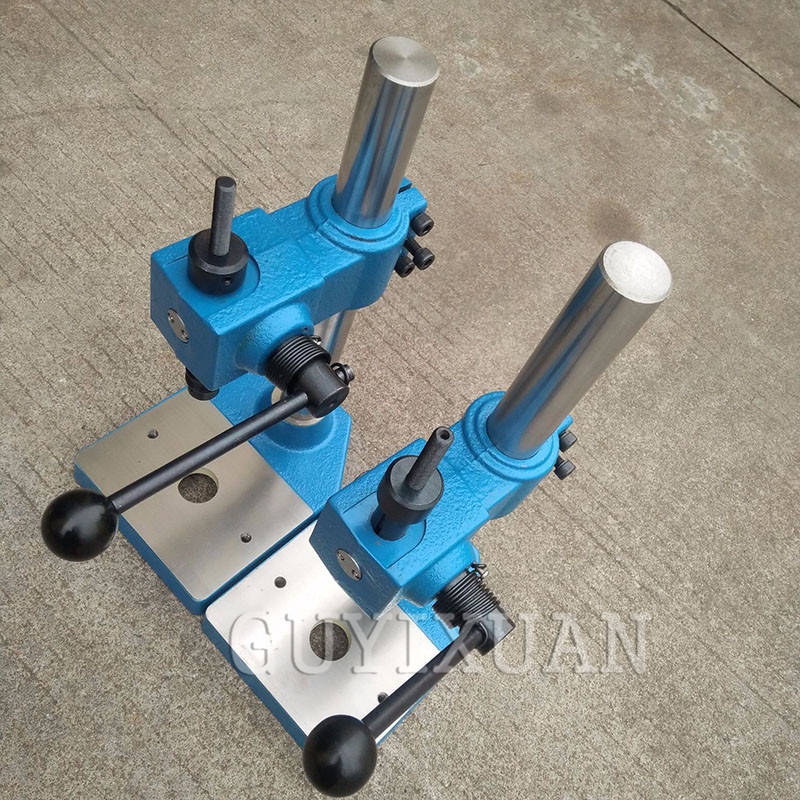

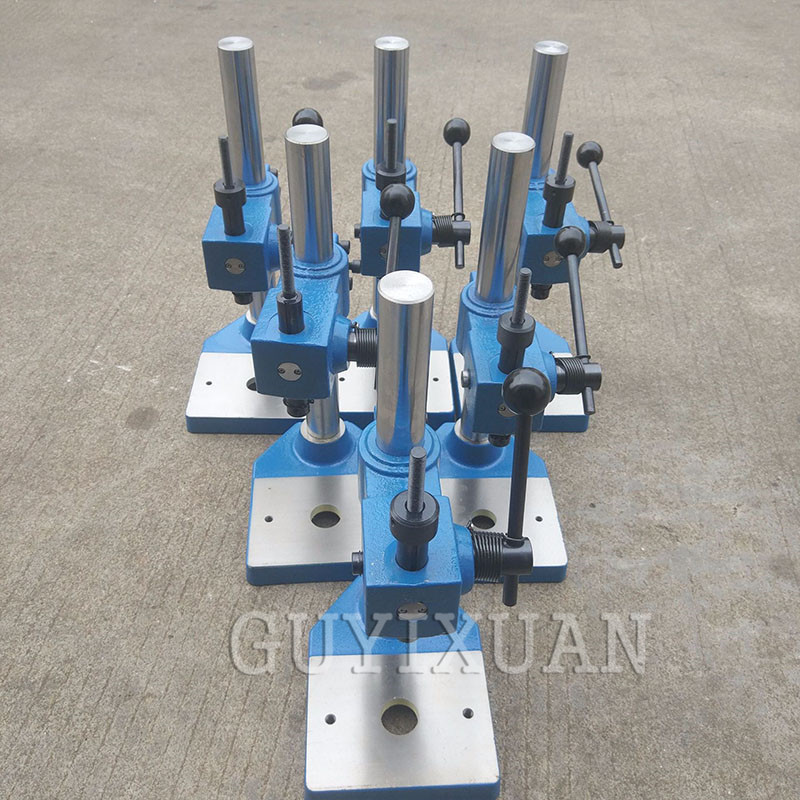

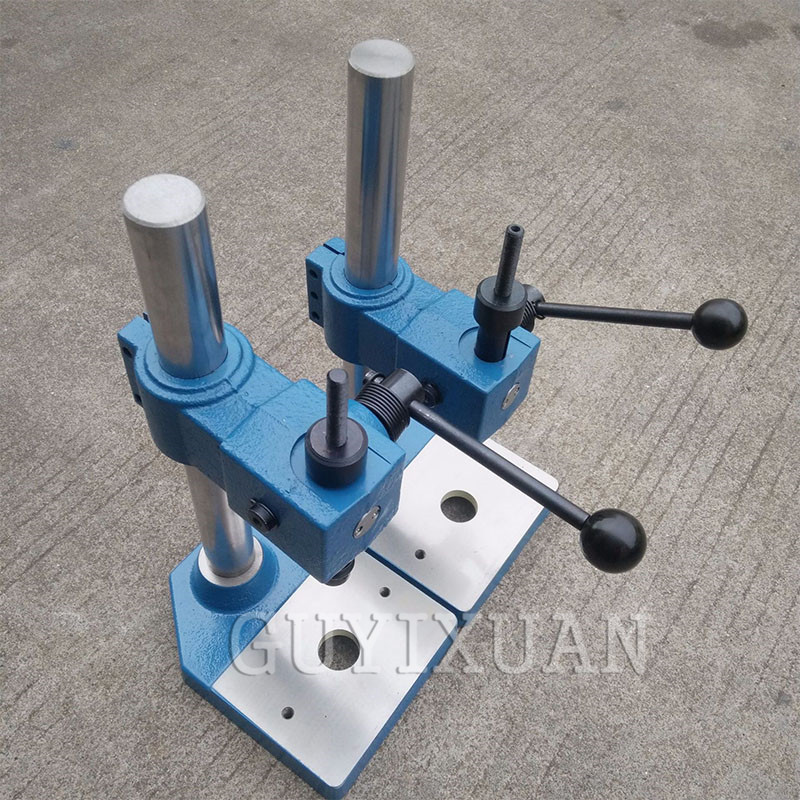

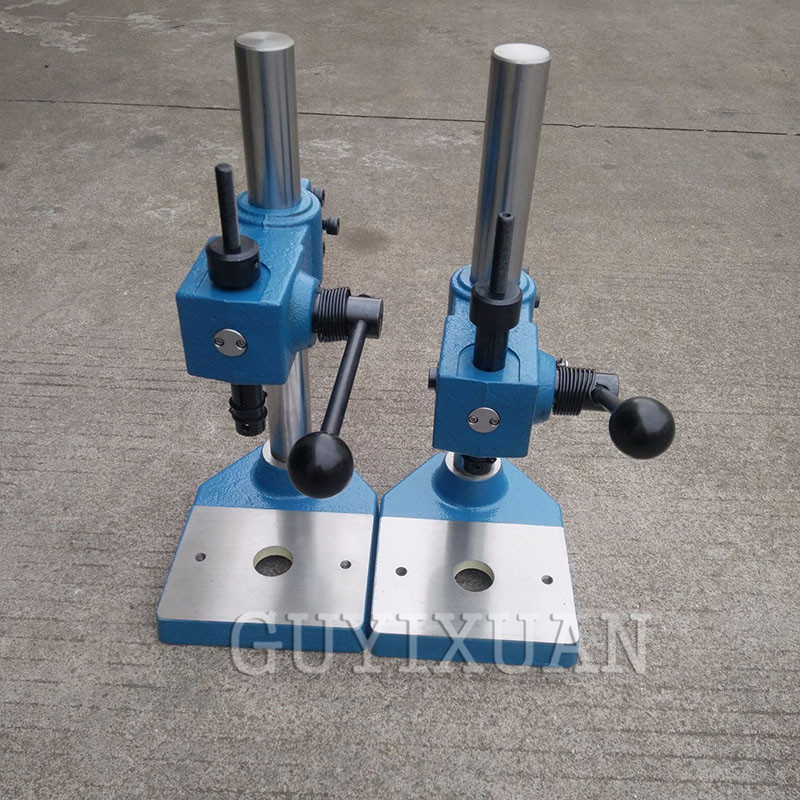

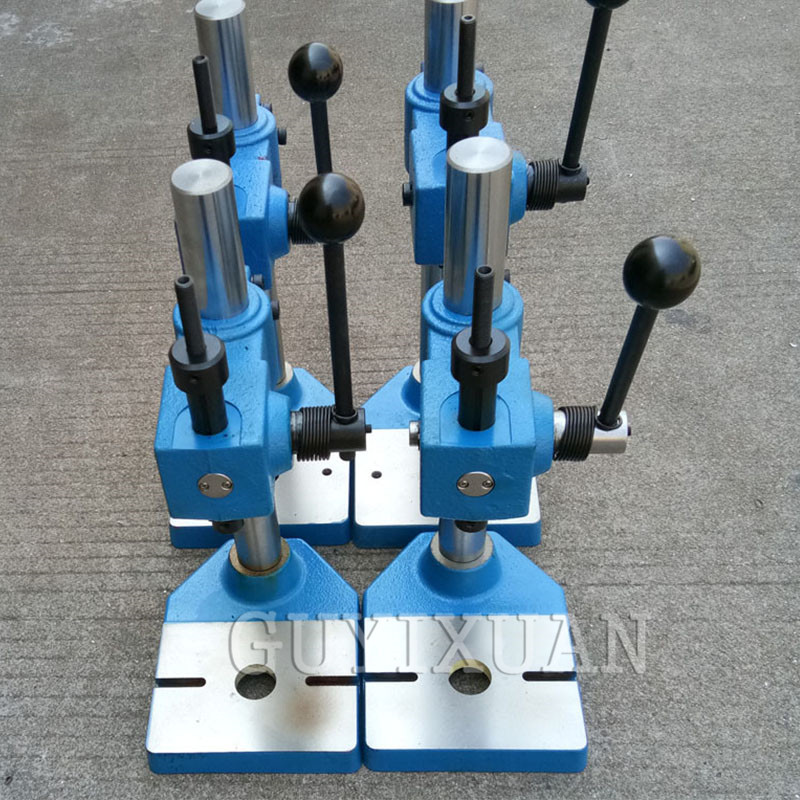

Product Name: Small hand press
Mold hole: 10MM
Weight: 9.5KG
Lower die mounting hole distance: M8*100MM
Spindle stroke: 40MM
Durability: 100KG
Tolerance accuracy pressure verticality: 0.02MM
Application: All kinds of precision assembly, molding, testing, pressing, riveting, printing, drilling, cutting, bending, soup and so on.
Widely used in: watches, microelectronics, jewelry, micro motors, toys and other industries.

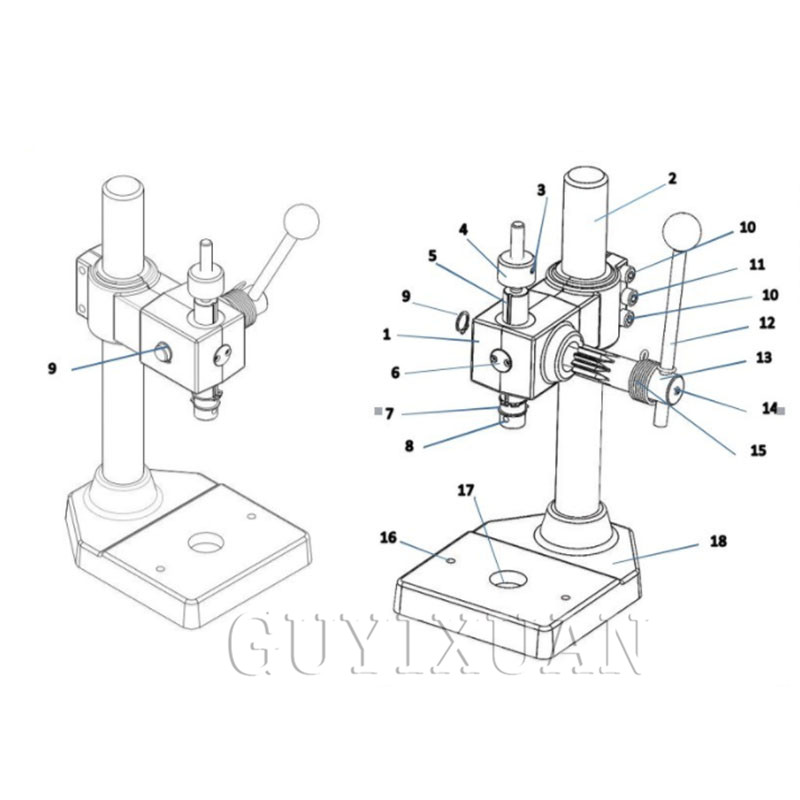

figure 2
1, ductile iron body
2, solid spindle
3, set screws
4, stroke adjustment knob
5, the rack spindle
6, guide block
7, stroke adjustment circlip
8, mold handle locking screw (M6)
9, circlip
10, MB locking screw
11, top loose screws
12, the handle
13, gear shaft
14, handle fixing screws (M6)
15, return spring
16, mold locking screw hole (M8)
17, leakage hole
18, the base
