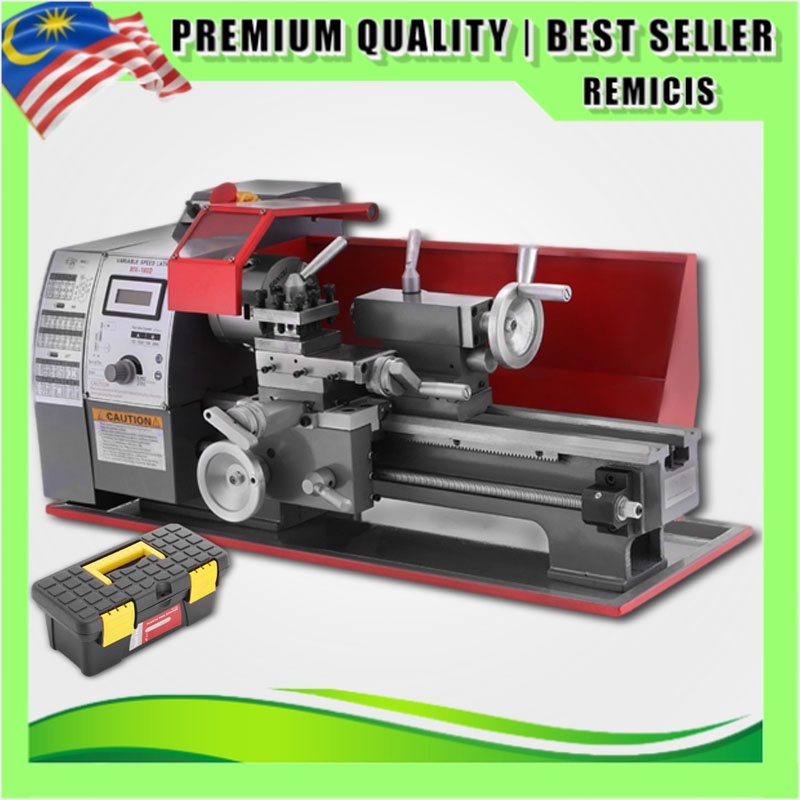

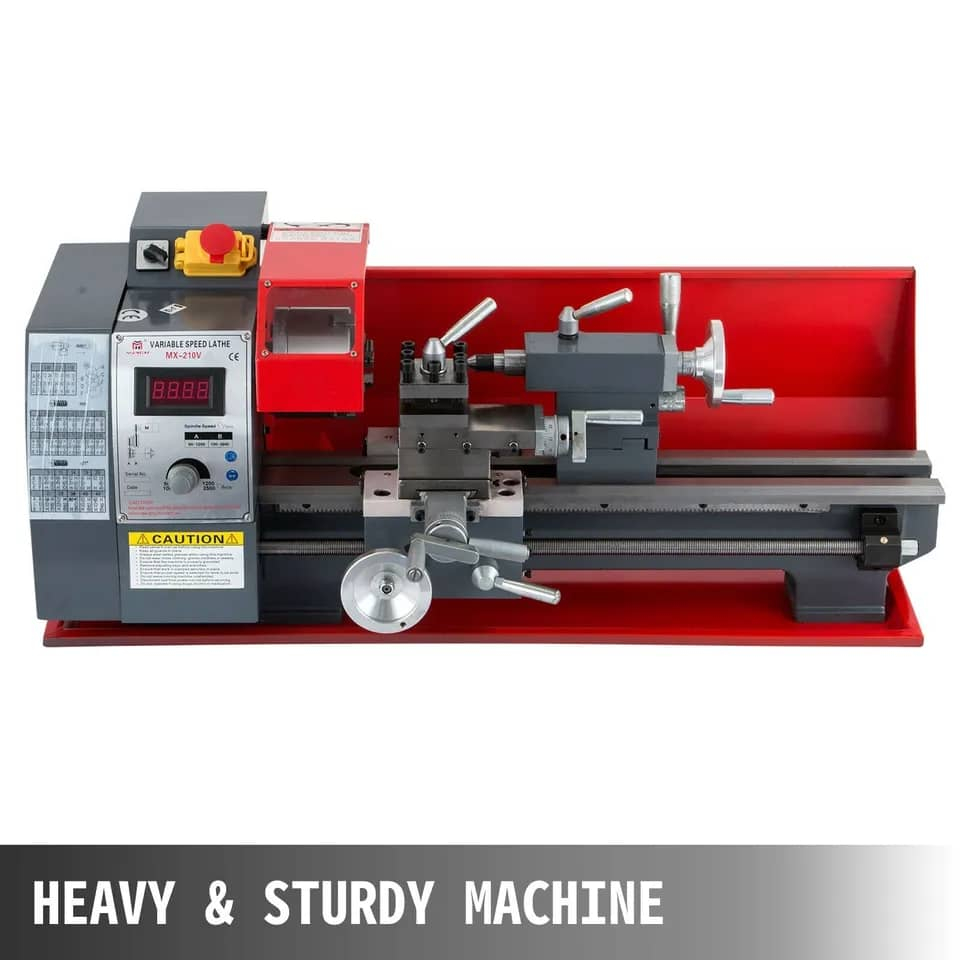

Product model: MX-210 household lathe (beads)
Motor power: 750W 220V

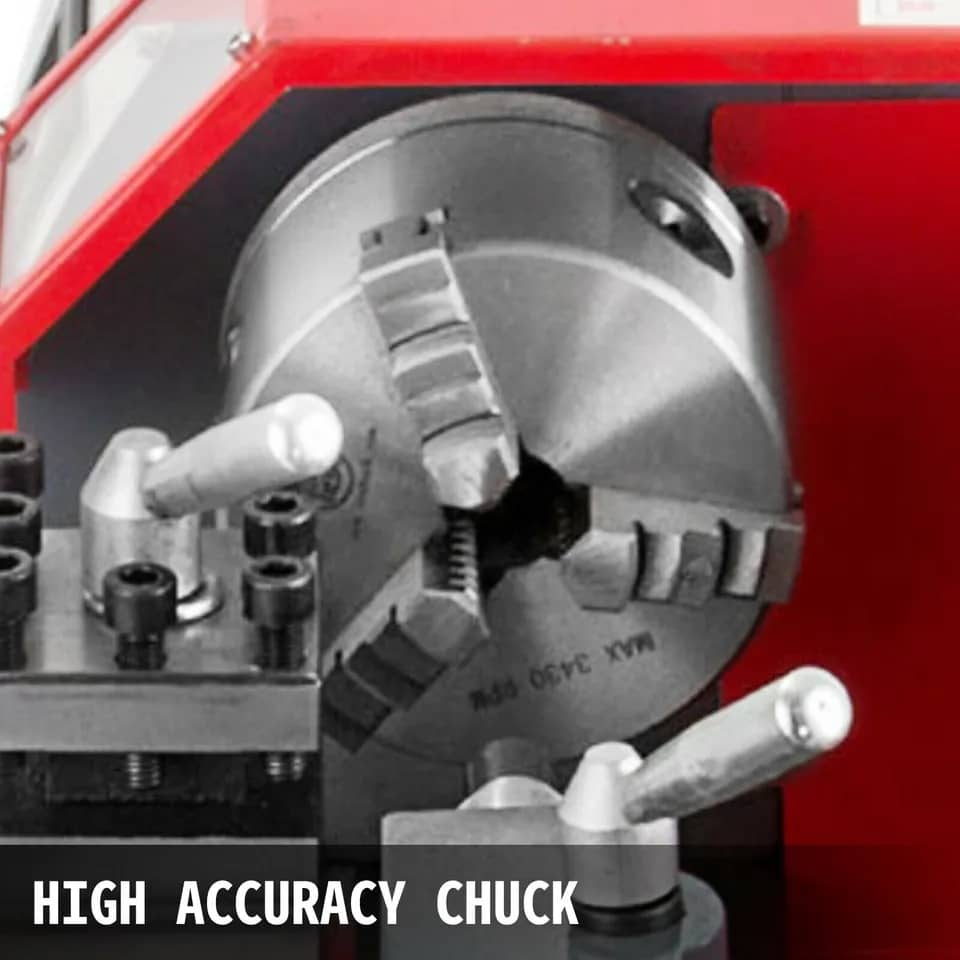

Chuck diameter: 125mm
Spindle accuracy: 0.01-0.03mm
Spindle taper: Mohs No. 3 / Mohs No. 5
Bed width: 100mm
Trolley stroke: 55mm
Turning Imperial Thread: 8-44TPI
Maximum Machinable Diameter: 130mm

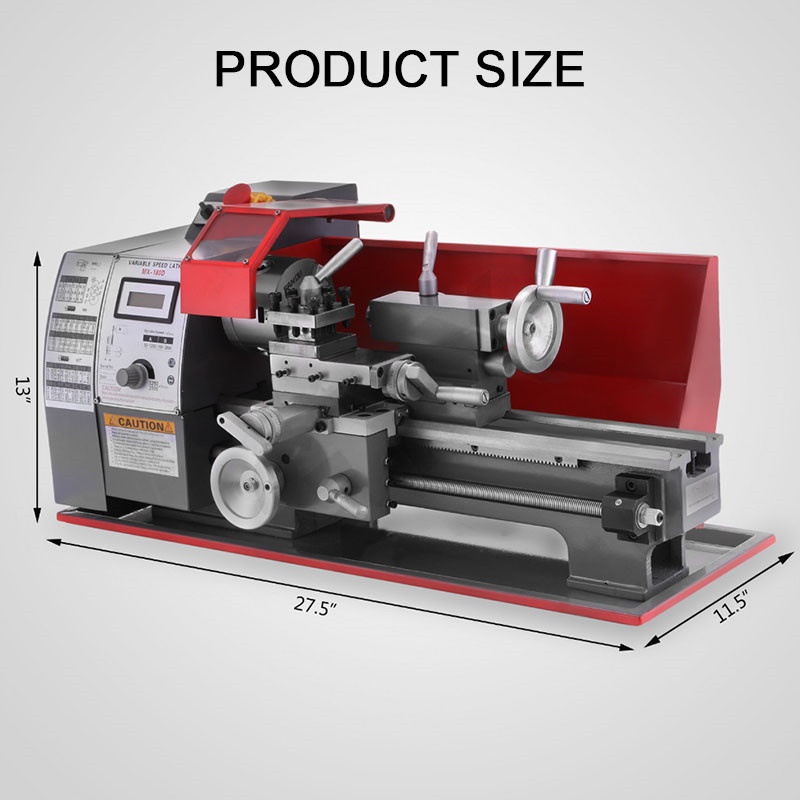

Packing size: 800*390*470mm
Speed: low 50-1250 high 100-2500RPM
Tailstock taper: Morse No. 2
Tailstock sleeve stroke: 60mm
Spindle through hole diameter: 38mm large through hole
Center distance: 400mm
Rotation diameter: 210mm
Trunk travel: 75mm
Turned Metric Thread: 0.5-3mm
Lathe spindle center height: 108mm
Net weight: 80kg
application
Suitable for turning of metal, wood, jade, etc.
Ideal for use in laboratories, workshops, engineering and education.
External assistance can be provided for internal turning, threading, tapering, etc.
feature
• DC motor drive.
• Stepless speed regulation.
• Induction hardened slides.
• All metal gears are free of any plastic parts.
• Variable spindle speed 50-1250 / 100-2500RPM.
• The spindle bearing adopts precision tapered roller bearing.
• Guide rails are induction hardened and finish milled.
• The spindle can be adjusted forward and reverse.
• 600w high power, 300mm processing distance.
• High-precision production of standard qualified works.
Product advantages

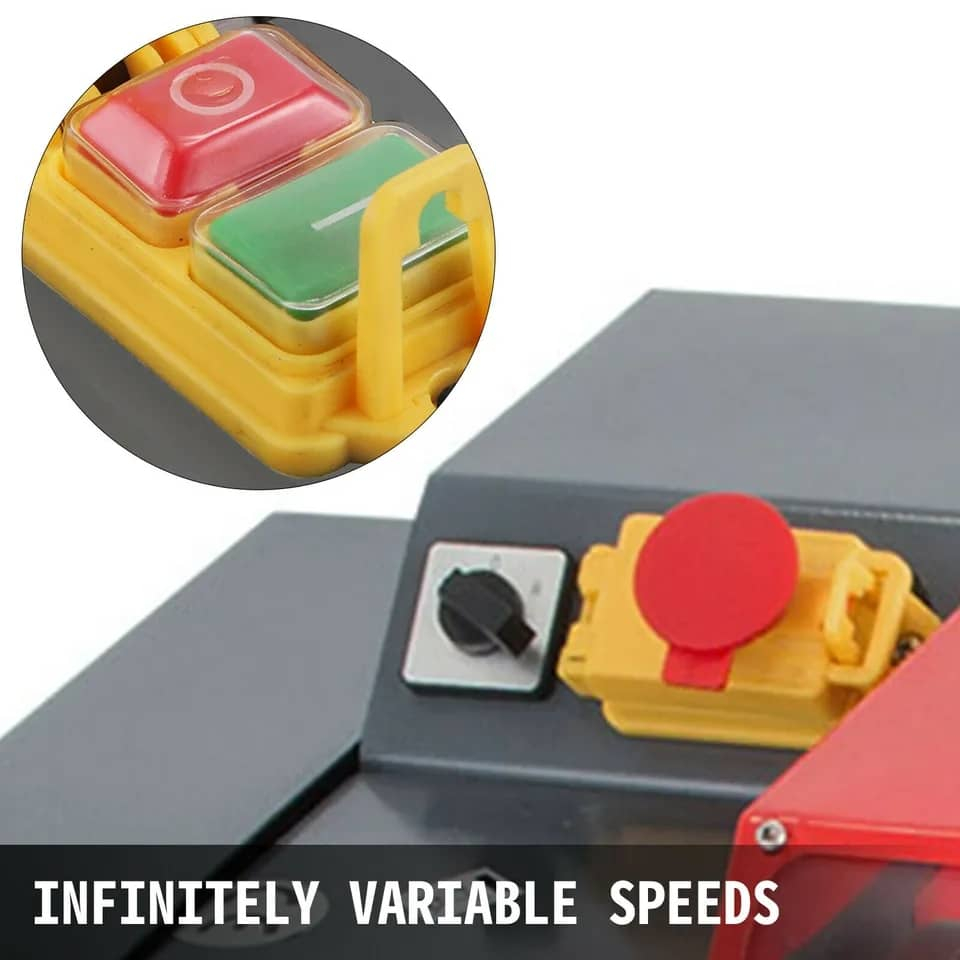

• Emergency stop: just close the red cover, very safe.
• Zoomed telescopic device for visual viewing of the length of the telescoping handle, adjustable digitally or by lateral movement.
• Spindle speed can be adjusted from 50 to 2500 RPM by adjusting the speed switch.
• The machine adopts powerful all-metal gears, which are wear-resistant, durable, more precise, precise, precise and professional.

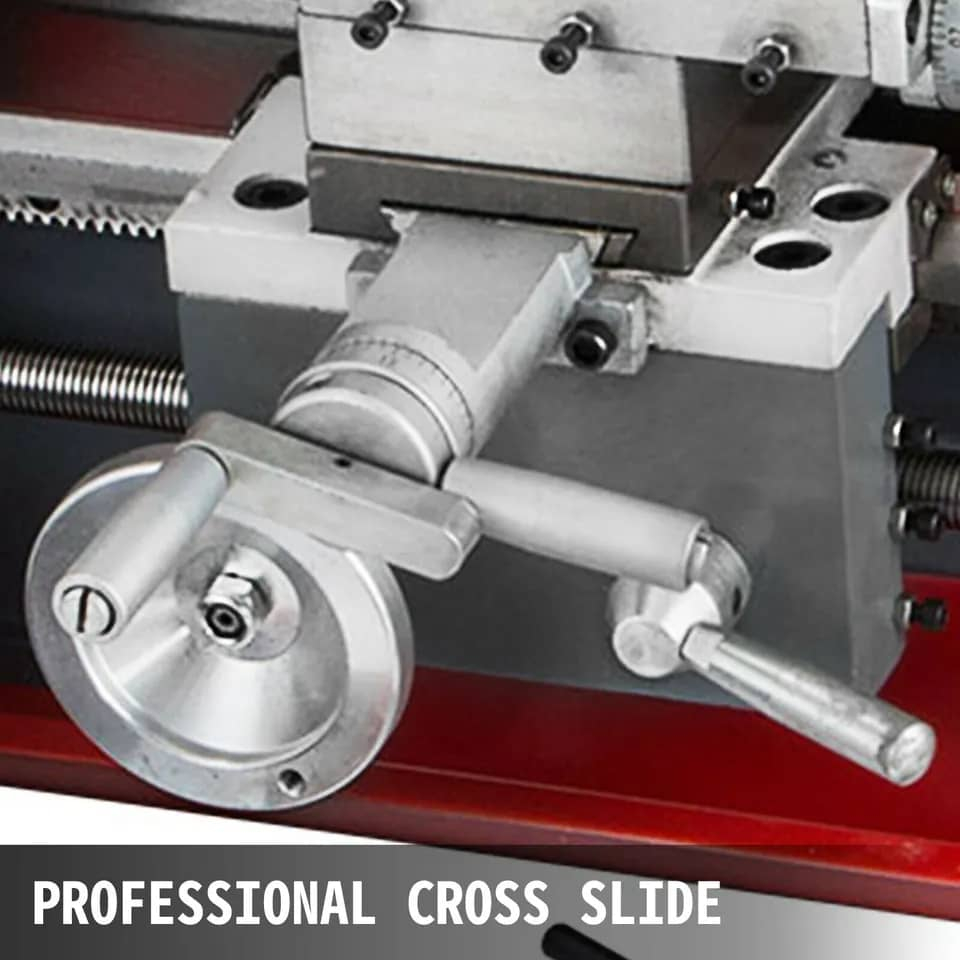

• The saddle-tail scale has high precision, fine-tuning of the feed, and the telescopic sleeve scale is practical.
• Automation tool with versatility and purpose, unlimited variables.

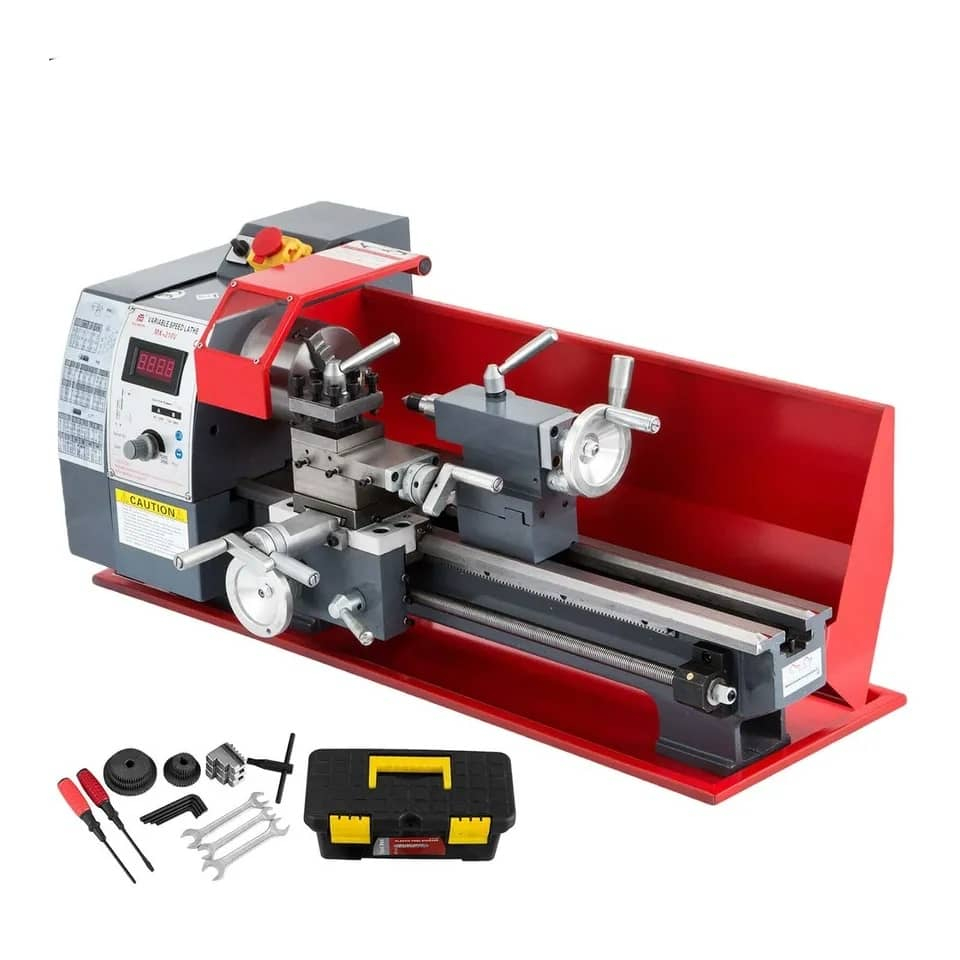

Packaging Packaging:
• 1 X Mini Lathe
• 1 X 3 jaw collet (100mm)
• 1 X splash guard
• 1 X Chip Tray
• 1 Toolbox
• 1 X English User Manual
Toolbox accessories:
• 5 X replacement gears
• 3 external jaws
• 1 X Reinforced Thimble
• 1 X Oil Tank
• 1 X collet wrench
• 5 X hex key
• 2 X screwdrivers
