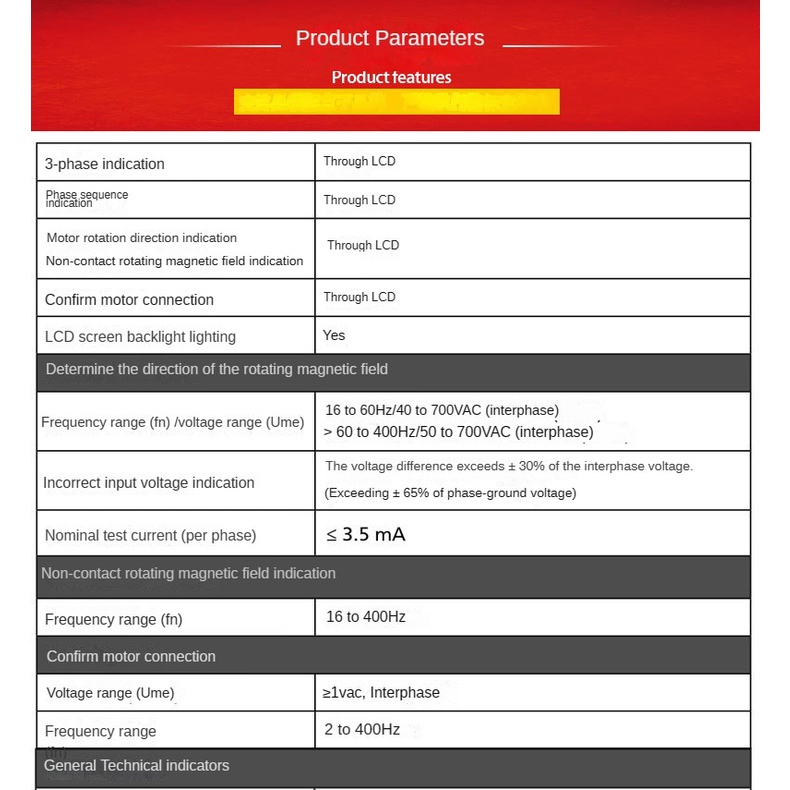

Product Specifications:
Product Features:
Amprobe is a subsidiary brand of Fluke.
Adheres rigorously to Fluke standards.

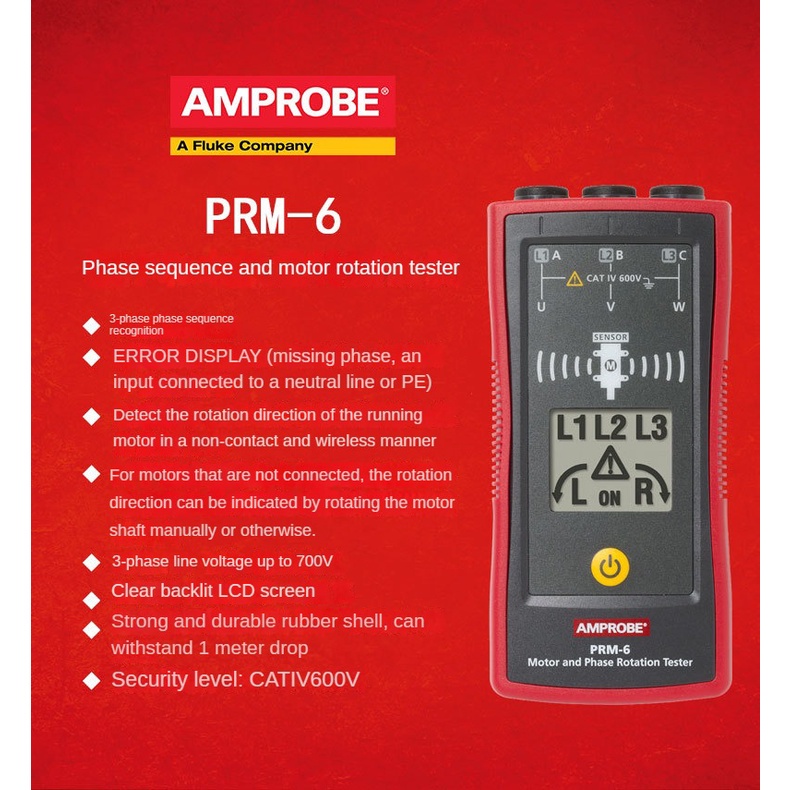

Three-phase indicators displayed via LCD.
Phase sequence indicators displayed via LCD.

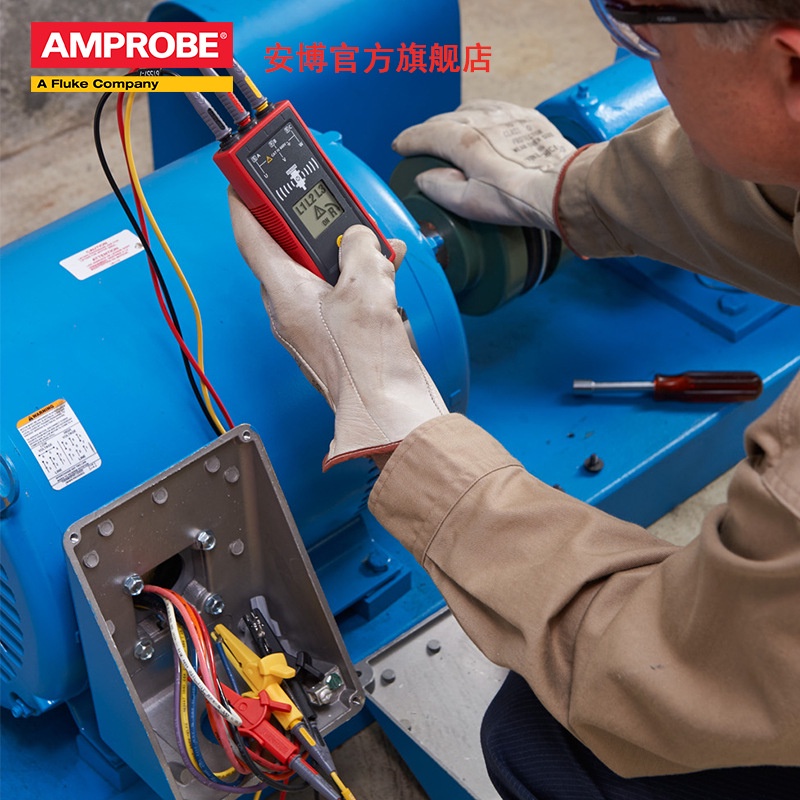

Motor rotation direction shown through non-contact rotating magnetic field on LCD.
Motor connection confirmation displayed on LCD.
Backlight illumination for LCD screen available.
Confirmation of rotation magnetic field direction.
Frequency range (fn) / Voltage range (Ume):
16 to 60Hz / 40 to 700VAC (phase-to-phase).
60 to 400Hz / 50 to 700VAC (phase-to-phase).
Error input voltage indicator:
Voltage difference exceeds ±30% of phase-to-phase voltage (or ±65% of phase-to-ground voltage).
Nominal test current (per phase): ≤3.5 mA.

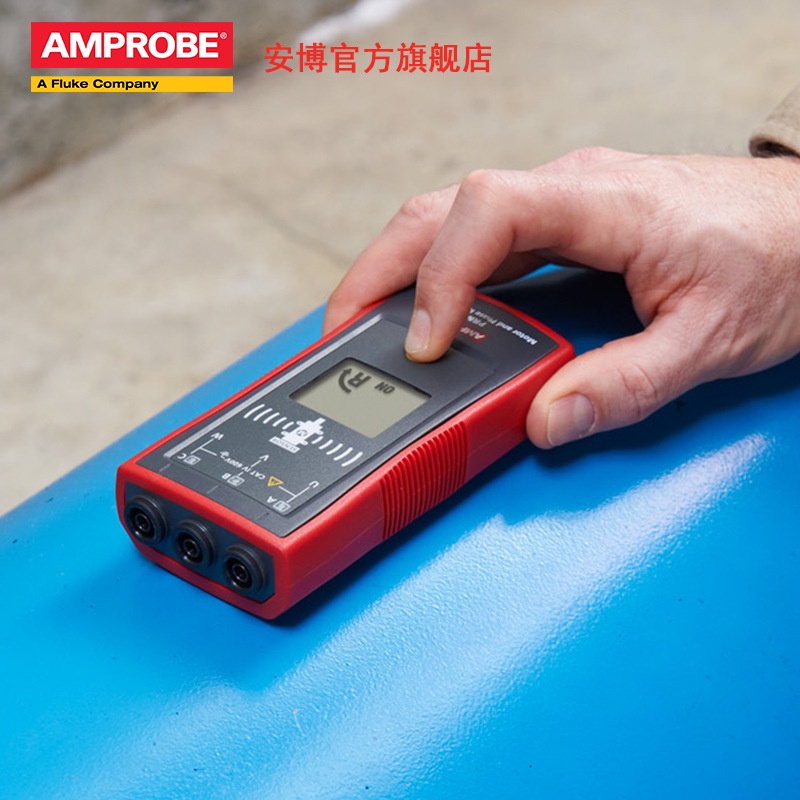

Non-contact rotating magnetic field indicator:
Frequency range (fn): 16 to 400Hz.
Motor connection confirmation:
Voltage range (Ume): ≥1 V AC, phase-to-phase.
Frequency range (fn): 2 to 400Hz.

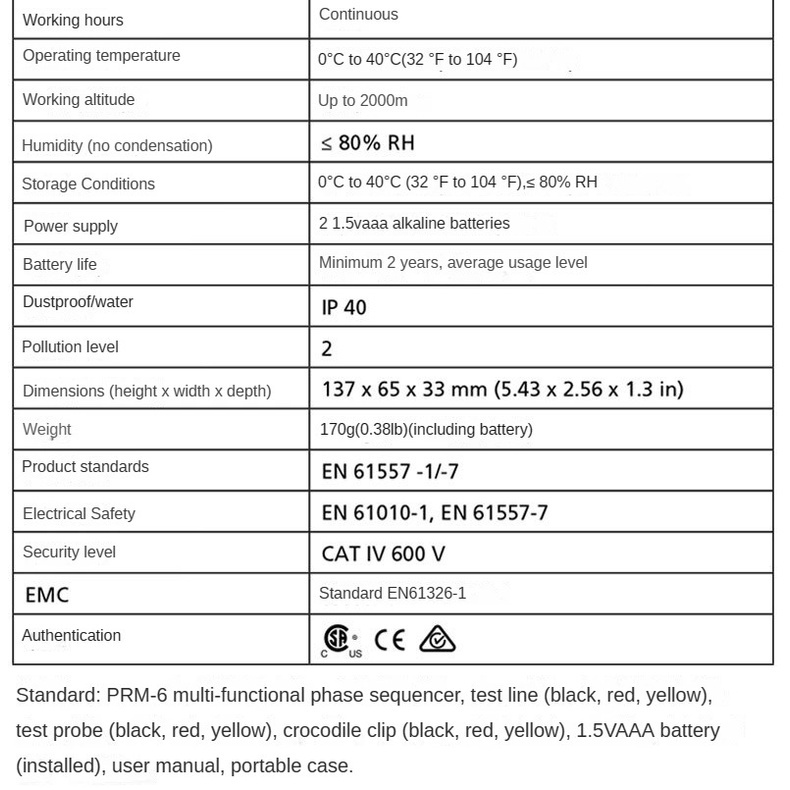

General Technical Specifications:
Operating time: Continuous.
Operating temperature: 0°C to 40°C (32°F to 104°F).
Maximum operating altitude: 2000m.
Humidity (non-condensing): ≤80% RH.
Storage conditions: 0°C to 40°C (32°F to 104°F), ≤80% RH.
Power source: Two 1.5V AAA alkaline batteries.
Battery life: Minimum 2 years, average use.
Dust and water resistance: IP40.
Pollution degree: 2.
Dimensions (H x W x D): 137 x 65 x 33mm (5.43 x 2.56 x 1.3 inches).
Weight: 170g (0.38 lb) (including batteries).
Product standards: EN 61557-1/-7.
Electrical safety: EN 61010-1, EN 61557-7.
Safety level: CAT IV 600V.
EMC: Complies with EN 61326-1 standard.
Certification: CE, C US.

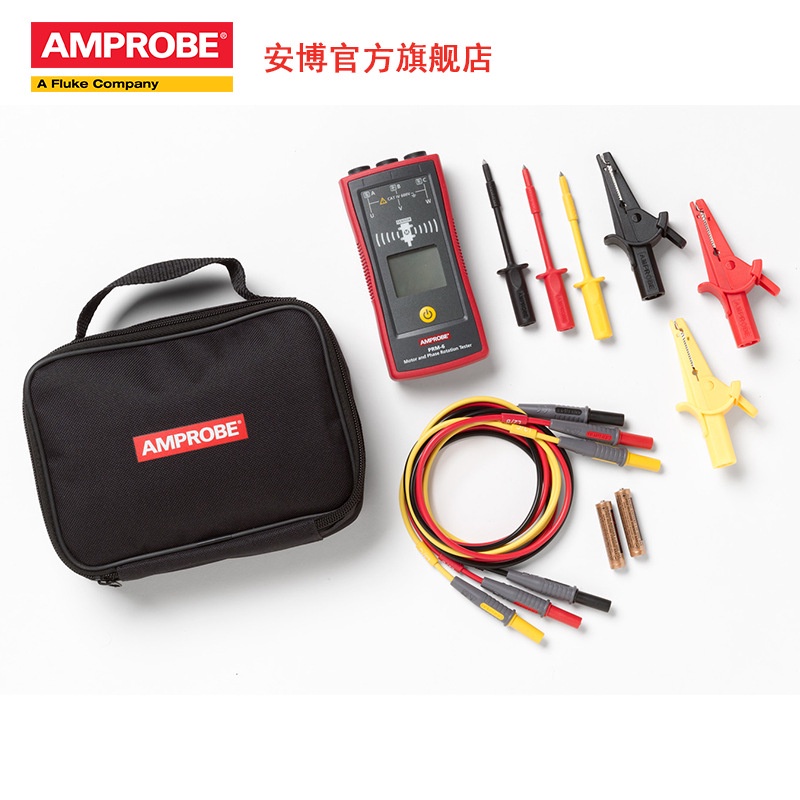

Standard accessories:

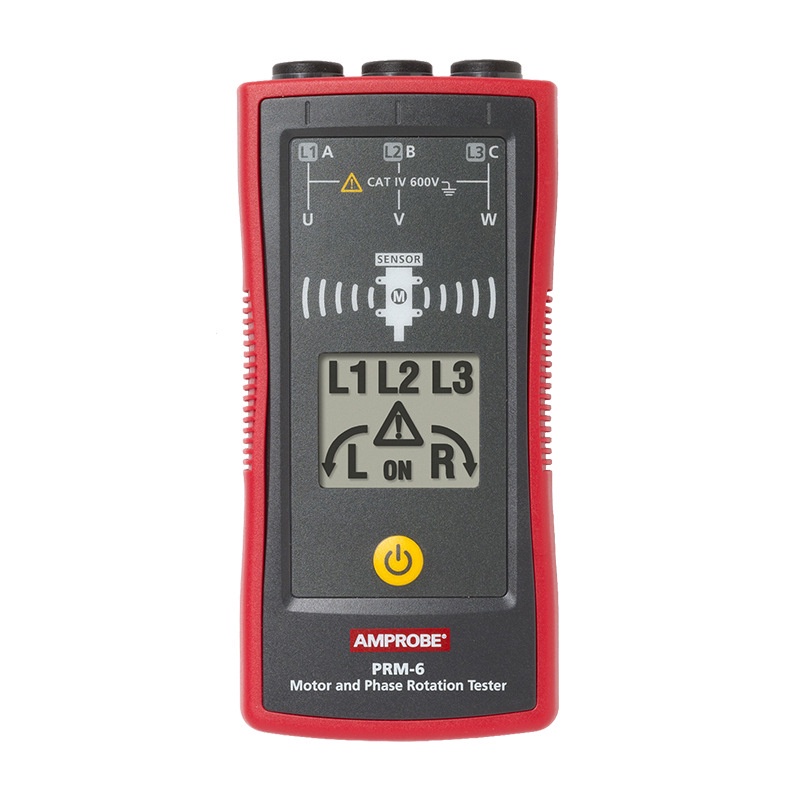

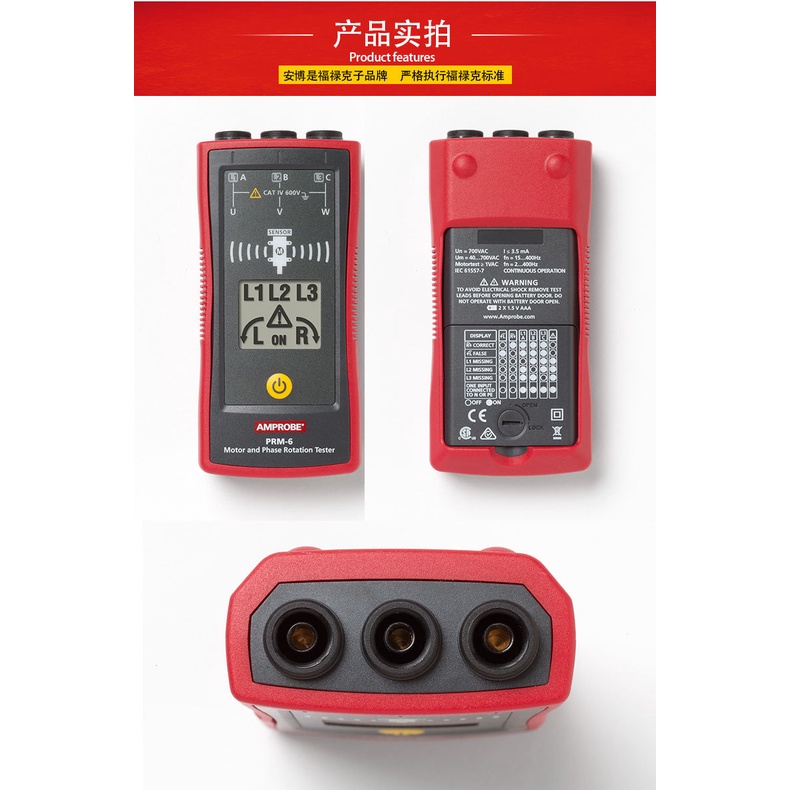

PRM-6 Multi-function Phase Sequence Meter.
Test wires (black, red, yellow).
Test probes (black, red, yellow).
Alligator clips (black, red, yellow).
1.5V AAA batteries (pre-installed).
User manual.
Carrying case.
