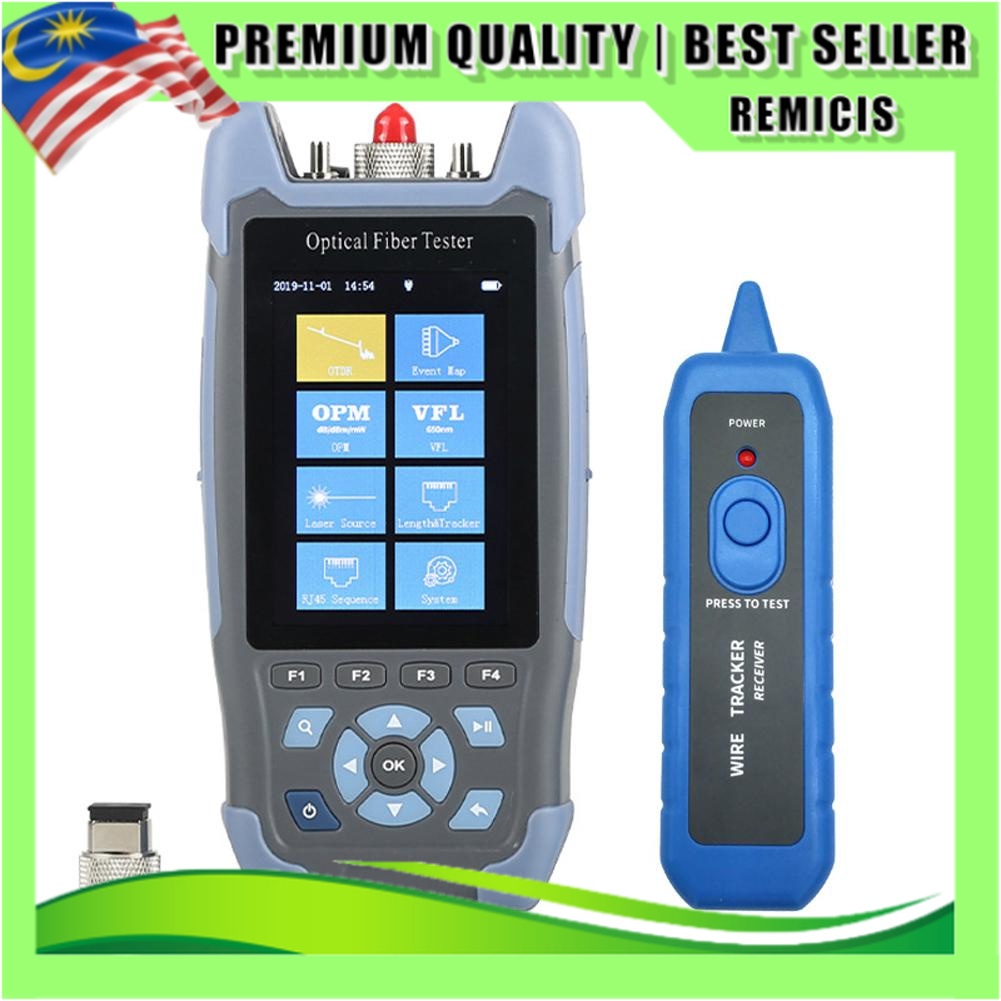

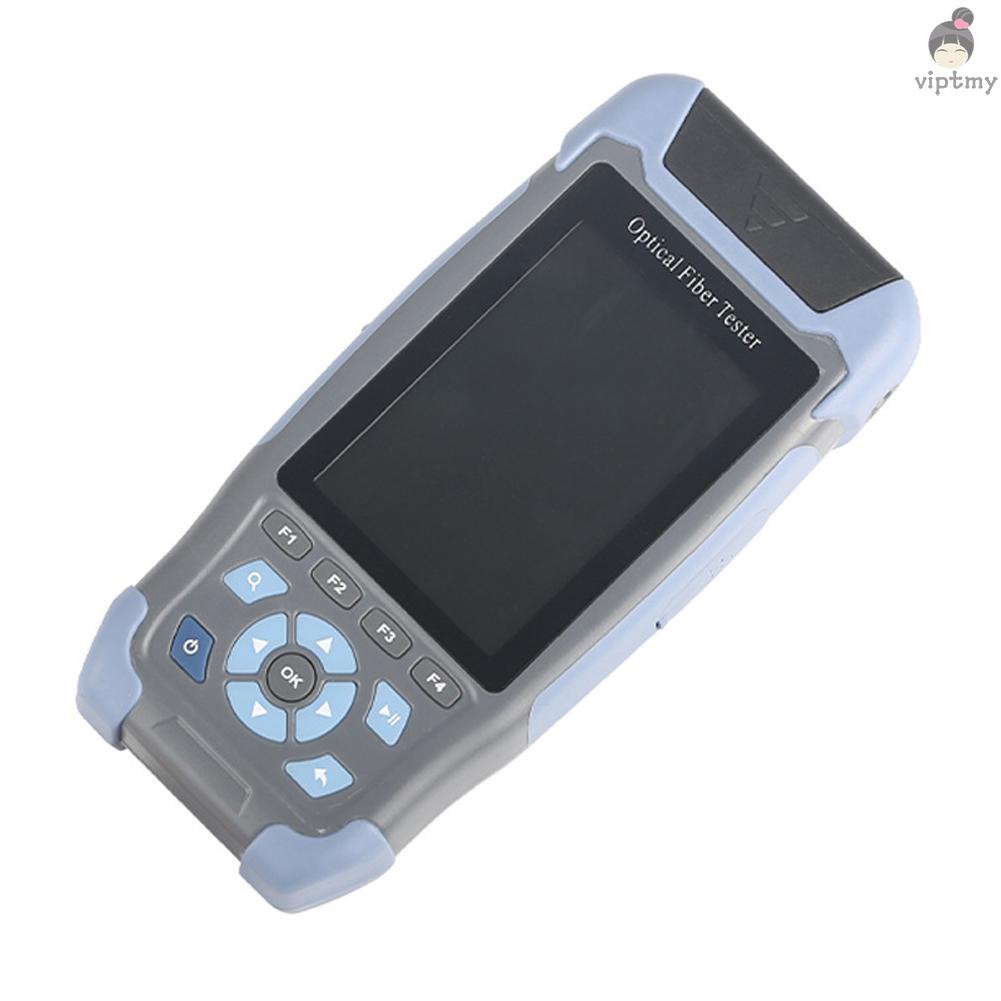

NK3200D Portable Optical Fiber Tester Mini OTDR Optical Fiber Reflectometer Optical Fiber Obstacle Finder
Optical fiber tester is mainly designed for construction and maintenance of telecommunication and CATV networks. It can be widely used in engineering construction, maintenance test and emergency repairing of all fiber optics related systems. Comparing with a regular OTDR, it is more compact in size and easier for field use.
Features:
Lightweight and portable for easy carrying.
One button operation, legible test data.
Integrated with visual fault locator system, it is easily to detect fault location.
Use the rubber button, dustproof, waterproof and quakeproof ability, suitable for field maintenance work.
Use large capacity battery, long working time, suitable for long time field working.
Suitable for engineer construction and maintenance fault location of FTTH and access network.
Specifications:
Event Blind Zone: 3.0m
ATT Blind Zone: 8m
Test Range: 500m-60km
Pulse Width: 3ns-10us
Loss Accuracy: ±0.05dB/dB
Sampling Points: 16k-128k
Sampling Resolution: 0.05m-8m
Reflection Accuracy: ±3dB

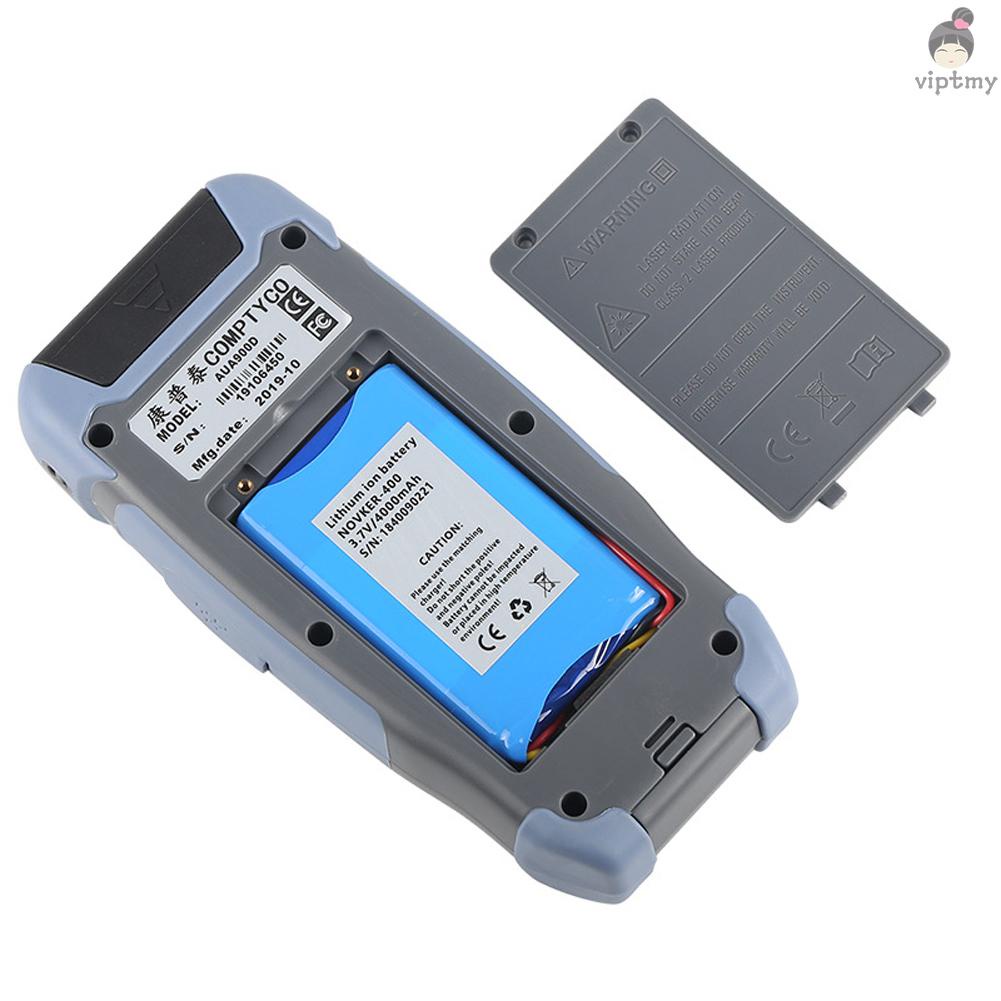

Battery: 3.7V, 4000mAh
Item size: 173 * 82 * 37mm / 6.8 * 3.2 * 1.5in
Item weight: 350g / 12.3ounce
Package size: 220 * 125 * 100mm / 8.7 * 4.9 * 3.9in
Package weight: 780g / 1.7lb
Packing List:
1 * Optical Fiber Tester
1 * Wire T-racker Receiver
1 * Storage Bag
1 * User Manual
1 * USB Cable
