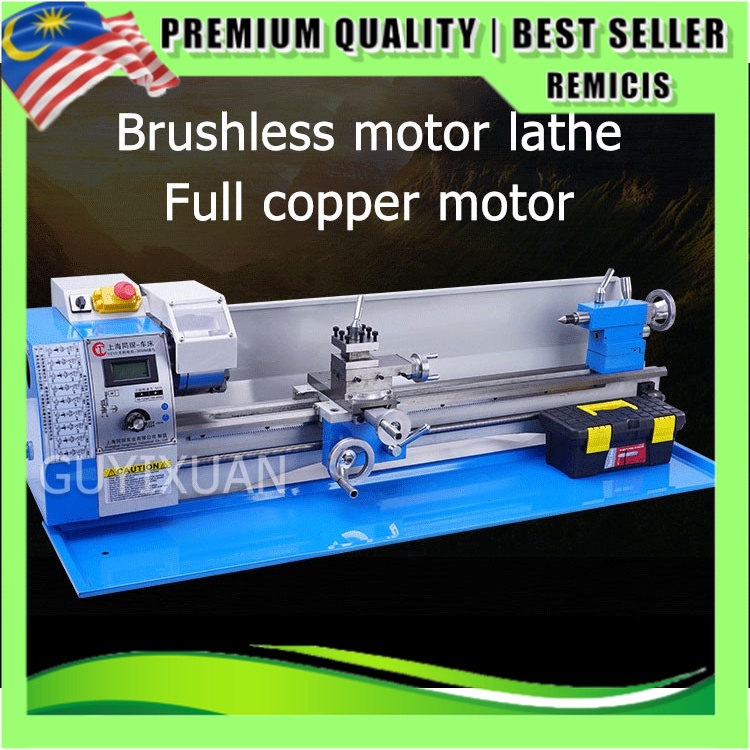

Product name: V210 small lathe
Voltage: 220V50HZ
Motor brushless 750W: equivalent to brush 1000w
Spindle through hole: 38mm
Spindle speed: 50-2500 rpm
Shift times: infinitely variable
Machine accuracy range: <10s
Tool holder rotation diameter: 100mm
Diameter of bed rotation: 180mm
Distance between two tips: 400mm
Spindle bore taper: Morse 3

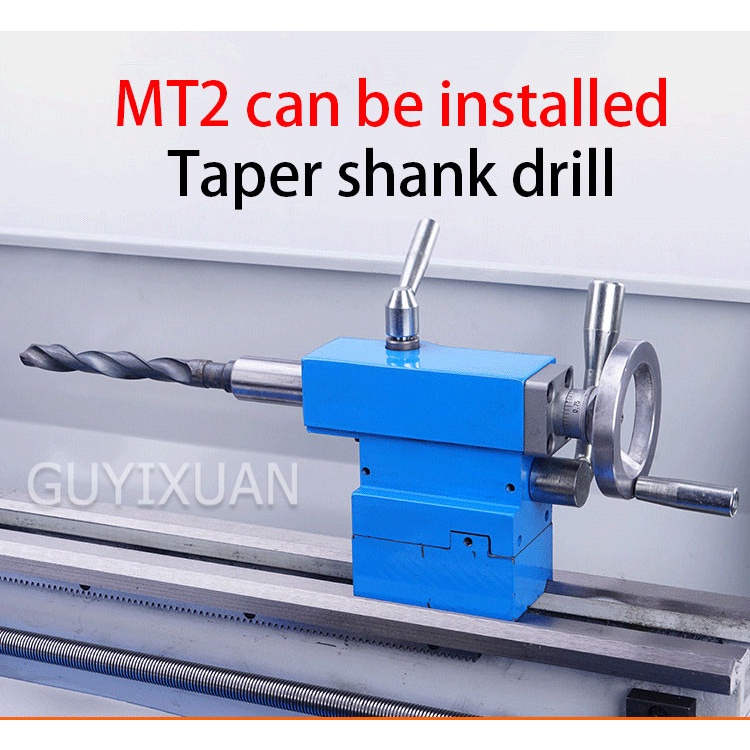

Tailstock shaft taper: Morse 2
Chuck maximum clamping: 120mm 125 chuck
Work station: four stations
Maximum stroke: 55mm
Middle pallet stroke: 75mm
Large pallet stroke: 276mm
Tailstock sleeve stroke: 60mm
Automatic feeding range: 0.1-0.2mm

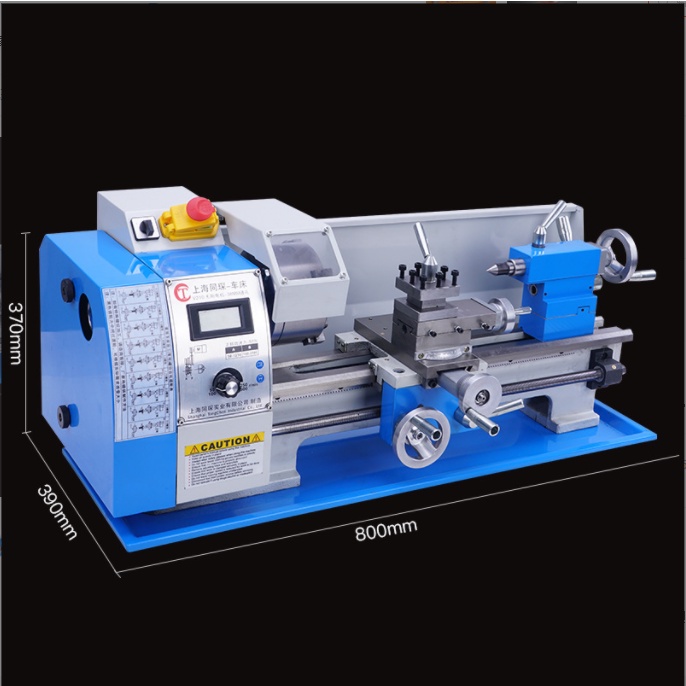

Lathe length: 800mm
Lathe width: 390mm
Lathe height: 370mm
Lathe gross weight: 75kg

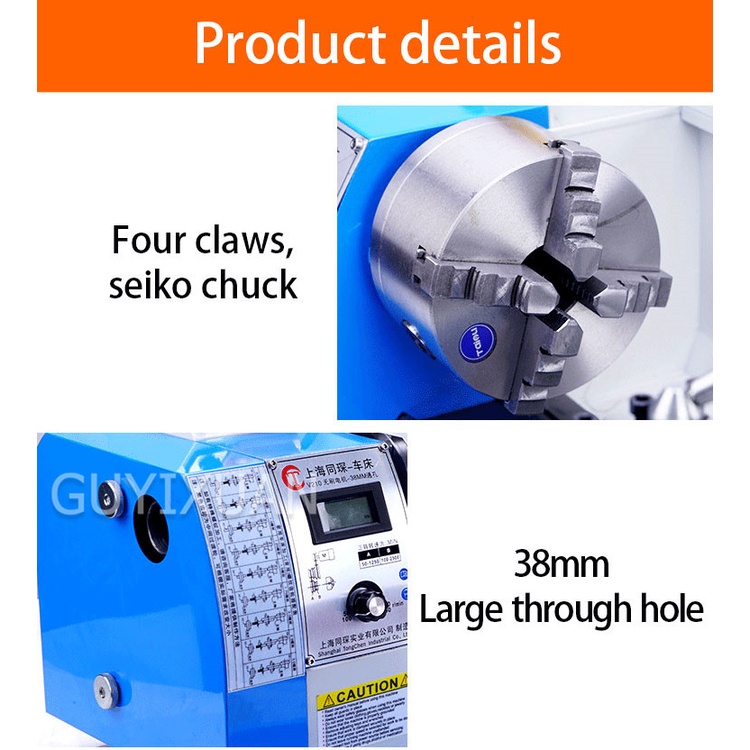

Chuck: Four-jaw chuck
Notice:
Due to different production batches, the color of the machine will change, now the color is blue, we will ship the blue to you. If you have any questions, please contact customer service. Thanks!
