High Precision Vibration Meter GM63A Handheld Digital Vibration Analyzer Device Probe Analizador De Vibraciones Vibrator Tester

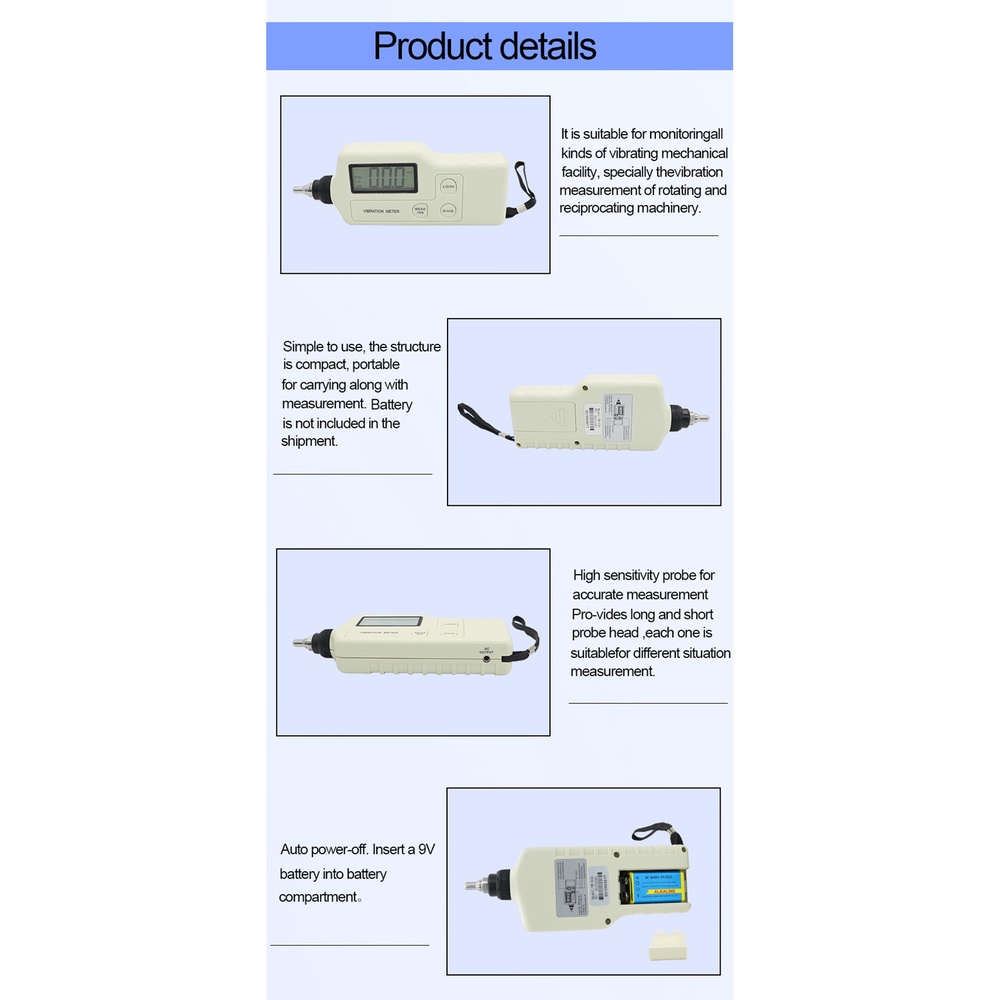

This product adopts piezoelectric effect of artificial polarized ceramic for design. It is suitable for monitoring all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc.
Features：
Vibration Meter possesses the following features:

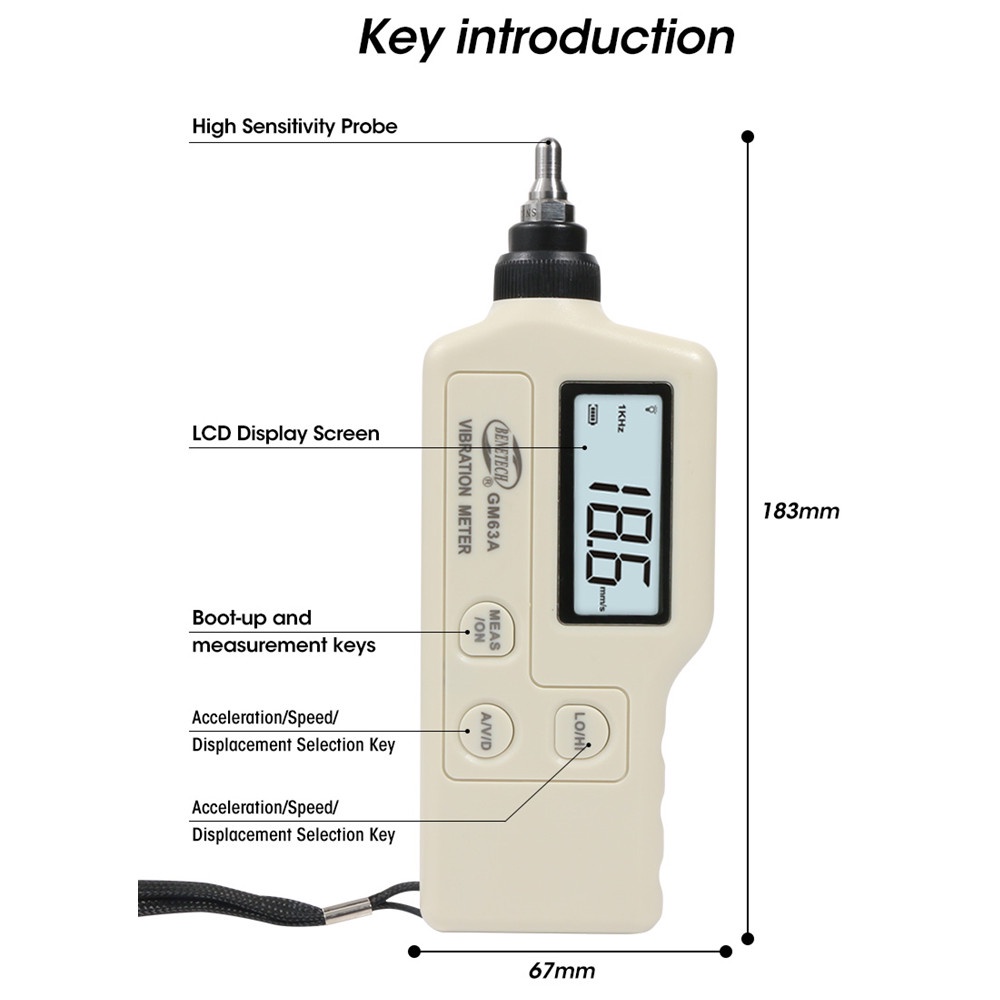

1.Simple to use, the structure is compact, portable for carrying along with measurement.
2.Visually display measurement value and state.
3.Acceleration, velocity and displacement measurement.
4.Different vibration frequency selection.

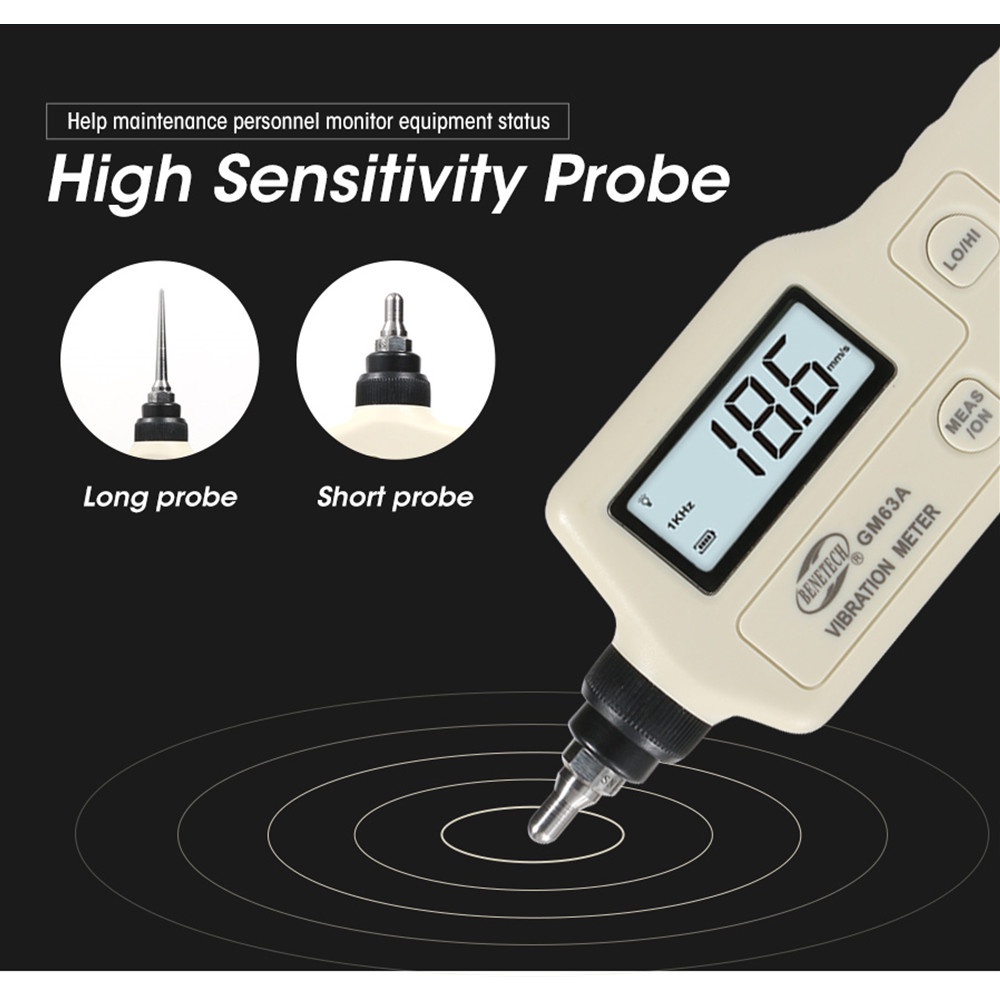

5.High sensitivity probe for accurate measurement Pro-
vides long and short probe head ,each one is suitable
for different situation measurement.
6.Equipped with AC signal output interface.
7.Low power indication.
8.Auto power-off.
9.LCD backlight.

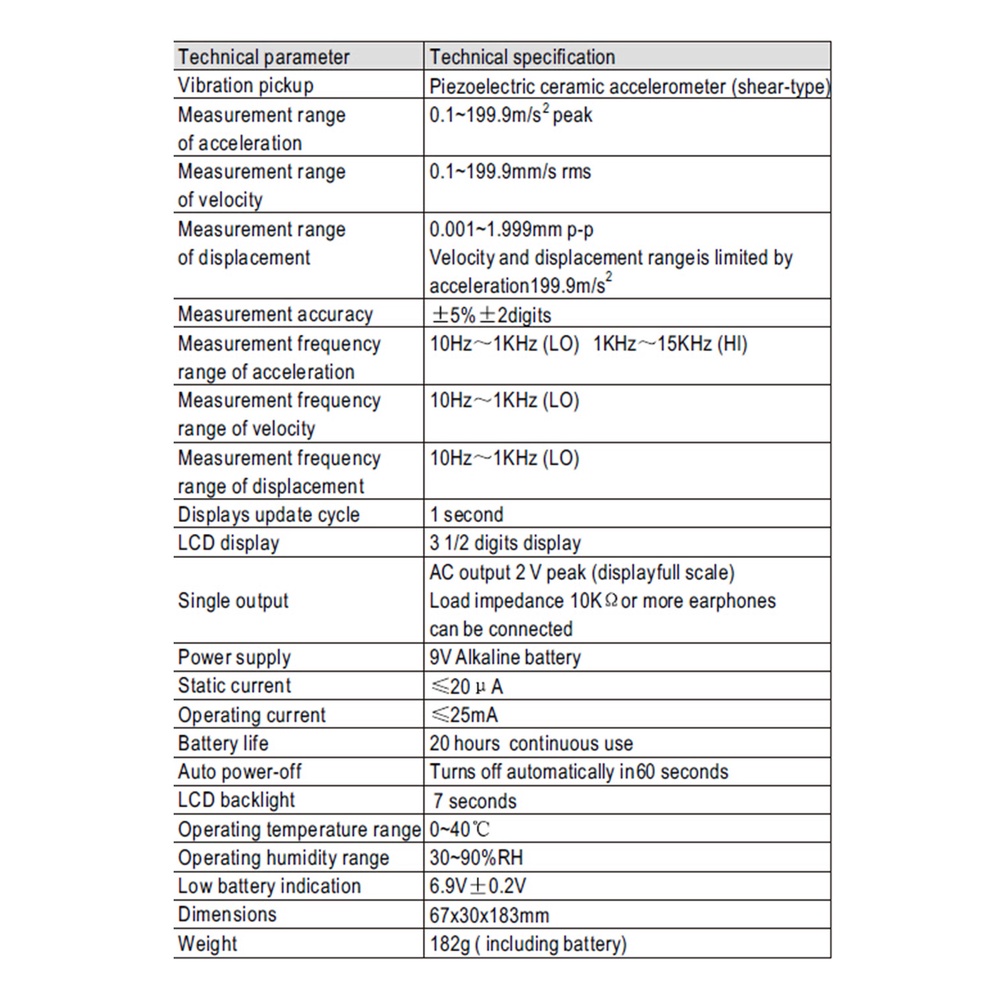

Specifications：
Vibration pickup:Piezoelectric ceramic accelerometer (shear-type)

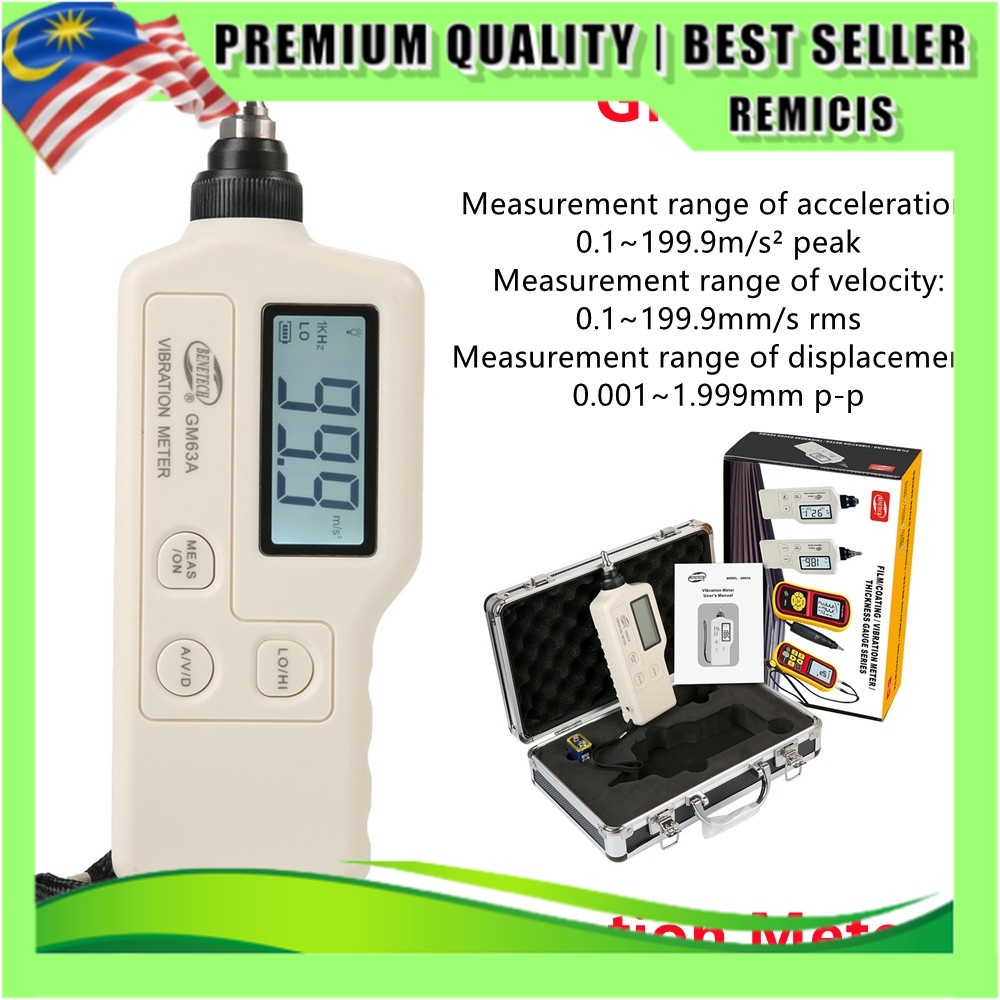

Measurement range of acceleration:0.1~199.9m/s² peak
Measurement range of velocity:0.1~199.9mm/s rms
Measurement range of displacement:0.001~1.999mm p-p
Velocity and displacement range is limited by:acceleration199.9m/s²
Measurement accuracy:±5%±2digits
Measurement frequency range of acceleration:10Hz～1KHz (LO) 1KHz～15KHz (HI)
Measurement frequency range of velocity:10Hz～1KHz (LO)
Measurement frequency range of displacement:10Hz～1KHz (LO)
Displays update cycle:1 second
LCD display:3 1/2 digits display
Single output:AC output 2 V peak (display full scale) Load impedance 10KΩ or more earphones:can be connected
Power supply:9V Alkaline battery
Static current:≤20μA
Operating current:≤25mA
Battery life:20 hours continuous use
Auto power-off:Turns off automatically in 60 seconds
LCD backlight:7 seconds
Operating temperature range:0~40℃
Operating humidity range:30~90%RH
Low battery indication:6.9V±0.2V
Dimensions:67x30x183mm
Weight:182g ( including battery)

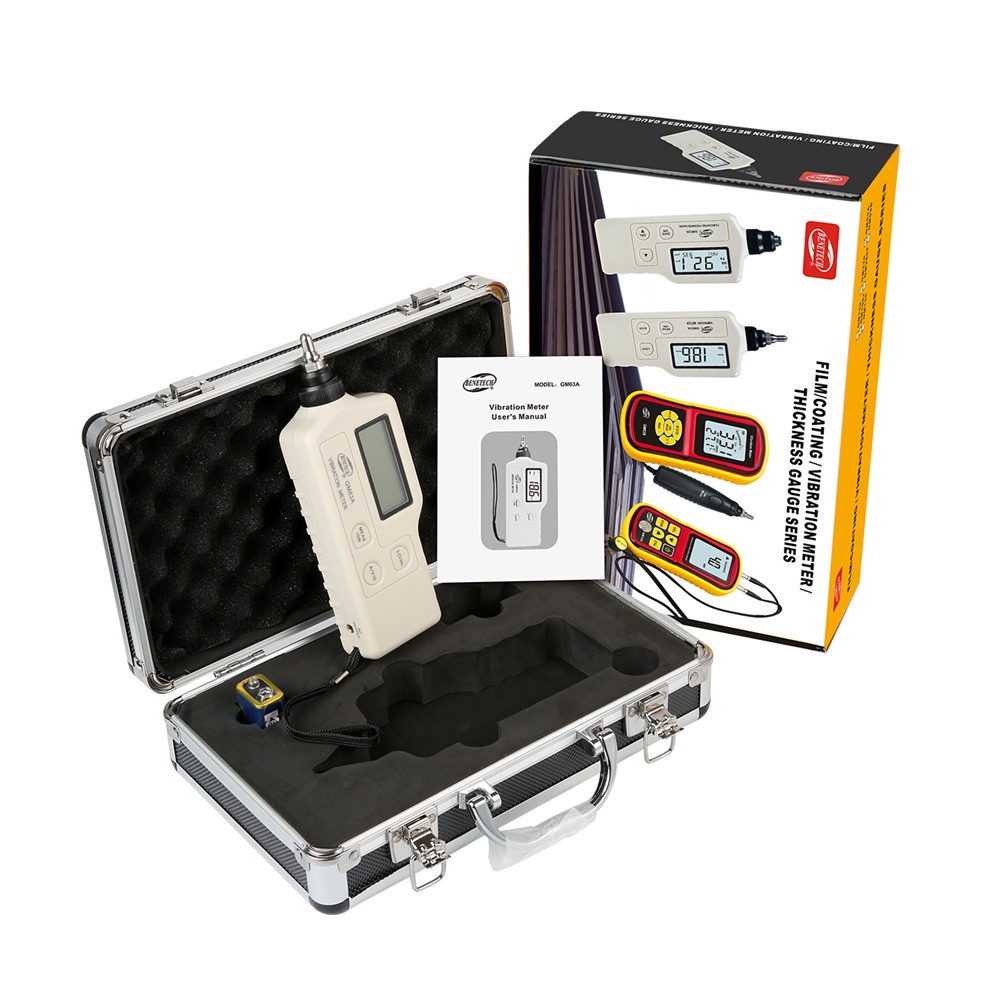

Packing List:
Color box*1
Aluminum box*1
Instructions*1
Host Vibration Meter GM63A*1
*Battery not included.
