Product parameters
Product Name: Multi-function digital display hot stamping
Model: JXY-SD160B
Temperature control range: 0-400 ° C
Temperature control deviation value: 0-5 ° C

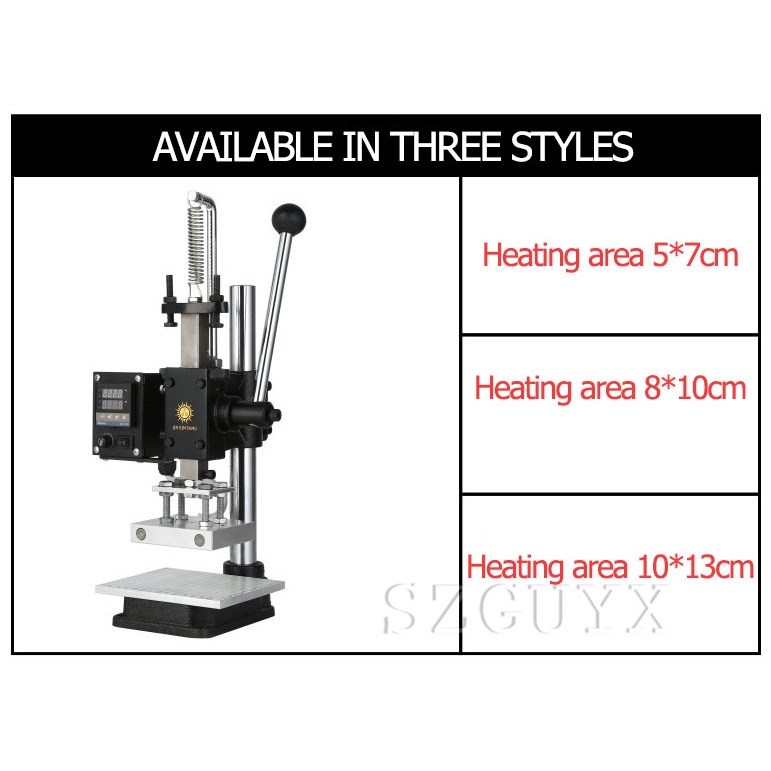

Optional heating area and corresponding power:
5*7cm: 300w
8*10cm: 460w
10*13cm: 500w
Optional voltage: 220v and 110v
Machine volume: about 23*23*46cm
Optional plug: China / American / British / European
Effective size: 130 (mm)
Roller diameter: 180 (mm)
Working length: 180 (mm)
Motor power: 0.5 (kw)
Weight: 10 (kg)

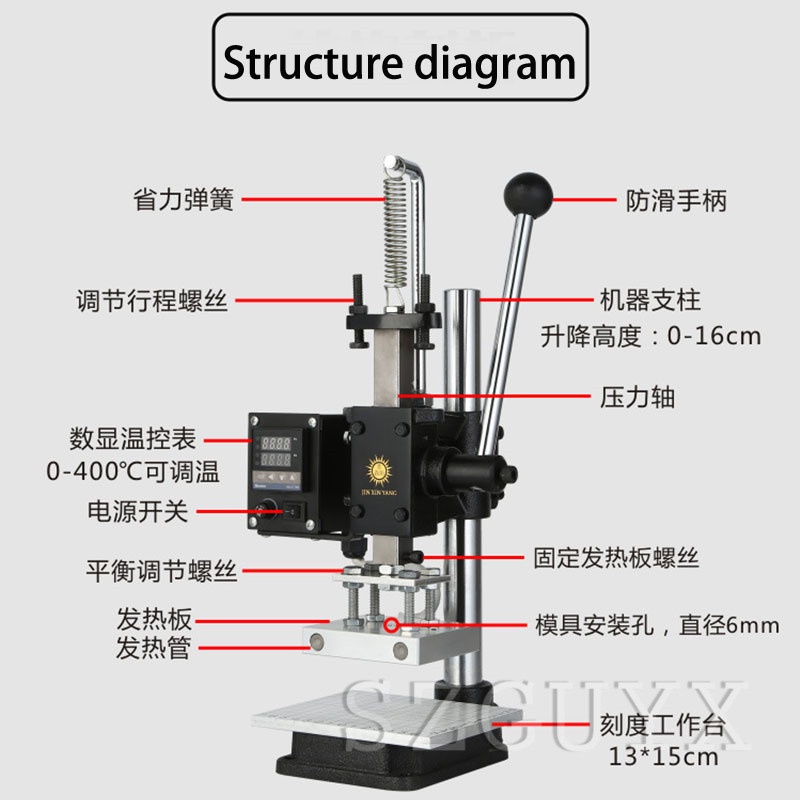

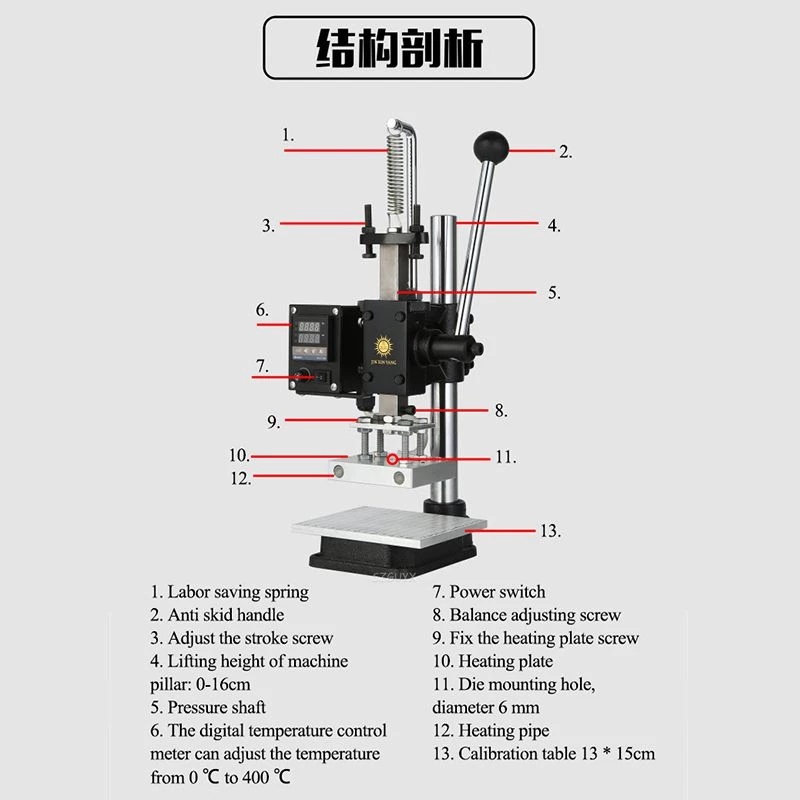

Product structure information:
Labor saving spring
2. Adjust the stroke screw
3. Digital display temperature control table, 0-400 °C temperature adjustable
4. Power switch
5. Balance adjustment screw
6. Heating plate
7. Heat pipe
8. Non-slip handle
9. Machine pillar, lifting height: 0-16cm
10. Pressure shaft
11. Fixed heating plate screws

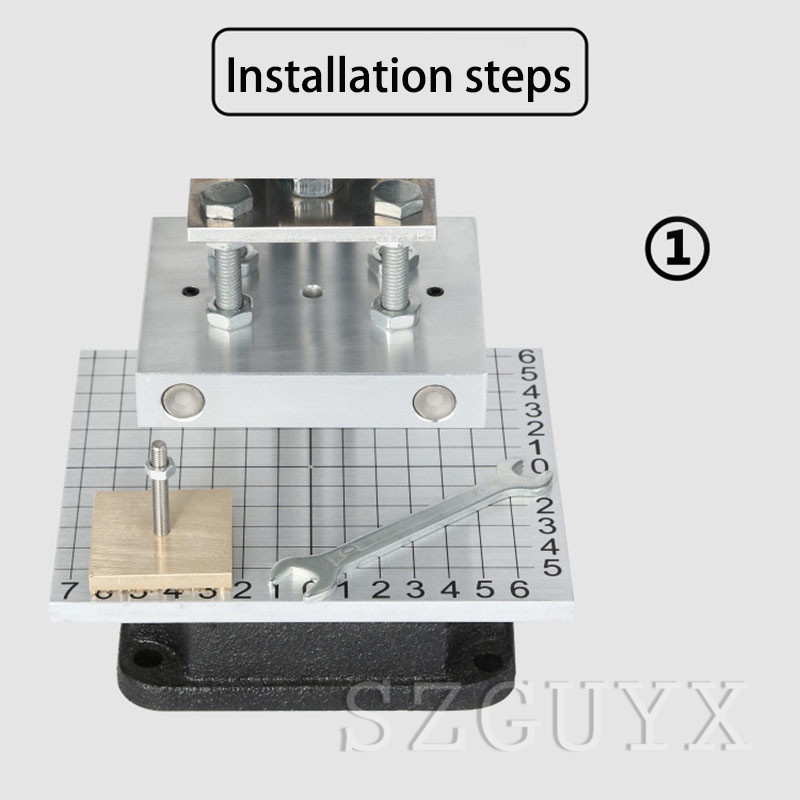

12. Mold mounting hole, diameter 6mm
13. Scale table 13*15cm

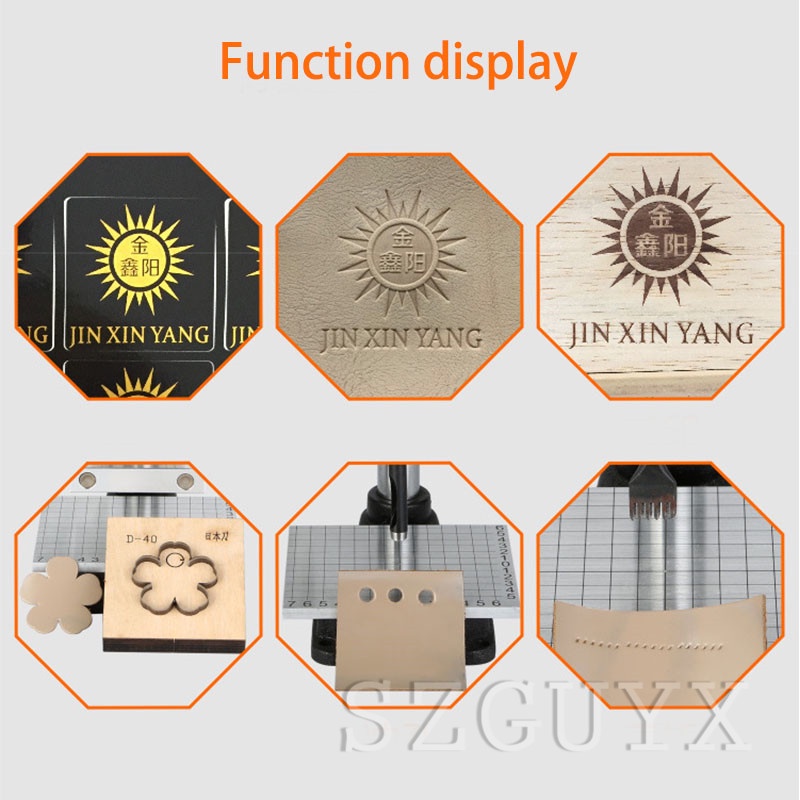

Applicable materials:
Suitable materials for bronzing: leather, PU, paper, coated paper and other materials with flat and smooth surfaces
Hot pressing, branding suitable materials: leather, PU, paper, wood, cloth, bamboo leaves, bamboo, PVC... etc.
Material requirements:
Material thickness: must be less than 16cm, if it is greater than 16cm, you need to customize the pillar before you can use it
Material length and width: If the width is about 18cm, it cannot be printed in the middle of the material, only the upper or lower part
The material must be flat, not suitable for curved or sloped materials
Punching and cutting: The thickness of the material must be less than 5 mm, and it is too thick to be penetrated
Hot stamping techniques:
Hot stamping material is relatively thin paper or leather, put a book or silicone pad under the material to increase cushioning
It is recommended to choose a better bronzing paper, which has good stickiness and strong adhesion.
The size of the bronzing logo mold should not be too large, or the convex area is too much
