The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation; speed control adopts PWM automatic voltage and speed regulationcircuit, driven by DC servo motor, with great output torque and the operating is stable.
It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load. Also thisseries of welding machine is stable in performance despite of external temperature and voltage variation.
TECHNICAL SPECIFICATION
Model No.: LC3000A
Rated Voltage: 230V
Rated Power: 1200W
Frequency: 50-60HZ
Temperature Range: 20-500℃
Working Speed: 0-8m/min
Welding Thickness: 0.2-4 mm
Welding Width: 2-4 cm
Temperature Fluctuation: ±5℃
Advantages
1. Equipped good quality heater.
2. DC fan, uniform wind, good welding effect, long fan life.
3. Advanced PID control technology, temperature fluctuation is within 5 degrees.
4. High performance switching power supply, good electromagnetic compatibility, more reliable quality.
5. LED display screen show SET and actual temperature clearly.
Functions
Overlap Welding, Edge Welding and Rope in Hemming

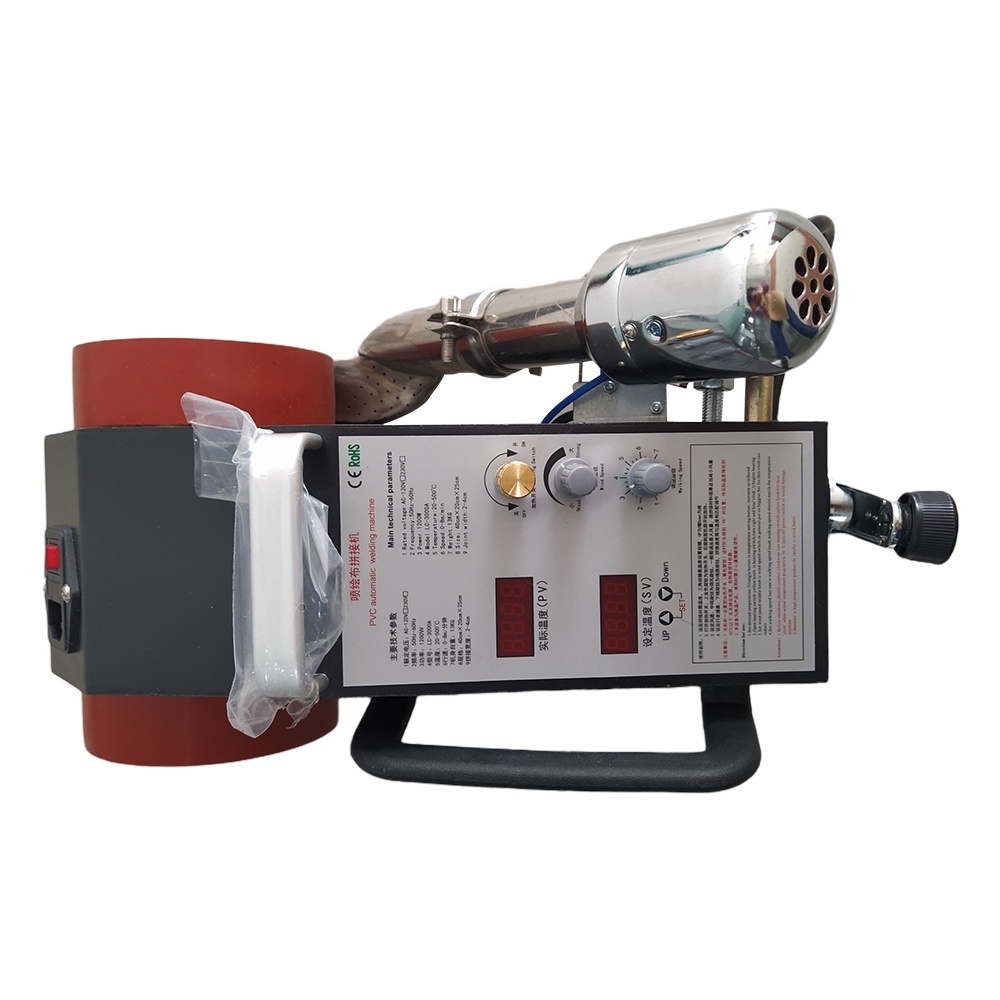

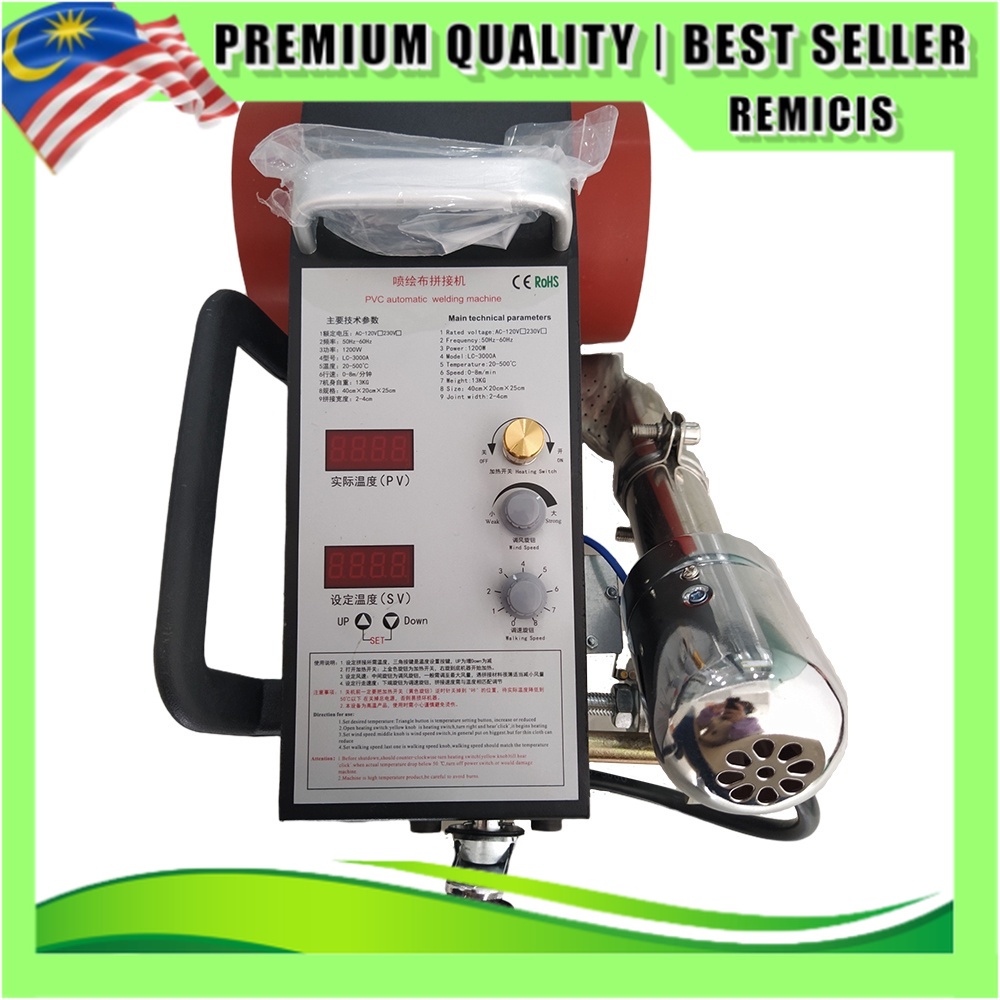

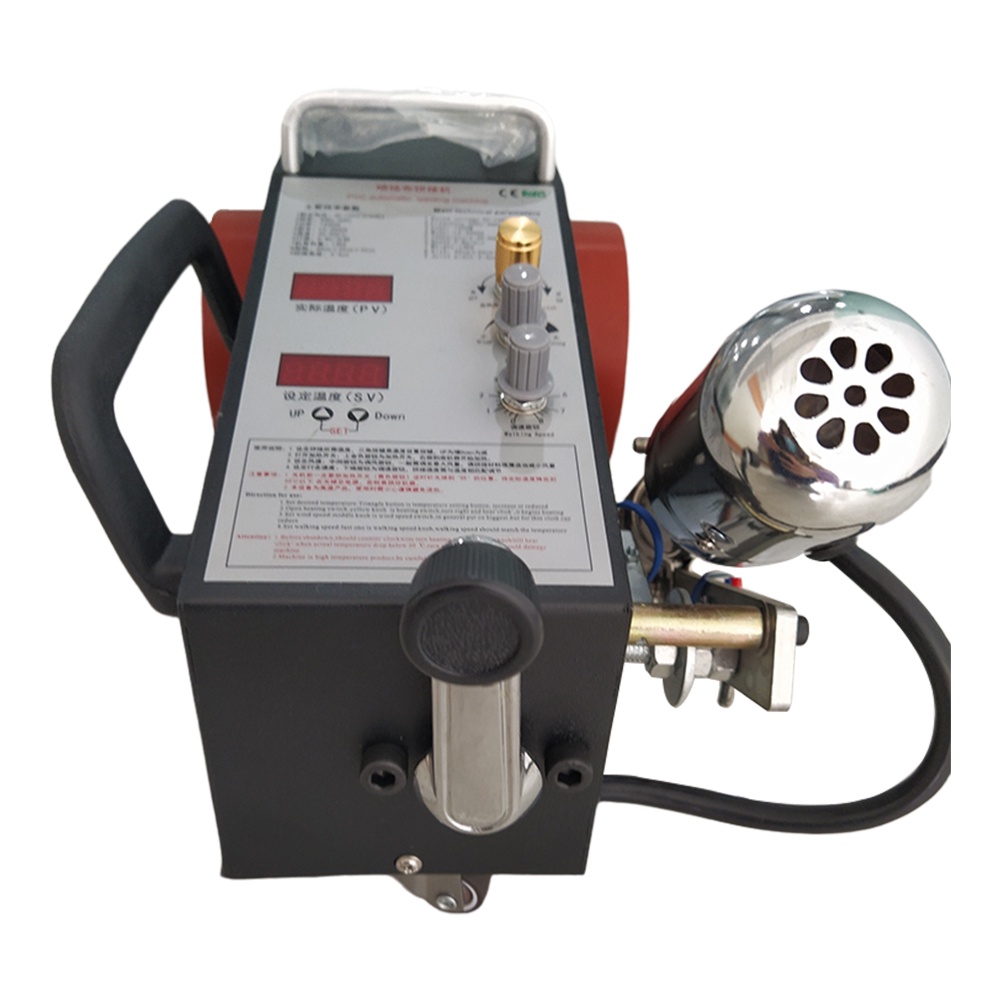

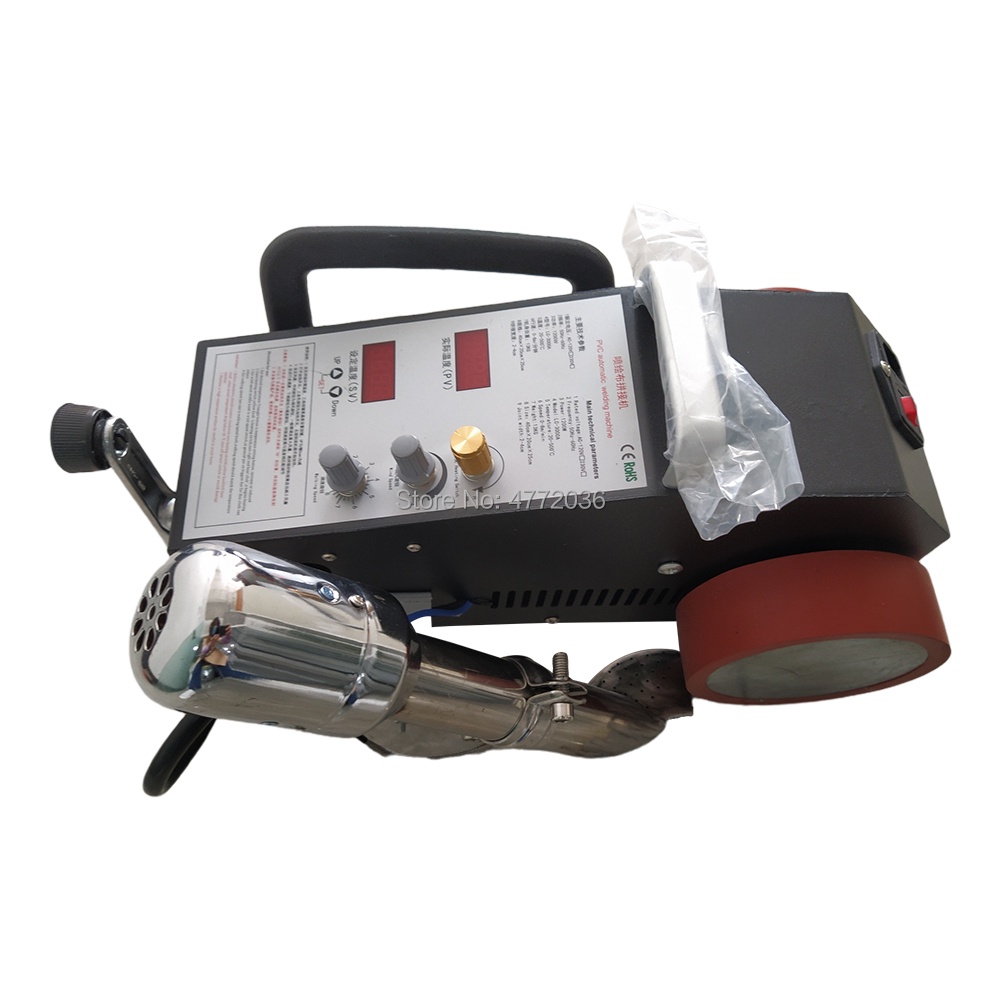

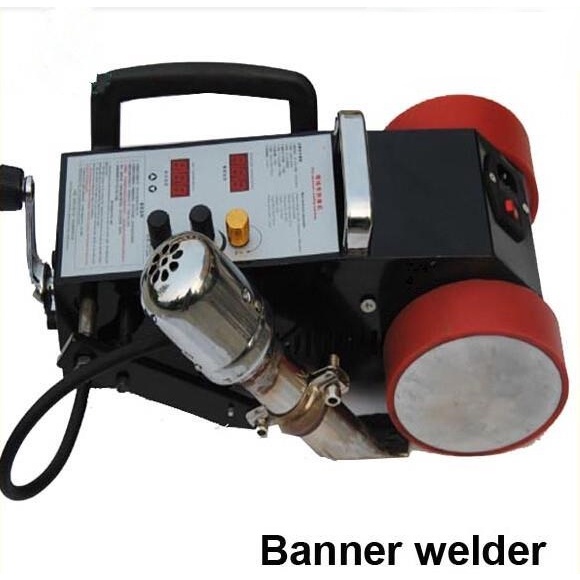

LC3000A Brand Portable Hot Air Welding Machine can do both overlap welding and edge welding, also it is suitable for welding the rope in hemming.
Material for Welding
Tent, tarpaulin, membrane, coated banner, flex banner, gridding cloth, etc. (contain PVC material and PVC coating material, e.g. PVC, PE, DHPE, LDPE, EVA, Pp and other hot-melt coating film material.)
