Features

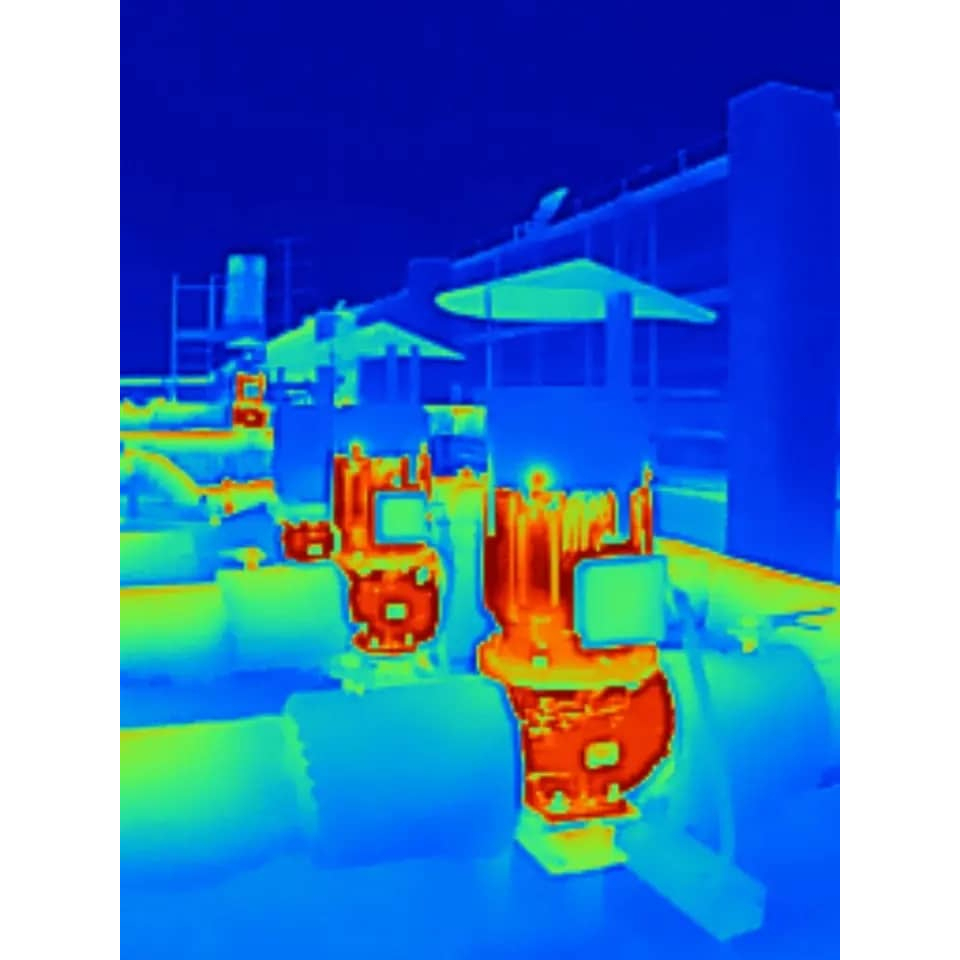

* Taking IR pictures and edit, sharing
* Taking IR video and sharing
* Non contact temperature measurement up to 550 ℃
* Field monitoring

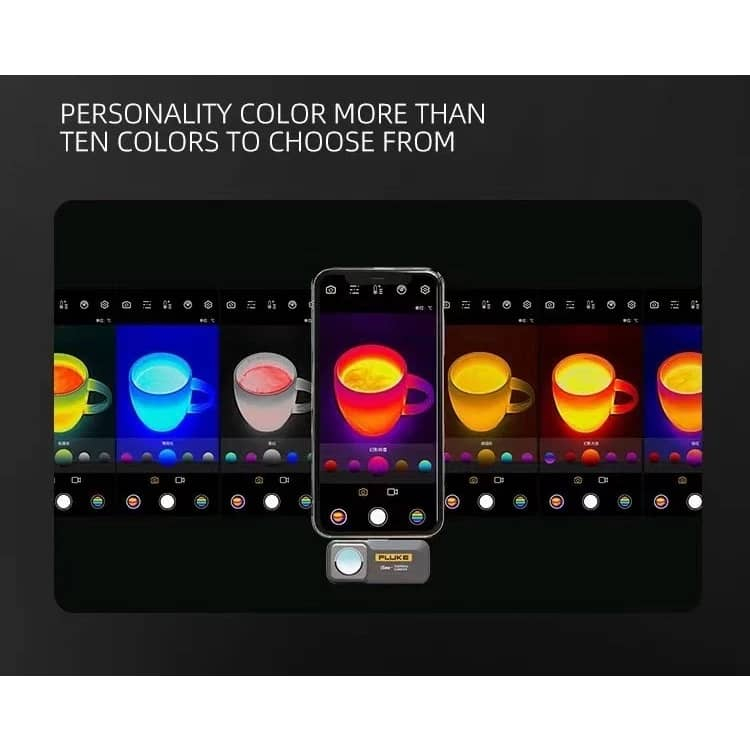

* Customized palette
* Palette definition importing and exporting
* Dot, line, and zone temperature analyzing
* Alarm for the area over preset temperature range
* Analyze dot, line, and zone temperature.
* Alarm for the area over or below preset temperature range.
* Infrared report generation for one or several infrared pictures.
Specifications
Function TC01A TC01B

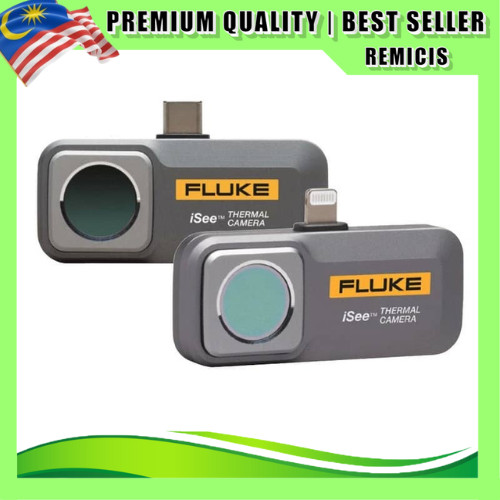

USB Port Type C IOS
Operating Temperature: 0℃ ~ 40 ℃
Storage Temperature: -30 ℃ ~ 60 ℃
Operating Humidity: 10% ~ 90% RH，Non condensing
Power Consumption: 350 mW (Typical). 200 mW (Typical)

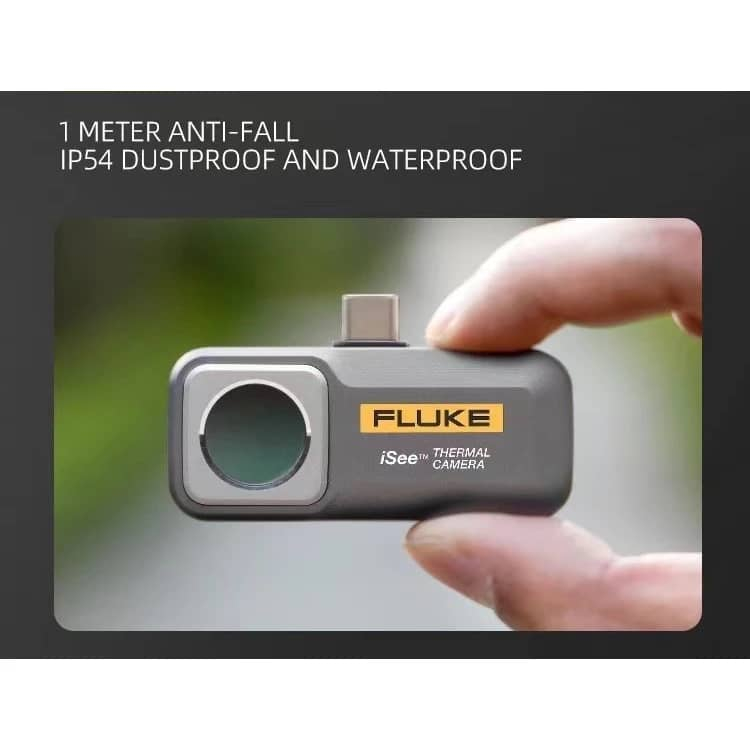

Ingress Protection (IP) Rating: IEC 60529: IP54 (Type-C covered). IEC 60529: IP56
Operating Altitude: 2000 m
Storage Altitude: 12000 m
Size (L x W x H) : 59x32x10 mm. 60 x 33.5 x 11.2 mm
Weight: 22 g
Optical Performance
Image Resolution: 256 x 192
Pixel Size: 12 µm
Measuring Range: -20 °C to 150 °C, 100 °C to 550 °C
Accuracy: ± 2% of reading / ±2 °C, whichever is greater (at 23 ±5 °C ambient)
Distance: 0.25 m to 5 m [1]
Frame Rate: 25 Hz
Warm Up: 1 minute
Focus Fixed: 3.2 mm
Nonuniformity correction (NUC): Auto or manual
NETD: 50 mK
Spectral Range: 8 to 14 µm
Field of View (H x V) : 56° x 42°
Spatial Resolution (IFOV): 3.81 mrad
[1] -20 °C to 10 °C applicable only for 0.25 m to 3 m.
