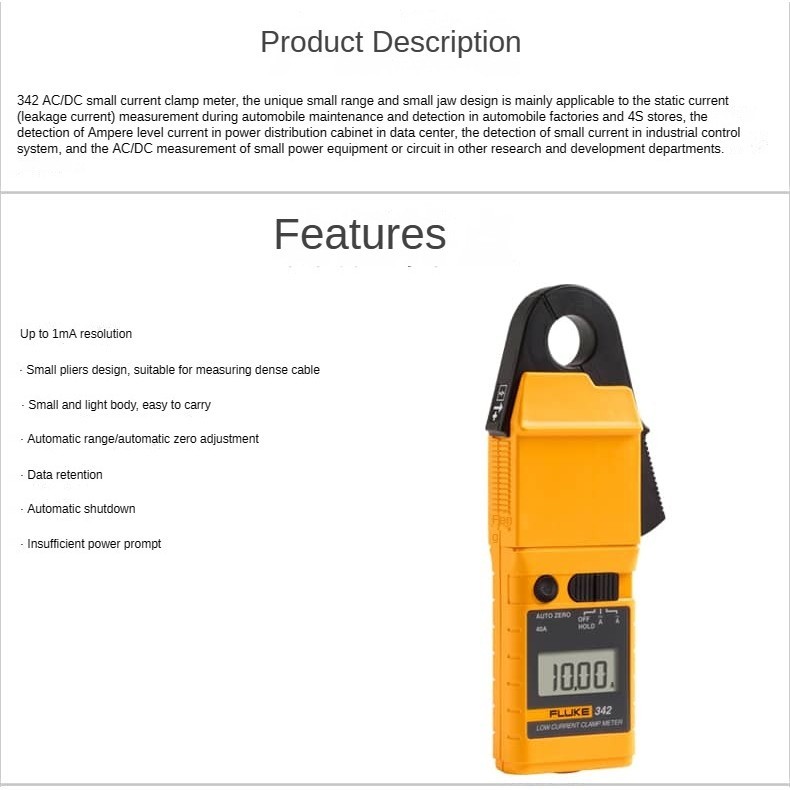

Features:

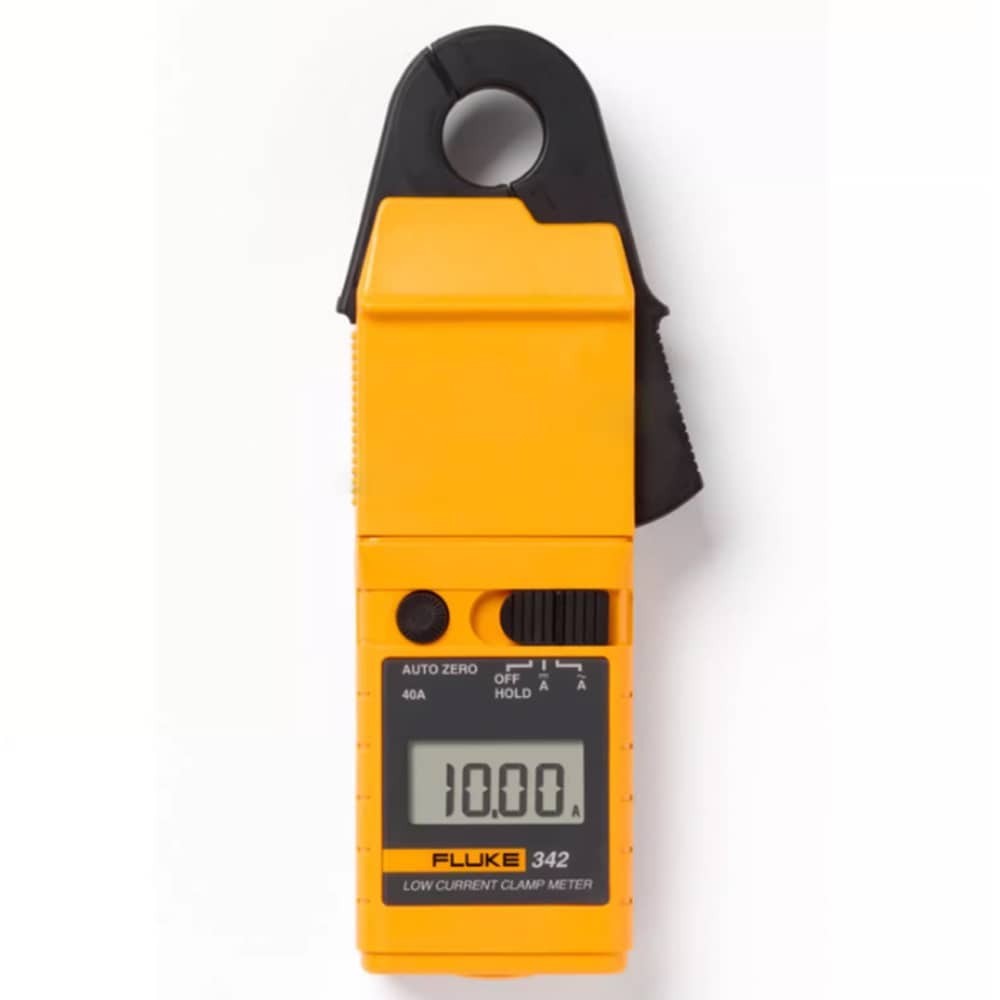

The Fluke 342 Low Current Clamp Meter (the Product) is designed for
Reliable and accurate non-intrusive measurement of dc and ac currents.
Measurement features include:
• Non - intrusive ac and dc current measurement
• 1 mA resolution
• Regular responding
• Autoranging / Autozeroing
• Data Hold
• Low battery indicator
• Auto Power Off

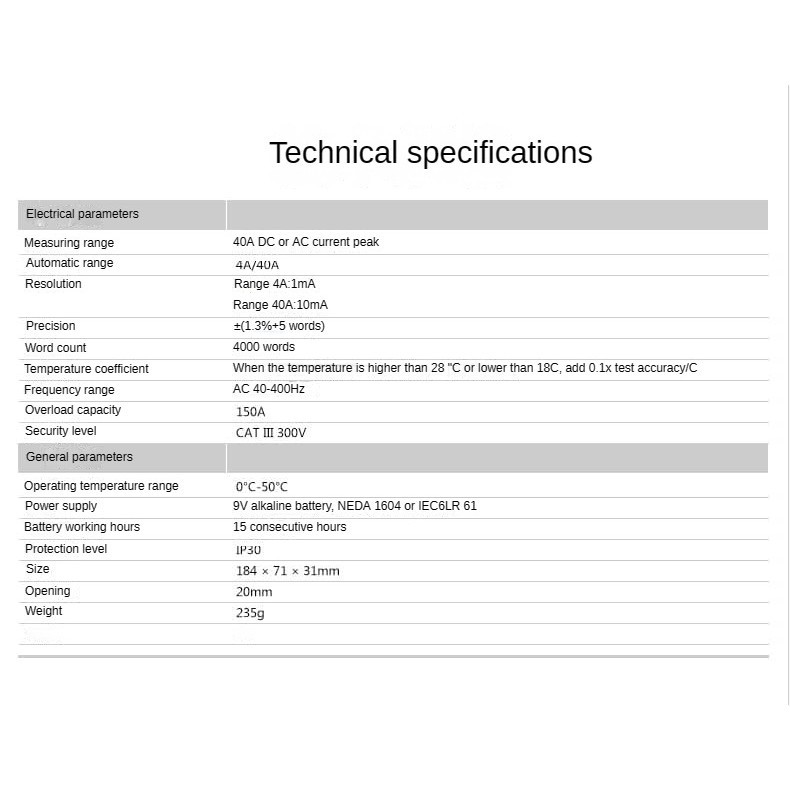

Specification:
Electrical parameters
Measuring range:40A dc or ac current peak
Automatic range:4A/40A
resolution ratio:
range4A:1mA
range40A:10mA
precision:±(1.3%+5words)
display words:4000 words
temperature coefficient
Temperature is higher than 28 ° C or below 18 ° C,
the additional 0.1 x test precision / ° C
Frequency range:Alternating current 40-400Hz
Overload capacity:150A
Security level:CAT III 300V
General parameters
operating temperature range (OTR):0°C-50°C

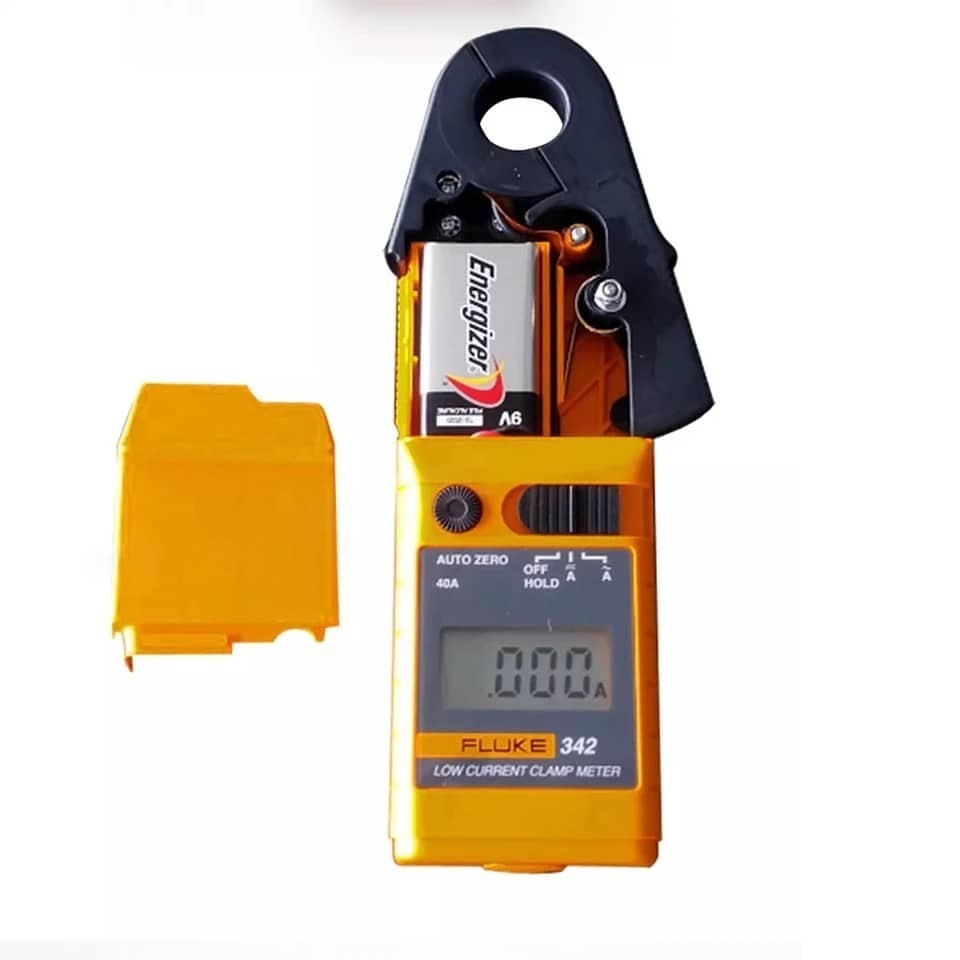

power supply:9V alkaline battery, NEDA 1604 or IEC 6LR61
Battery life:15 hours in a row
level of protection:IP30
size:184 × 71 × 31mm
Jaw opening Angle:20mm
weight:235g
