Line Finder Probe Features:

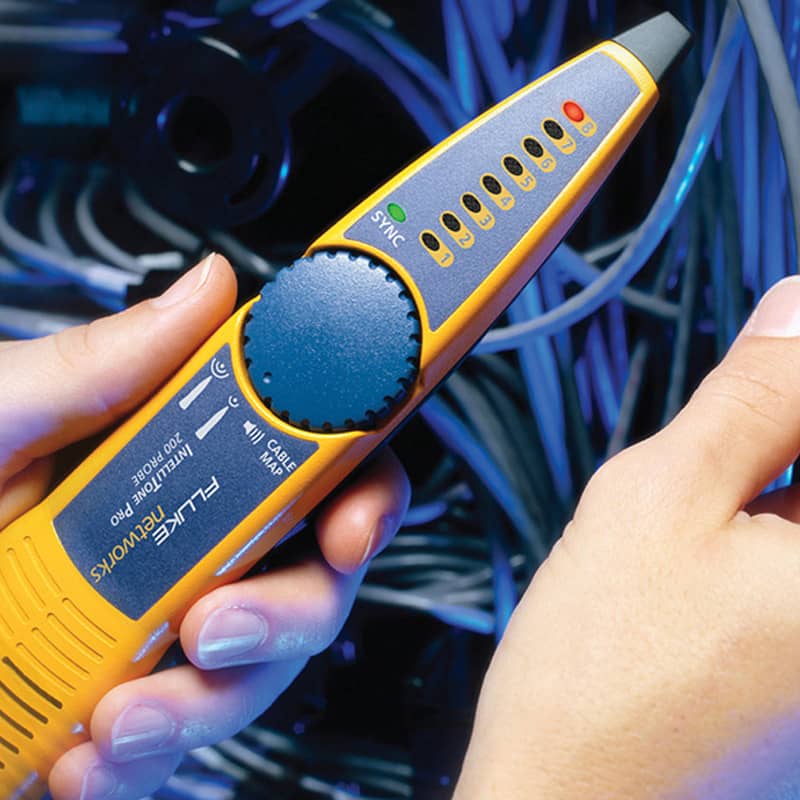

Multi-level LED simplifies signal interpretation in noisy environments and allows intuitive wiring diagram testing.
SYNC feature detects IntellTone signal and displays battery status upon powering on.
Digital detection mode enables remote cable location.

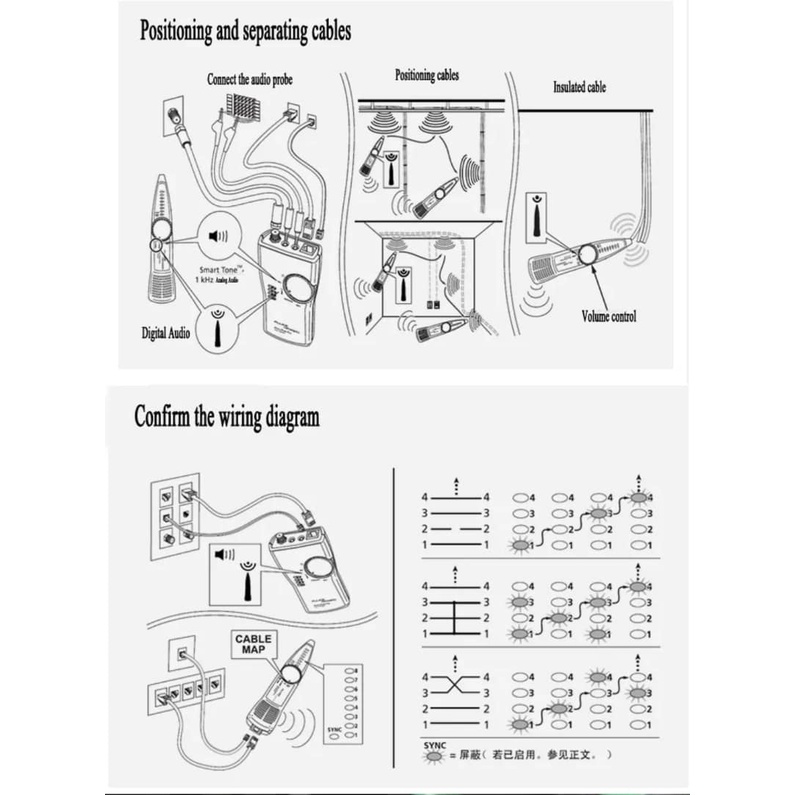

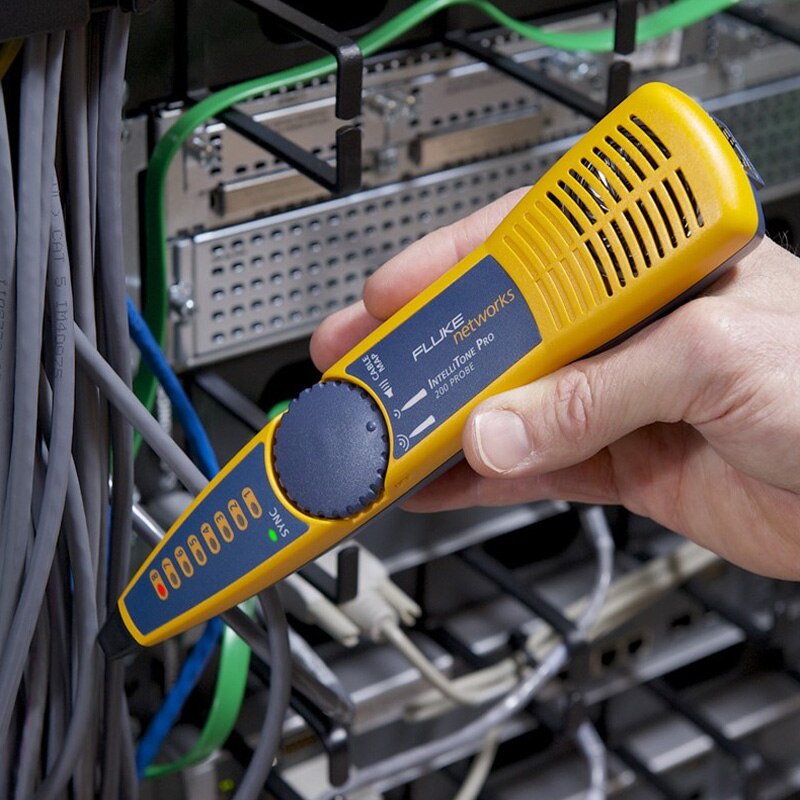

Digital detection mode can isolate cables within harnesses or distribution boards.
Analog mode uses SmartTone to isolate each pair.
Test cable connectivity without needing additional diagnostic tools.
Time-saving thumbwheel selects tuning mode on the probe, eliminating the need for an audio generator.
Combined plug and pair meter function negate the requirement for other wiring tools.
Specifications:
General Specifications:
Working Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to +140°F (-20°C to +60°C)
Operating Relative Humidity: 95% (50°F to 95°F; 10°C to 35°C), 75% (95°F to 104°F; 35°C to 40°C)
Vibration: Random, 2g, 5Hz-500Hz
Drop Test: 1m
Security: EN 61,010-1 Category, None
Altitude: 3000m
EMC: EN 61326-1, FCC Part B 15
Battery Type: 9V alkaline (NEDA1604A or IEC6LR61), 20 universal time
Defects Liability Period: 1 year

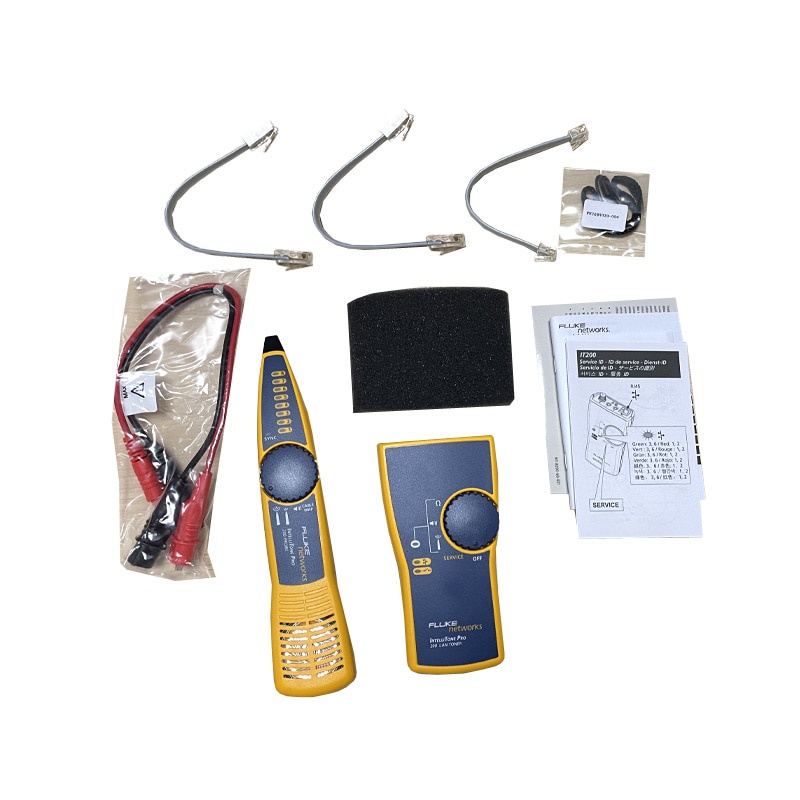

Included Components: Audio generator and 200 probe, coaxial cable F connection adapter, RJ11 and RJ45 jumper test lead lanyard with alligator clip, quick start guide, 9V battery
Application: Copper cable medium includes 75 or 50 ohm efficiency female coaxial cable; Double conductor control, security and generic cabling. 10Base-T or 10/100 or Base-T data communication network. UTP supports shielded twisted pair in the linetable function of IntelliTone200

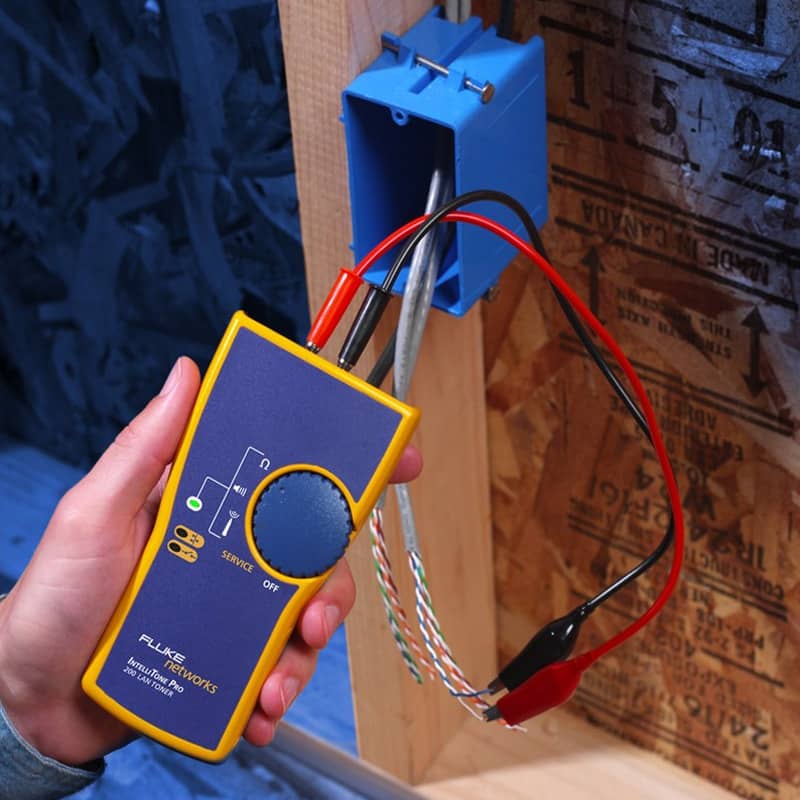

Audio Generator Specifications:
Volume: 5.54" x 2.94" x 1.25" (14.1 cm x 7.5 cm x 3.2 cm)
Display: LED
Control: Roller switch

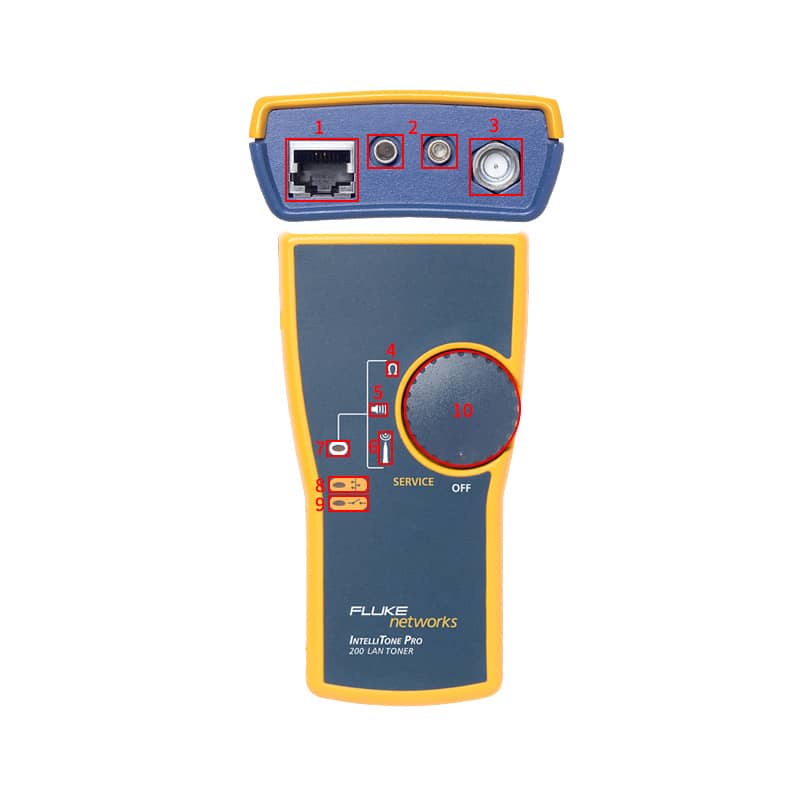

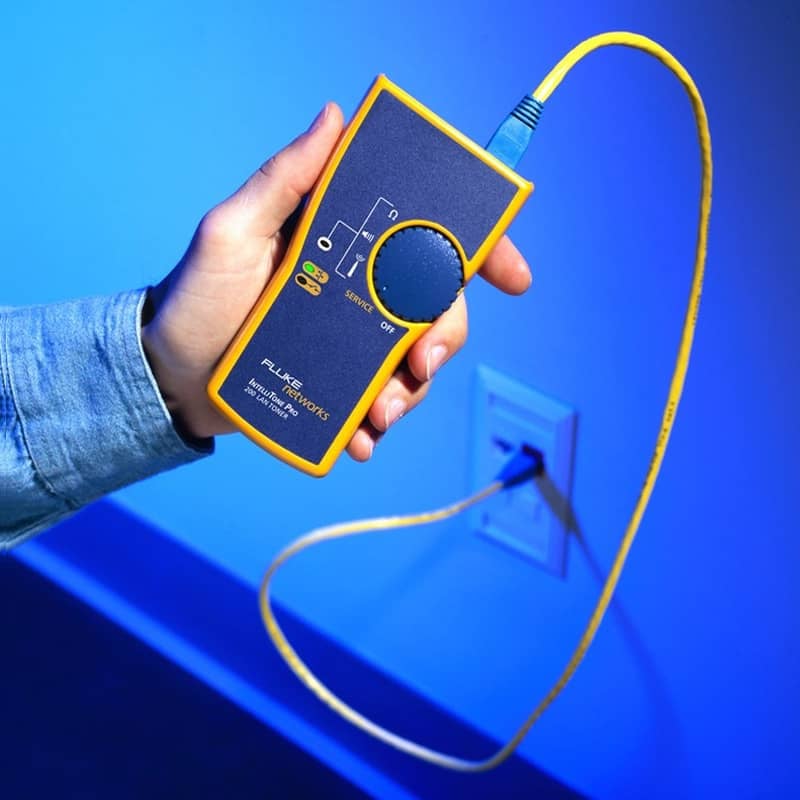

Interface: Main Mod8 port for tone generation of all 4-pair UTP/STP cables, F connector for coaxial cable, banana socket (2) for double conductor wiring
Frequency: IntelliTone signal (coded digital signal), analog SmartTone signal (500-1200Hz, 4 settings)
Output Power: 5V positive-negative peak-to-peak value
Automatic Shutdown: After 2 hours of inactivity
Probe Specifications:
Volume: 8.73" x 1.88" x 1.26" (22.2 cm x 4.8 cm x 3 cm)
Display: (8) LED indicators, synchronous LED indicator
Audio Frequency: IntelliTone (Microprocessor-controlled audio file simulation), SmartTone (500-1200Hz) for positioning and line-to-line meter function
Control: Roller switch, volume control wheel
Tone Detection: Detects IntelliTone digital signal for positioning, isolation, and analog SmartTone signal (500-1200Hz) detection
Interface: Main Mod8 port for alignment table of all 4 pairs on UTP/STP cable
Automatic Shutdown: After 1 hour of inactivity
