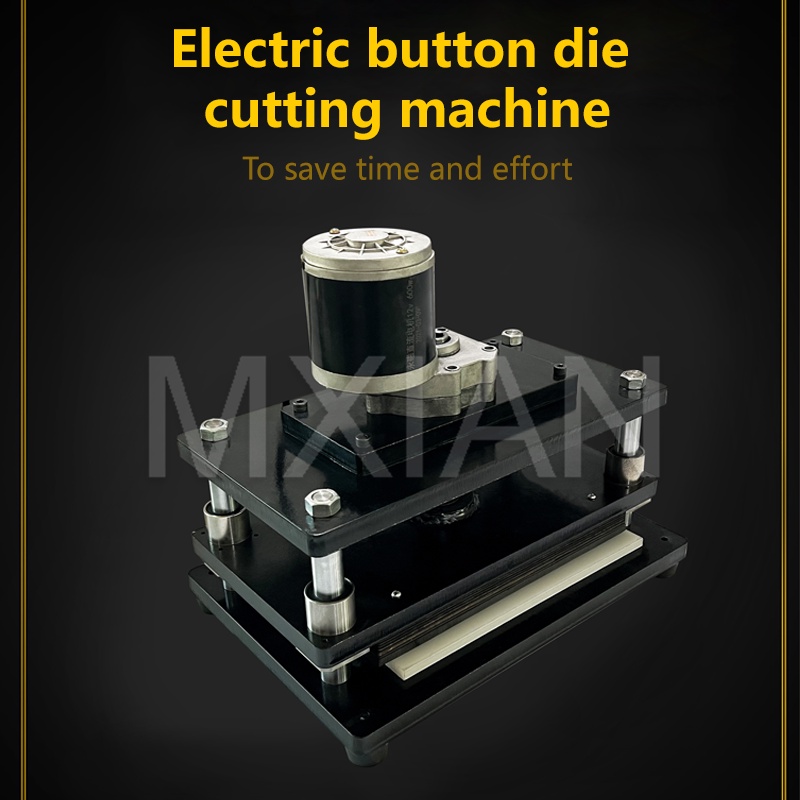

Product name: Electric button die-cutting machine
Model: Electric Button Model-M
Upper platen size: 200*280mm
Maximum pressure: 2.5 tons
Feed width: 280mm
Machine stroke: 50mm
Power: 600W
Voltage: 110V/220V
Packing size: 384*284*409mm
Net weight: 43kg
Total weight after packaging: 48kg

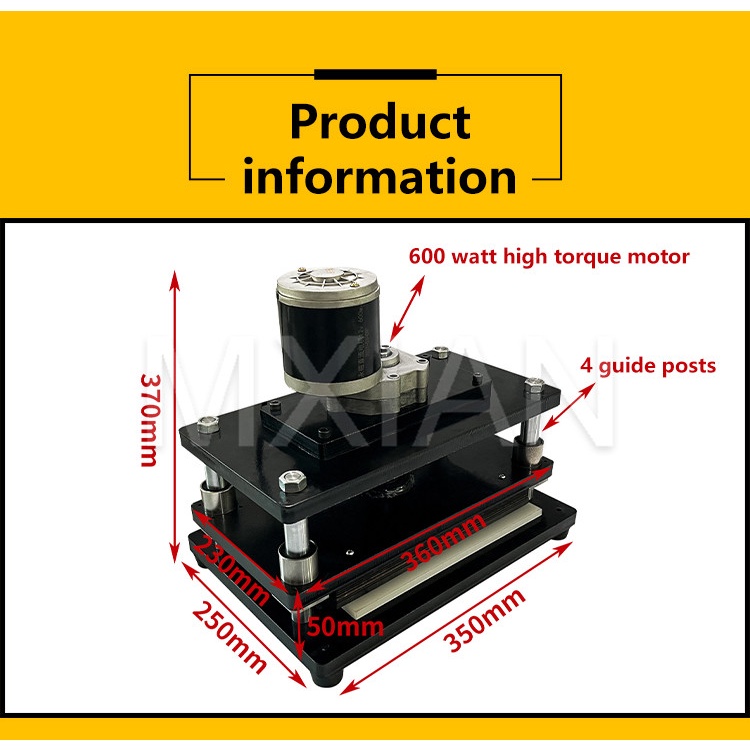

Model: Electric Button Model-L
Upper platen size: 230*360mm
Power: 600W
Voltage: 110V/220V
Feed width: 360mm
Maximum pressure: 3 tons
Machine stroke: 50mm
Packing size: 464*334*409mm
Net weight: 52kg
Total weight after packaging: 58kg

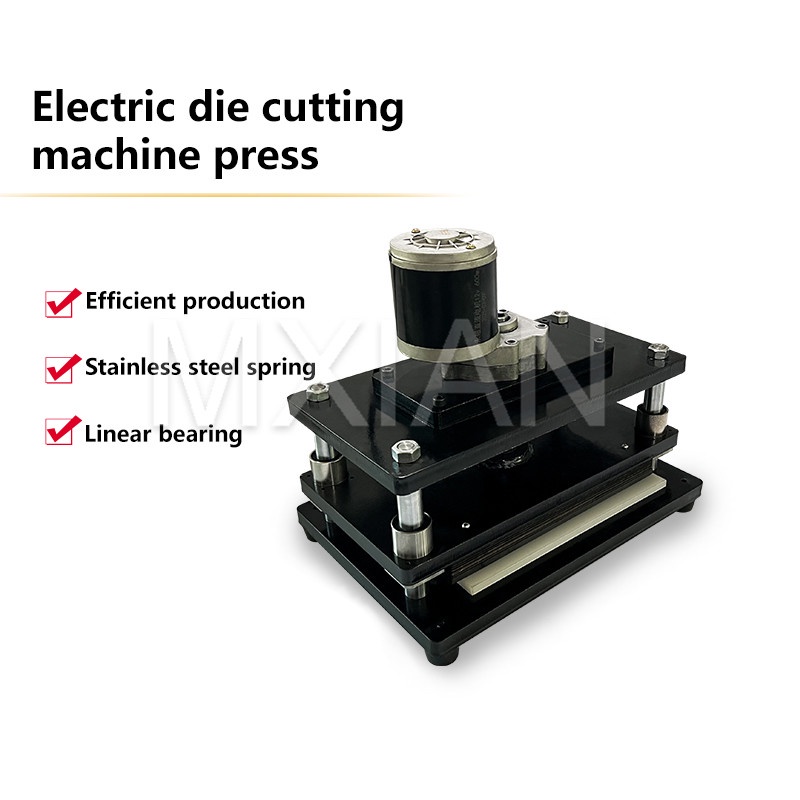

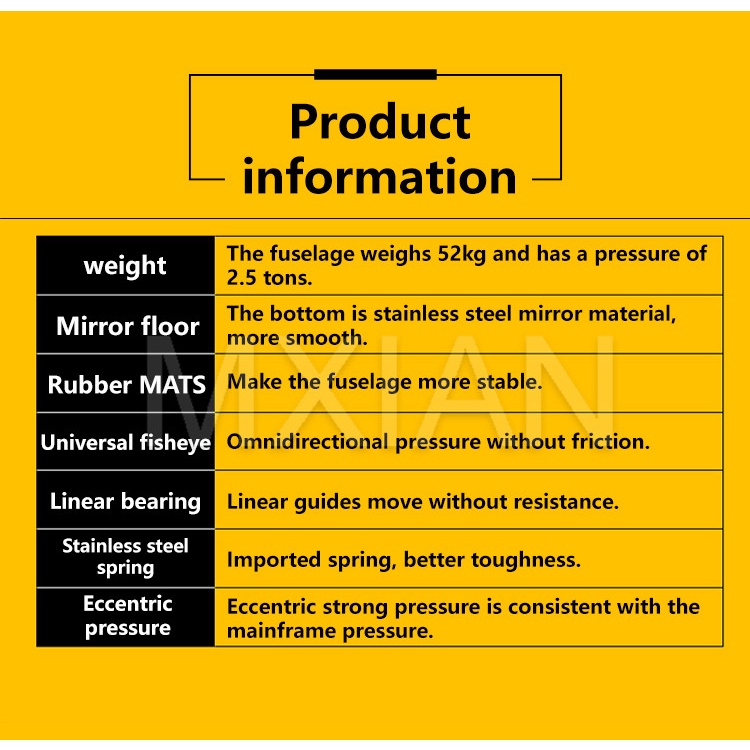

Features:
1. Mirror bottom plate: The bottom is made of stainless steel mirror material, which is more flat.
2. Rubber feet: make the body more stable.
3. Universal fisheye: All-round strong pressure without friction.
4. Linear bearings: Linear guides move without resistance.
5. Stainless steel spring: imported spring with better toughness.
6. Eccentric wheel pressure: The eccentric pressure is consistent with the mainframe pressure.
Precautions:
1. When the electric machine is pressed down, it can be released after pressing the mold. Do not keep pressing it. Excessive pressure will affect the service life of the motor.
2. When the machine is rising, do not lift it to the top of the pressure plate, press it all the time, if the pressure is too high, the bearing or the top will be damaged.
3. Apply butter after every 2-3 months of use to keep the nodes smooth, and regularly check whether the screws are loose to prolong the service life.
4. Use the mold and material to lay flat in the middle.
