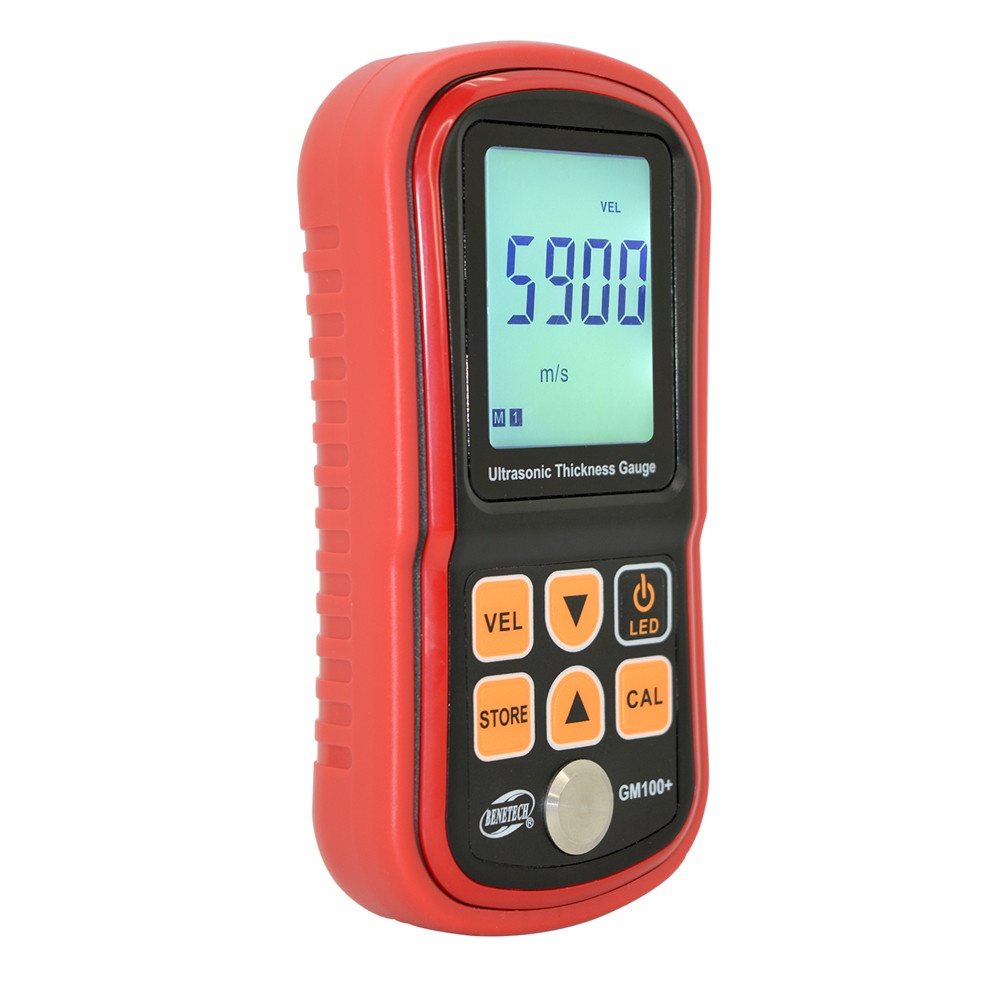

Digital Ultrasonic Thickness Gauge GM100 1.2-300MM Steel Pipe Wall Thickness Tester Voice Sound Velocity Meter With Backlight
This ultrasonic thickness gauge is an intelligent handhold product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely used in various precise measurement for different hardware / parts in industrial realm; one of its important applications is to monitor the level of during operation of various and pressure container.Diffusely applied in manufacture fields, metal processing,and commercial inspection. The material that conduct and reflect constant sonic velocity, this product is to be applicable to used.
Features：
Ultrasonic Thickness Gauge possesses the following features:
1.Data storage/deletion
2.Measuring sound velocity
3.LCD backlight display
4.Low battery reminder
5.Automatic shut-down
Specifications：
Display: 4-digital LCD display
Resolution:0.01mm(1.20 to 99.99mm)
0.1mm(100 to 300mm)
Working frequency: 5MHz
Measuring range: 1.20 to 300.00mm (steel)
Minimum limit for tube measuring: Φ20*3mm (steel)
Accuracy: +/- (1%H+0.05)mm H denotes the measured
thickness.
Sound velocity range: 1000 to 9999 m/s
Measuring sound velocity with a given thickness:
Measuring range:1000 to 9999 m/s.
When the given thickness 20mm, the accuracy is
±5%; when the given thickness over 20mm, the accuracy
is±1%.
Operation temperature: 0℃ to 40℃
Power supply: 3*1.5V AAA batteries
Operation current: Normal operation current ≤45mA
With Backlight turn on current ≤55mA
Stand-by current: ≤20uA
Size: 72*146*29mm
Weight: 202g

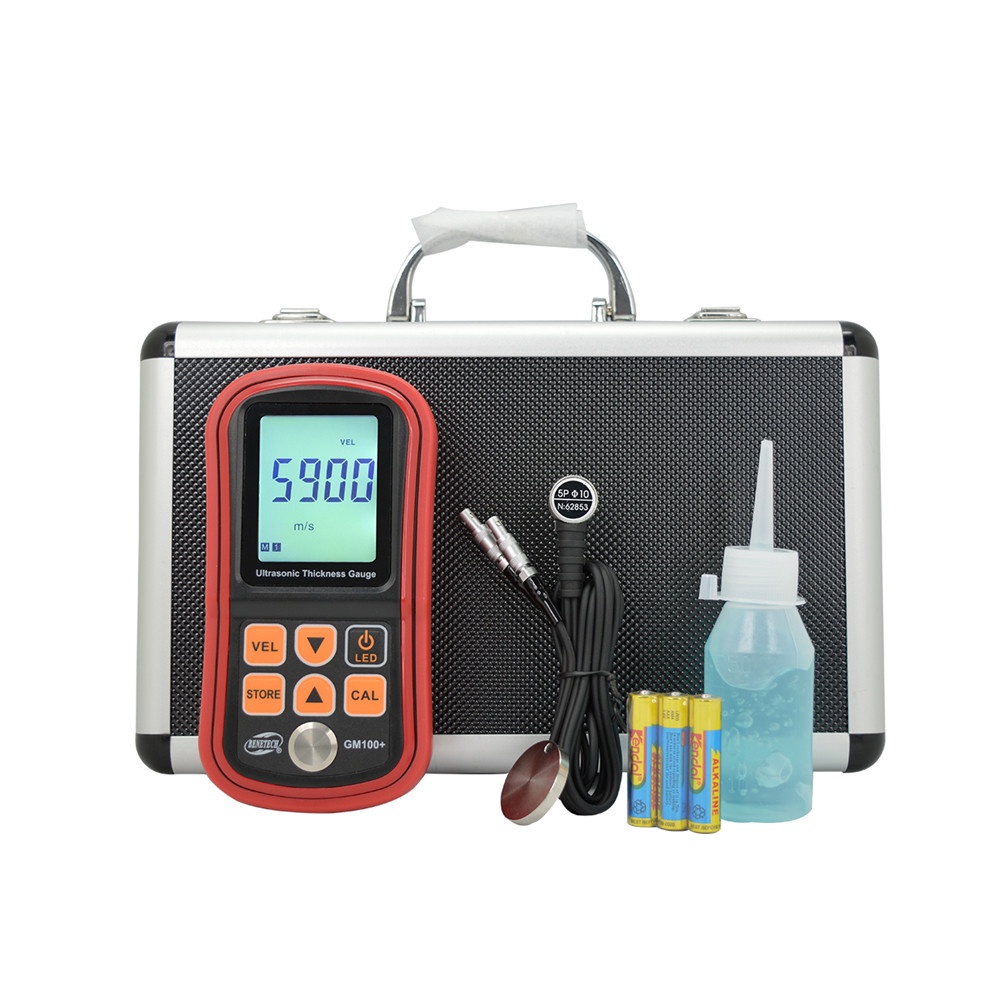

Packing List:
Main unit-1PCS
Transducer: (Φ10mm 5MHz ) 1PCS
Coupling agent: 1PCS（50ml）
4mm Sample block: 1PCS
Optional accesseries: (Φ10mm 2.5MHz ) 1PCS
*Battery not included.
