Looking for an efficient and precise way to handle both metal and non-metal materials? Look no further than this manual punching machine! The J03-0.4A manual punch press is perfect for all your stamping, punching, bending, stretching, crimping and forming needs across a wide range of industries, including electronics, instrumentation, automotive, cameras, and more. With a nominal pressure of 4KN and an efficient and durable workbench, it's designed to get your job done quickly and easily. Plus, the adjustable torque gear and high-performance spring ensure accurate and reliable operation every time. Whether you're working on jewelry, tea cup processing, food, traditional Chinese medicine, or any other task, this manual punch press is up to the challenge. Order now and accelerate your work efficiency!
Mencari cara yang cekap dan tepat untuk mengendalikan bahan logam dan bukan logam? Jangan teragak-agak lagi dengan mesin pukul lubang manual ini! Mesin pukul lubang J03-0.4A ini sesuai untuk semua keperluan memotong, mengetuk, membengkokkan, menarik, mengecut dan membentuk bahan dalam pelbagai industri, termasuk elektronik, instrumen, automotif, kamera dan banyak lagi. Dengan tekanan nominal sebanyak 4KN dan meja kerja yang cekap dan tahan lama, ia direka untuk menyelesaikan tugas anda dengan cepat dan mudah. Selain itu, gear torsion boleh diubahsuai dan spring berkualiti tinggi memastikan operasi yang tepat dan boleh dipercayai setiap kali. Sama ada anda bekerja pada permata, pemprosesan cawan teh, makanan, perubatan Cina tradisional, atau tugas lain, mesin pukul lubang manual ini boleh menyelesaikan tugas dengan baik. Beli sekarang dan kembangkan kecekapan kerja anda!
想要高效、精准地处理金属和非金属材料？那么这款手动冲床就是您需要的！这款J03-0.4A手动冲孔机能够满足您在电子、仪器、汽车、摄像机等各个行业的冲切、冲孔、弯曲、拉伸、卷曲和成形需求。它具有4KN的额定压力和高效耐用的工作台面，能够快速完成您的任务。此外，其独特的调节螺母设计可以方便地调整扭矩齿轮高度，实现精准操作，高性能弹簧设计保证使用寿命长久。无论您需要进行珠宝加工、茶杯加工、食品加工，甚至是中药加工，这款手动冲床都能够完美胜任。现在就赶紧购买，为您的工作效率加速吧！

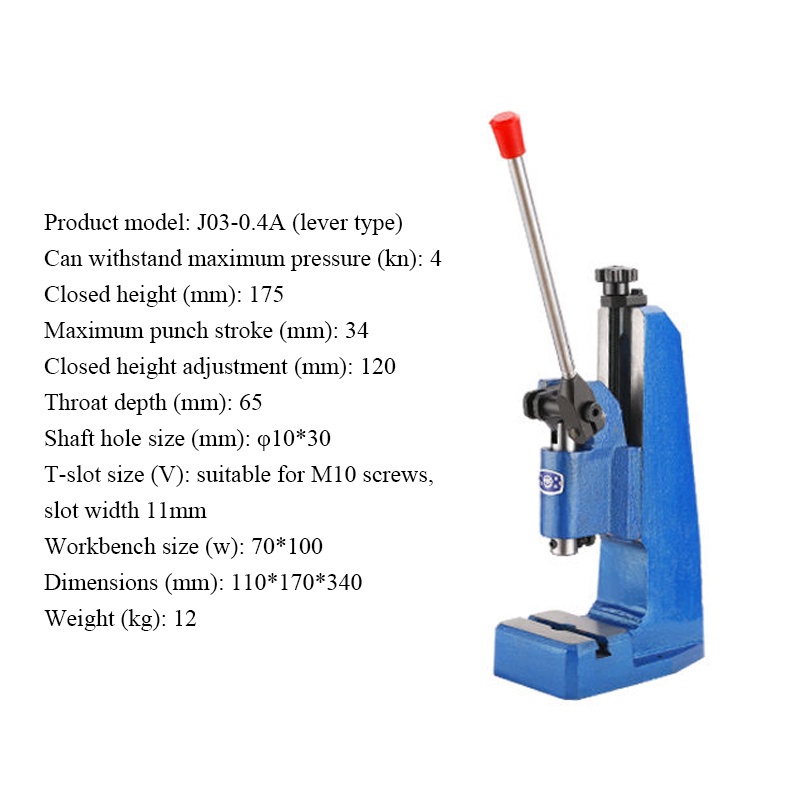

Product parameters
Model: J03-0.4A
Nominal pressure: 4
Seal Height Adjustment: 120
Maximum film height: 175
Max stroke: 34
Throat depth: 65
Die handle hole size: φ10X30
Workbench size: 70X 100
Size: 110X 170X 340
Weight: 12

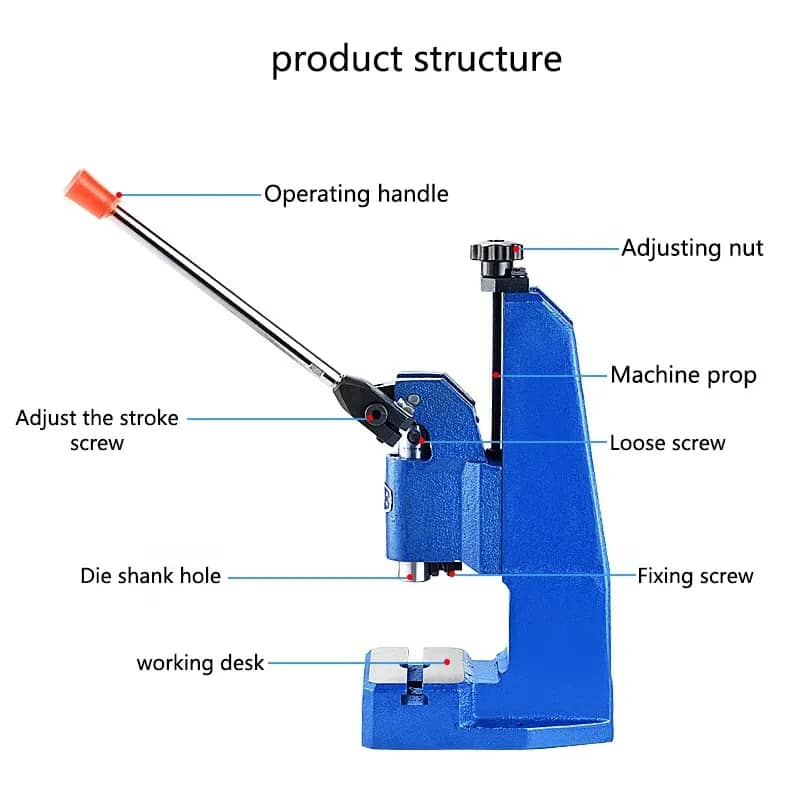

Product Details

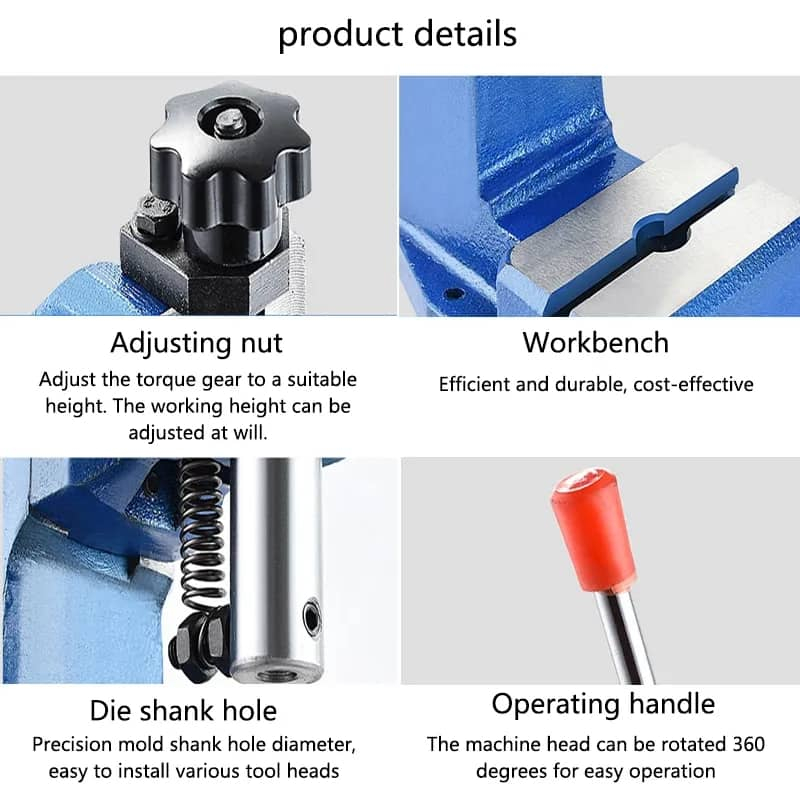

1. Adjustment nut: Adjust the torque gear to the proper height. The working height can be adjusted at will.
2. Workbench: efficient and durable, cost-effective
3. Die shank hole: precise die shank hole diameter, easy to install
4. Operation handle: the head can be rotated 360 degrees, easy to operate
5. High-performance spring: no deformation during use, to ensure that the spring elastic work is guaranteed, a wide range of applications, easy to operate
Widely used in electronics, instrumentation, automotive computers, cameras and other industries, it can stamp, blank, bend, stretch, crimp and form metal and non-metal sheets, strips, and coils. Jewelry/processing/tea cup processing, clothing/shoes and hats/accessories processing, food/traditional Chinese medicine/nut processing.
