BENETECH Vibration Meter GM63B Handheld Digital Professional Vibration Analyzer Visually Display Measurement Value and Status
This product adopts piezoelectric effect of artificial polarized ceramic for design. it is suitable for monitoring of all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc. Field.

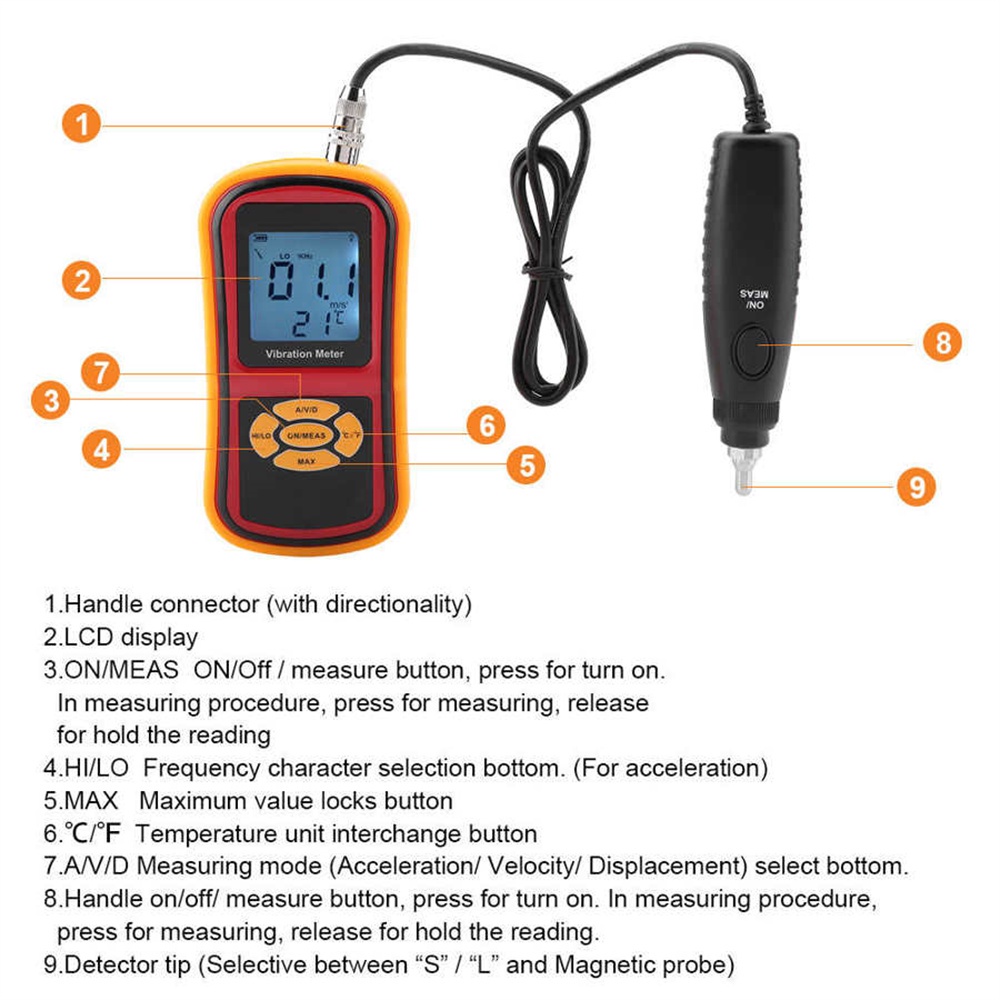

Features:
Vibration Meter possesses the following features:
1.LCD display measurement result and conditions directly
2.Measures acceleration (m/s² peak), velocity (mm/s ms),
and displacement (mm p-p)
3.Selective vibration characteristic
4.Uses hi- sense of vibration sensor, measuring accurately

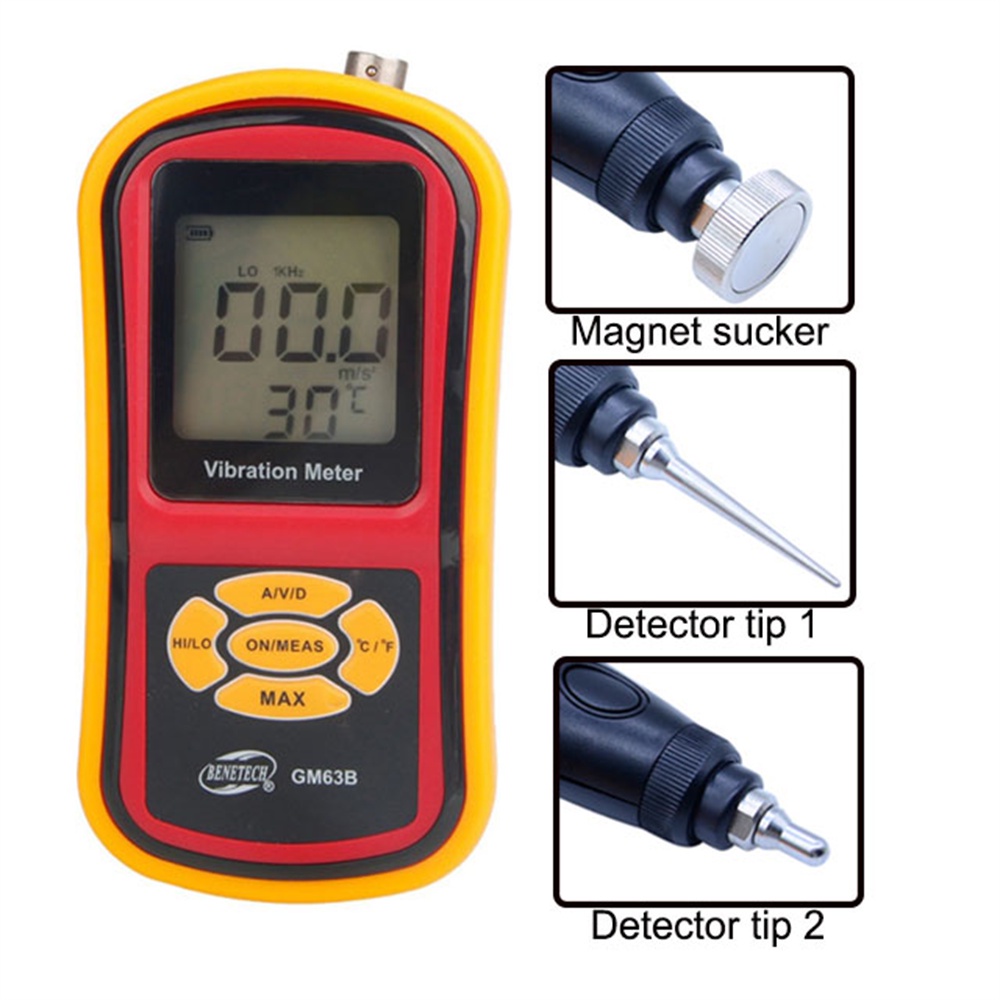

5.Equipped two probes (S and L) to adapt the different
measurement requirement
6.Provides a magnetic probe to fit the condition uneasy hold
on by hand
7.Low battery indication
8.Auto turn off function
9.LCD back light function
10.Maximum value hold function
11.Temperature unit C°/F°selection
Specifications:
Vibration pickup：Piezoelectric ceramic accelerometer (shear-type)
Measurement range of acceleration：0.1~199.9m/s peak
Measurement range of velocity：0.1~199.9mm/s rms
Measurement range of displacement：0.001~1.999mm p-p
Velocity and displacement range is limited by：acceleration199.9m/s²
Measurement accuracy：±5%±2digits
Measurement frequency range of acceleration：10Hz～1KHz (LO) 1KHz～15KHz (HI)
Measurement frequency range of velocity：10Hz～1KHz (LO)
Measurement frequency range of displacement：10Hz～1KHz (LO)
Displays update cycle：1 seconds
LCD display：3 1/2 digits display

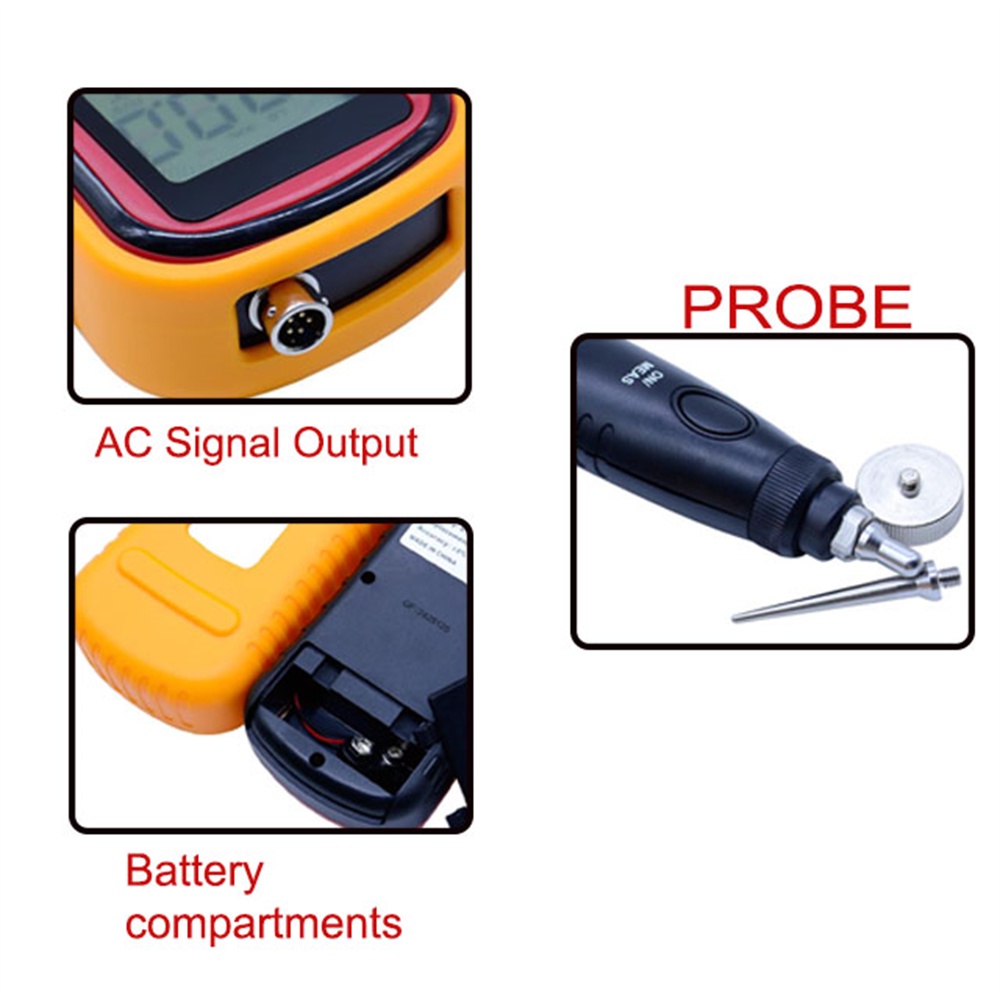

Single output：AC output 2 V peak (display full scale)
Load impedance 10KΩor more earphones：can be connected
Power supply：9V battery
Stand-by current：≤15μA
Operating current：≤25mA
Battery life：20 H continuous use
Auto power-off function：Turns off automatically after 60 seconds
LCD backlight function：7 seconds
Operating temperature range：0~40℃
Operating humidity range：30~90%RH
Low battery indication：6.4V±0.2V

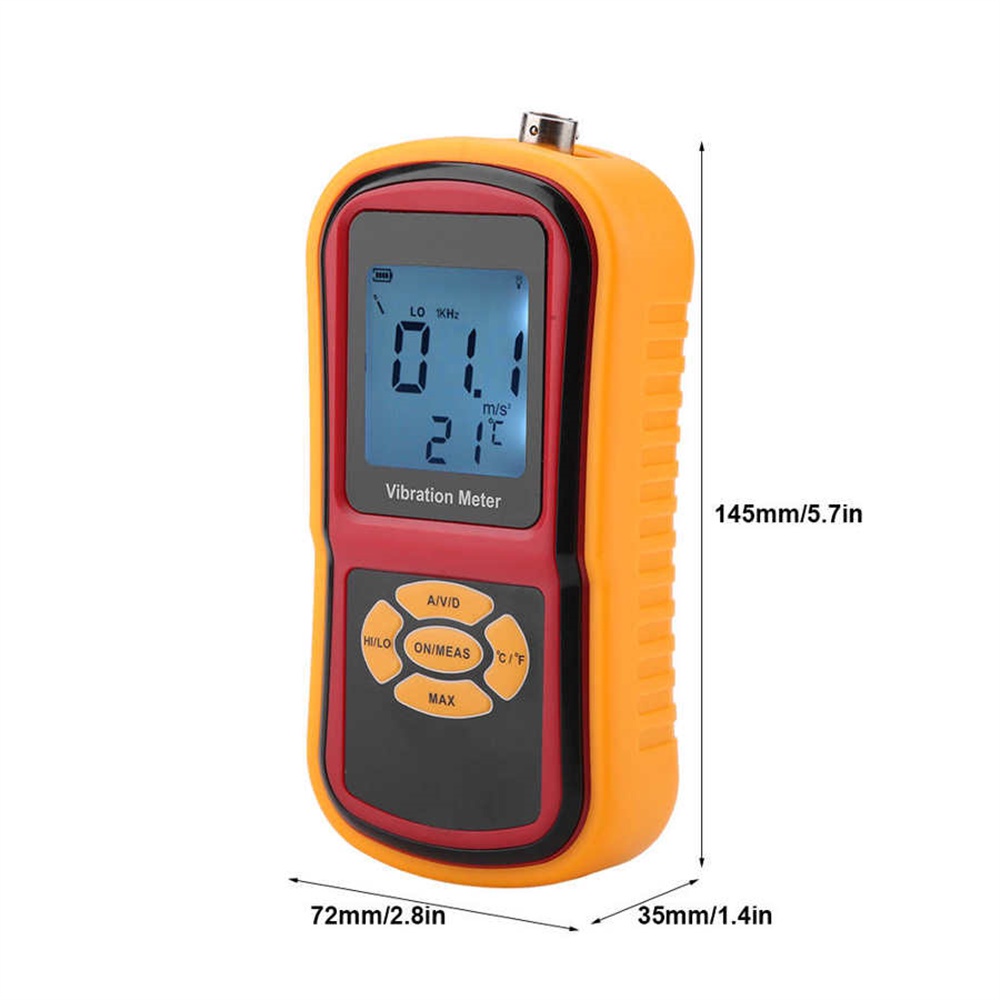

Dimensions：72x35x145mm
Weight：229g (not including battery)
Temperature range：-10℃~80℃
Temperature accuracy：±2℃

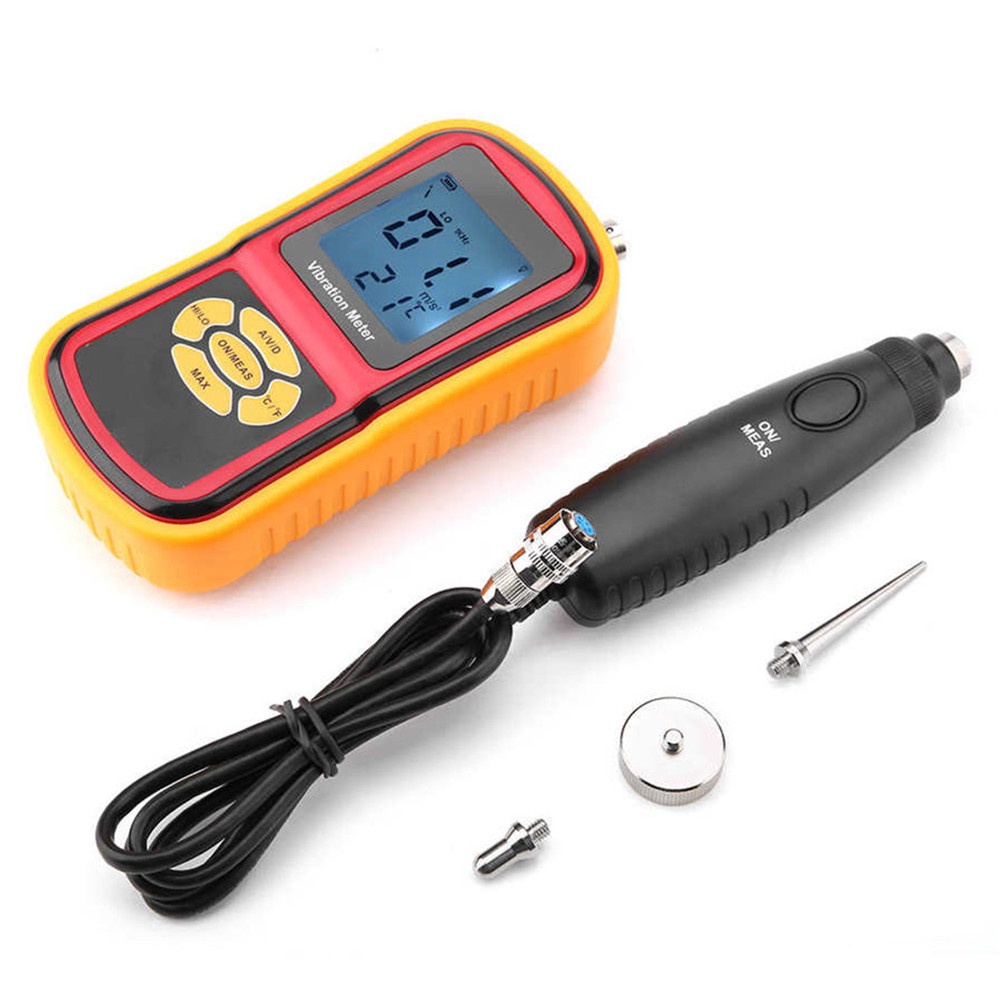

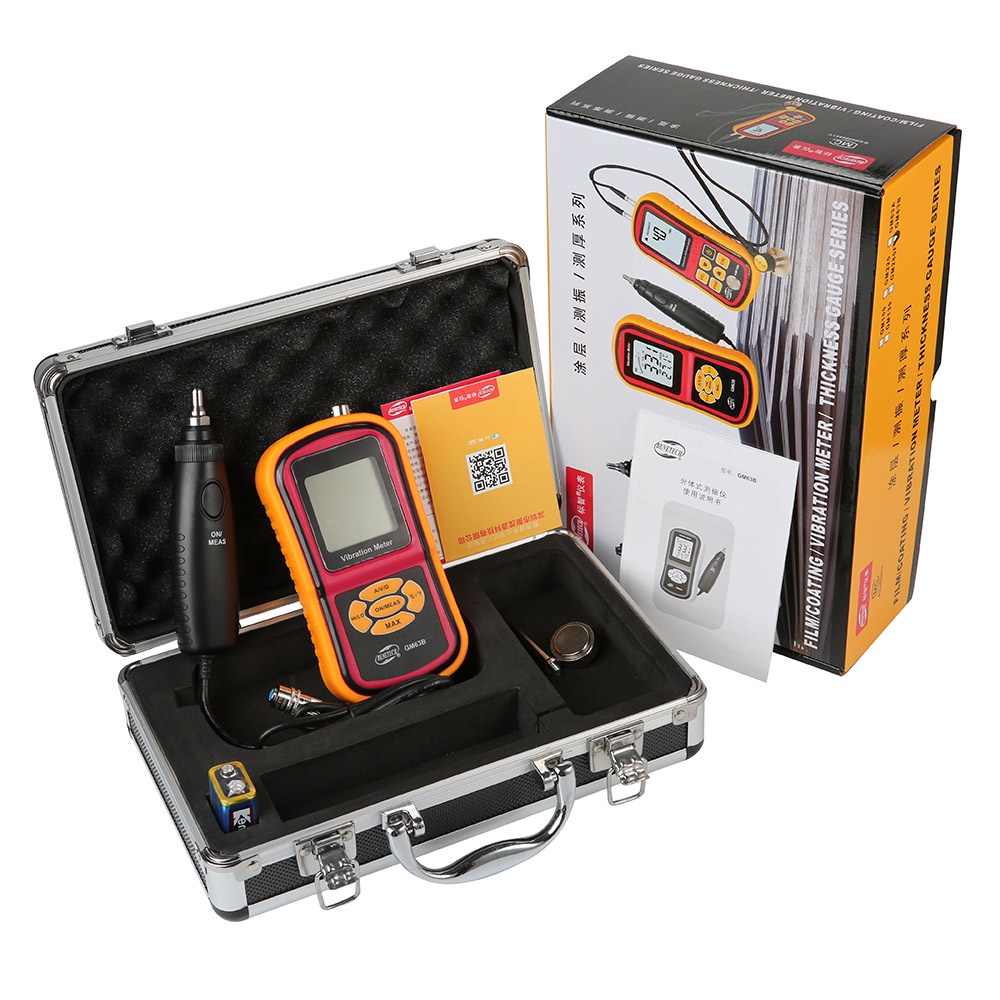

Packing List:
Main unit*1
Detector handle*1
Instruction manual*1
Detector probe accessorg (L)*1
Detector probe accessorg (S)*1
（Equiped on the main unit）
Magnetic probe*1
PP packing box*1
*Battery not included.
