Technical
1. Printing area :Normative PVC card,That be 85.5mm×55mm
2. Character-selection:Character rosette turnplate
3. Operation mode:Manual
4. Raised type lines:1-11 lines
5. 2 gears for word spacing gap:1/7 inch; 1/10 inch（only for small characters）
6. Raised type location indication:Indicator or sample card
7. Capitalization case of English letters (26)：A~Z
8. Capitalization & Lower Arabic numerals (20)：0~9
9. Small symbols (8)： '& ， ．— / （）
10. Large symbols (17)：：M V D J $ € ￡ ￥ 元 N O ．— /（）:
11. Modify splanishing symbols(1)：■
Attention:
1.Please use the PVC card and paper card (85mm x 55mm) CR-80 standard.
2.When turning the characters plate,please don't drop down the hand-haft.
3.When switch the embossment size, please ward off the card frame slightly to avoid damage.
4.Never put hand or other hard objects into the machine.
5.Please move the card frame to the left end when not using the machine.
6.If the imprinted character may be deeper or shallower,undesirable,then it can be adjusted by adjusting screw in the regulation.
Means:use the Z outside-hexagonal spanner along with the code sprinter to a little loose the hold-down nut,and then inside-hexagonal spanner with the code sprinter to adjust the middle regulating screw.
Attention:turning the regulating screw in clockwise may deepen the typed characters while clockwise turning may lighten the typed characters.After finishing,please use the inside-hexagonal spanner with the code sprinter to make the regulating srcew stable,and then use the Z outside-hexagonal spanner to fasten the hold-downscrew.
Kindly Notice: Due to the effort saving design, please do not pull the lever too hard during your operation in order to protect the machine.

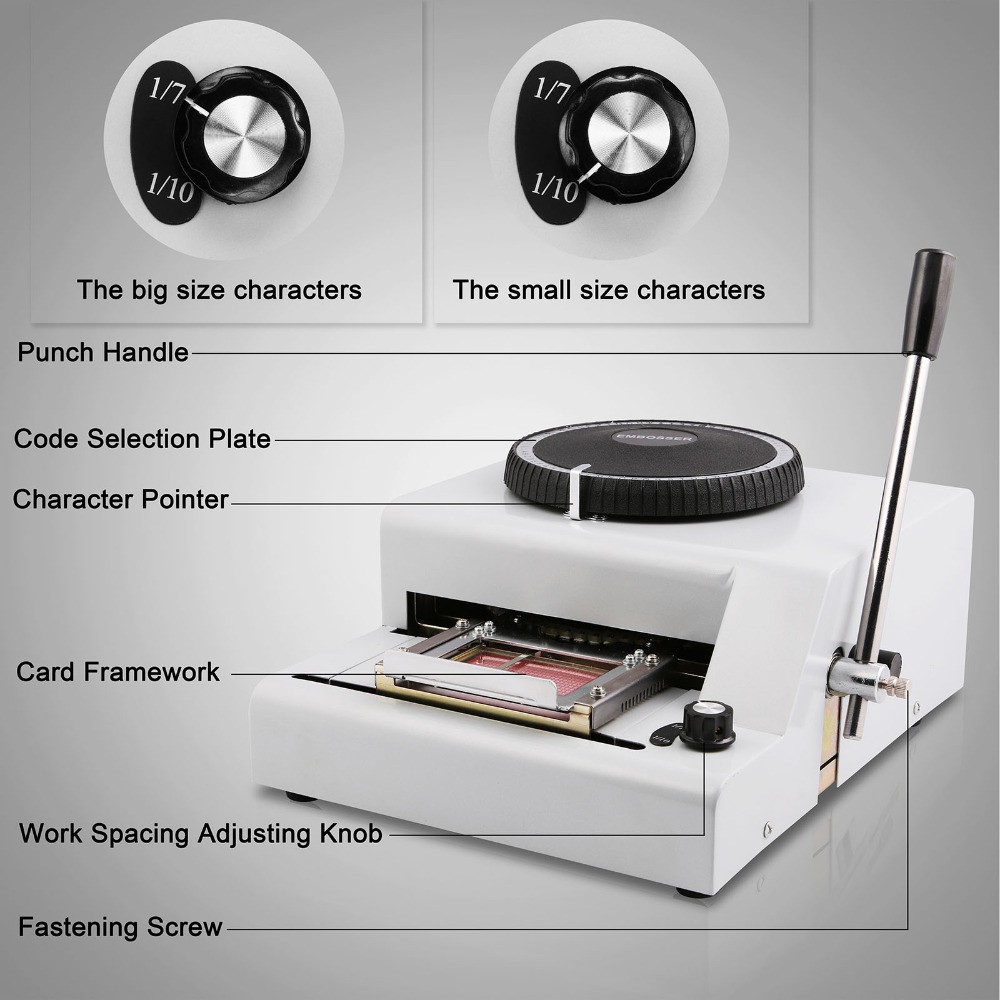

Features
• Manual PVC Card Embossing Machine
• Heavy Duty Steel Construction
• 11 Lines of Embossing
• 1 Correcting Characters For Error Correction
• Adjustable Kerning,7,10 Characters Per Inch
• Internal 72 Code Characters, Adopting ISO International Credit Card Special Characters, Meets All Your Needs
• Indicator and Sample Card For Raised Type Location Indication
• Easy to Use with No Skilled Training Required, Just Turn the dial to the Character you Want and Pull the Lever
• Character depth can be adjusted to users specifications by adjusting portion located towards the bottom of the machine (Hardware is included.)
• 1 Years Free Warranty
