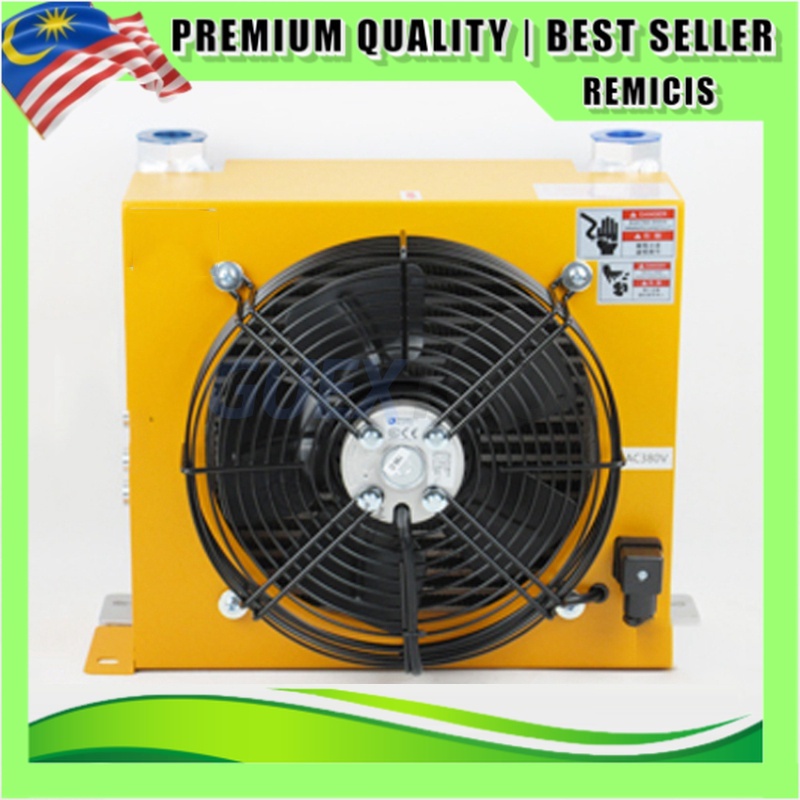

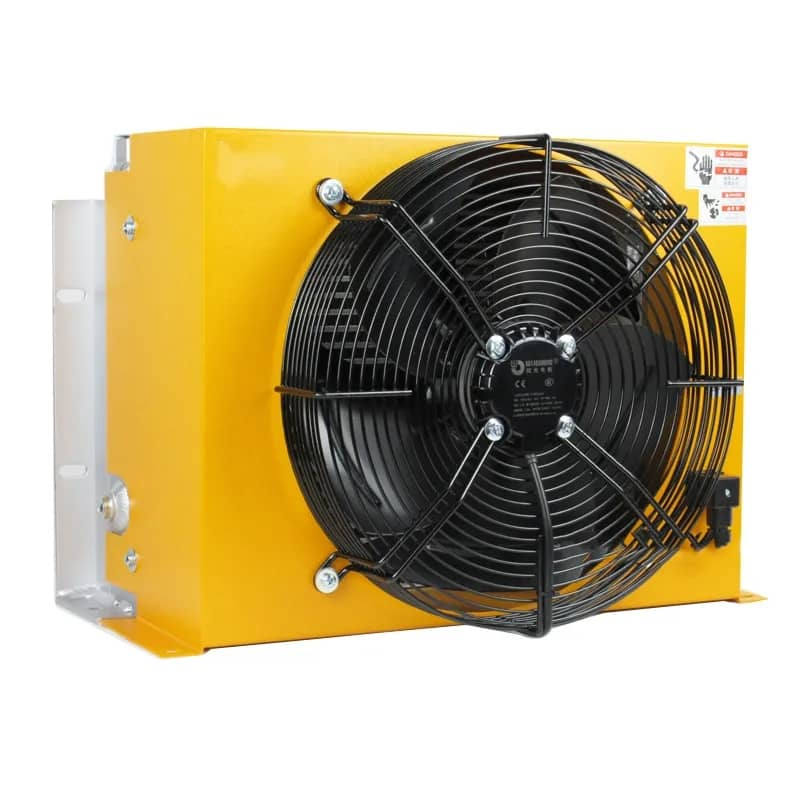

Introducing our high-quality Hydraulic Air Cooler, model AH1012T-CA, designed for truck-mounted crane modified fuel tank cooling. With a compact structure and a large external fin cooling area of 3.2 square meters, our air-cooled oil radiator provides excellent heat dissipation, making it ideal for return oil cooling, discharge oil cooling, and independent circuit cooling.
Our hydraulic air cooler operates with a voltage range of 24V/12V/220V/380V, consuming only 5800W of power, and a flow rate of 100L/min. It can withstand high working pressures of up to 2MPa and has a low failure rate, ensuring long-term reliable performance. With a fan power of 45W/52W, our cooler is energy-efficient and environmentally friendly, reducing operating costs and minimizing environmental impact.
With a weight of only 15KG, our hydraulic air cooler is easy to install and maintain. Unlike water coolers, it does not mix oil and water, further reducing the risk of failure and prolonging its lifespan. Upgrade your truck-mounted crane modified fuel tank cooling system with our hydraulic air cooler for optimal performance and cost-effectiveness.

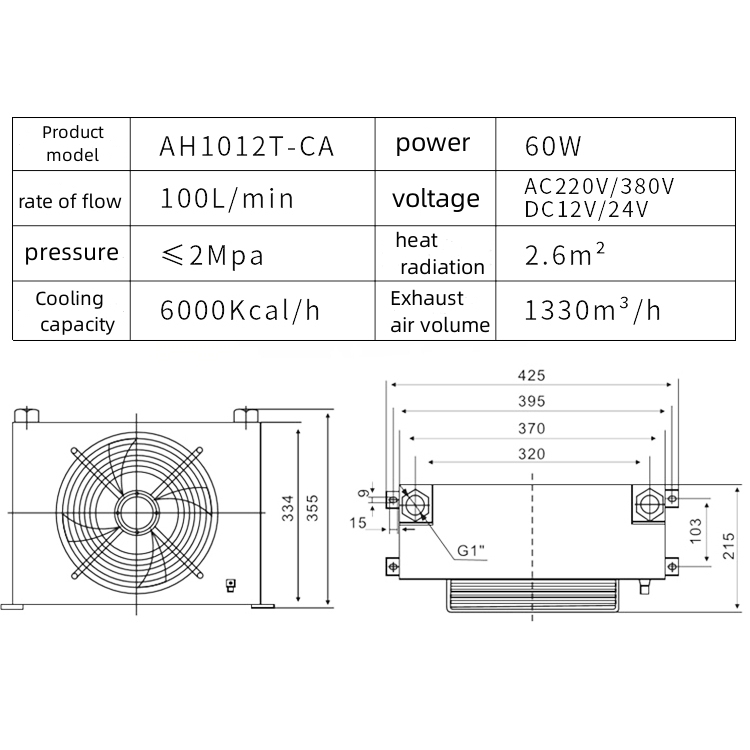

Name: Hydraulic Air Cooler
Model: AH1012T-CA
Packing size: 47*39*23
Voltage: 24V/12V/220V/380V
Power: 5800W
Flow 100L/min
Working pressure≤2MPa
Fan power 4 5W/52W
External fin cooling area: 3.2 square meters
Packing weight: 15KG
Advantage:
1. Environmental protection, energy saving, easy installation and low failure rate.
2. Compact structure, large heat dissipation area and high heat exchange rate.

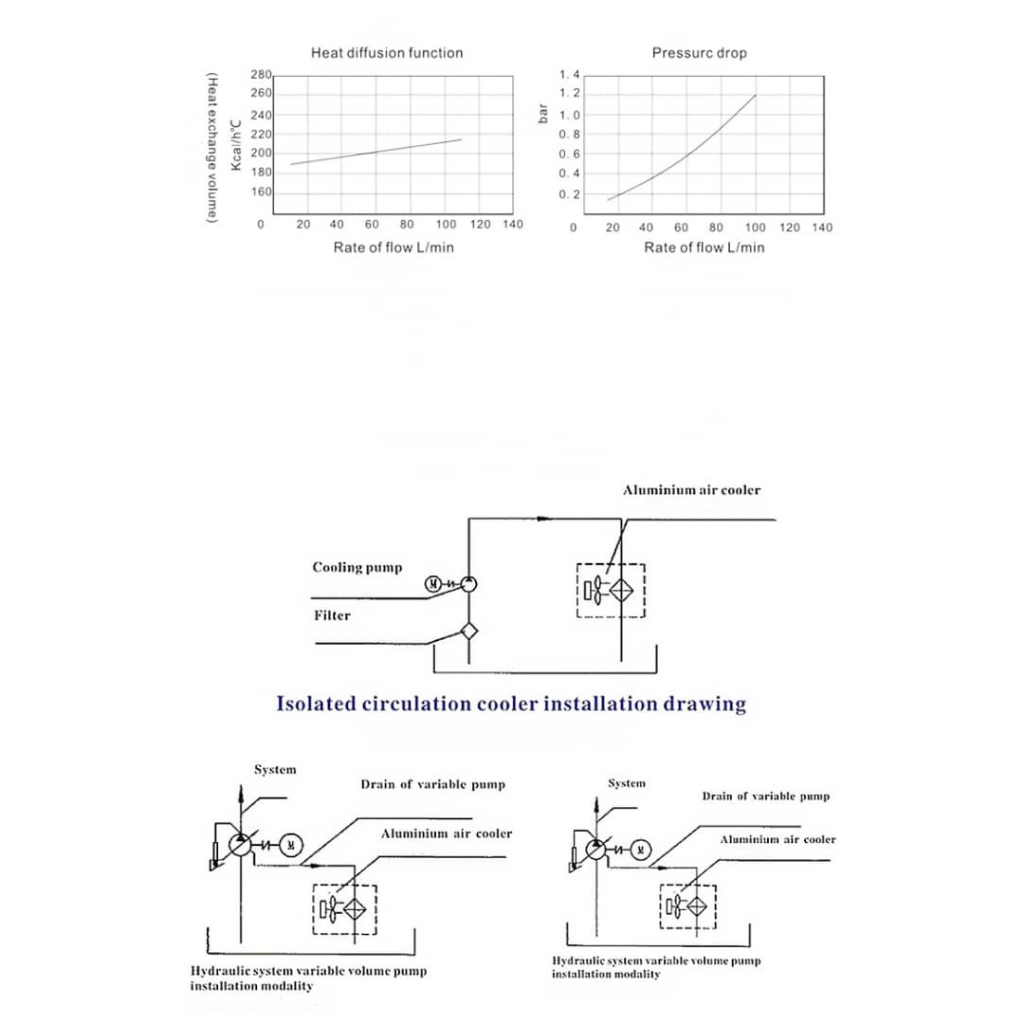

3. Long service life and high working pressure. Can be used for system return oil cooling, discharge oil cooling and independent circuit cooling.
4. The operating cost is low, and if the cooler breaks, it will not cause oil-water mixing like a water cooler.
Kami perkenalkan Hydraulic Air Cooler AH1012T-CA, berkualitas tinggi untuk penyejukan tangki bahan bakar pada kren truk. Dengan struktur padat, area sirip pendingin 3.2m2, dan daya 5800W, penyejuk kami ideal untuk penyejukan minyak balik, keluaran, dan litar bebas. Dapat beroperasi pada 24V/12V/220V/380V dengan laju aliran 100L/menit dan daya kipas 45W/52W. Mudah dipasang dan dirawat, dan ramah lingkungan. Tingkatkan kinerja dan efisiensi biaya sistem penyejukan Anda dengan hydraulic air cooler kami.
介绍我们的高品质液压空气冷却器，型号为AH1012T-CA，专为卡车挂载起重机改装油箱散热而设计。我们的空气冷却油散热器结构紧凑，外部散热面积为3.2平方米，提供优异的散热性能，非常适合回油冷却、卸油冷却和独立回路冷却等应用。
我们的液压空气冷却器可以在24V/12V/220V/380V电压范围内工作，功耗仅为5800W，流量为100L/min。它可以承受高达2MPa的工作压力，并具有低故障率，确保长期可靠性能。我们的冷却器风扇功率为45W/52W，节能环保，降低运营成本，最大程度地减少环境影响。
我们的液压空气冷却器重量仅为15KG，安装和维护非常容易。与水冷却器不同，它不会混合油和水，进一步降低故障风险，延长使用寿命。使用我们的液压空气冷却器升级您的卡车挂载起重机改装油箱散热系统，以实现最佳性能和经济效益。
