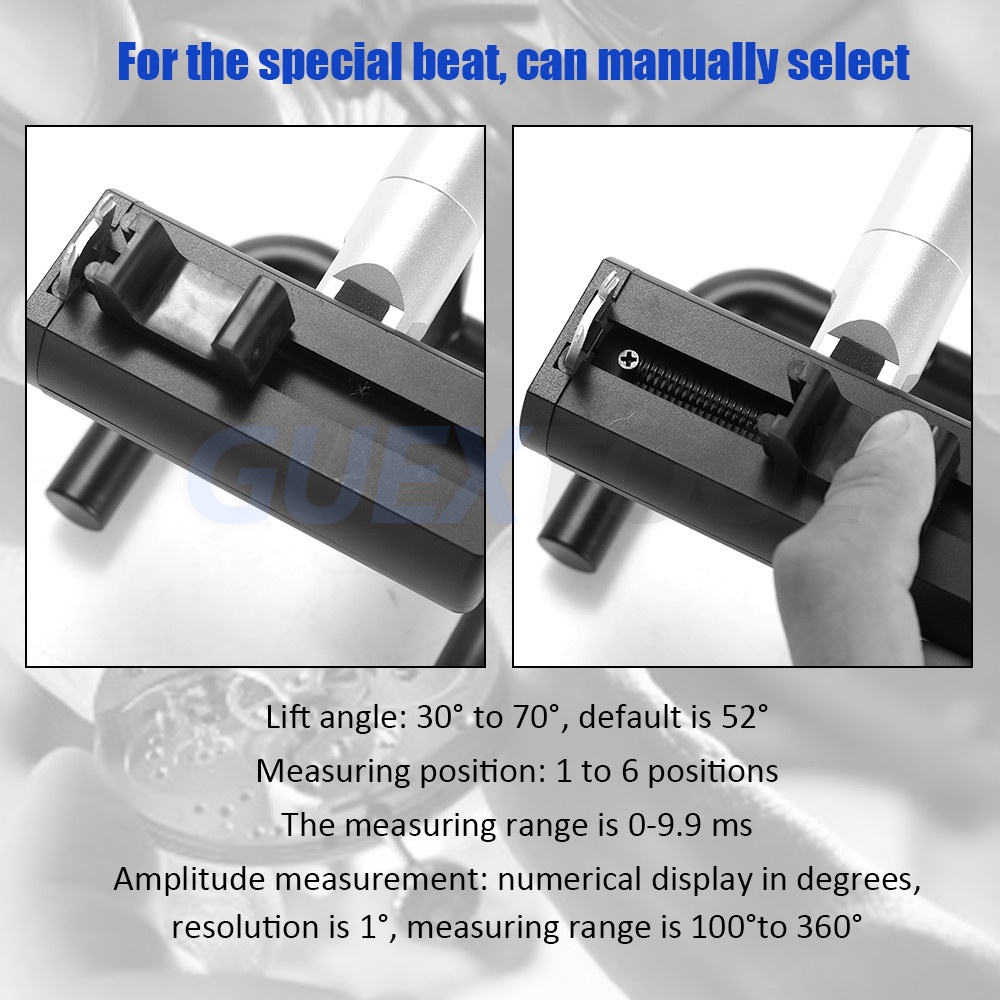

Brand Name: GUYX Theory: Mechanical Use: Multifunctional Specification: Main material: ABS Color: gray + black Measurement Possibilities: Graphically record rate deviation, amplitude, run-out error and run-out noise for mechanical watches. Rate deviation measurement: Measuring range: ±999s/d or ±99.9s/d Resolution: 1.0s/d or 0.1s/d Amplitude measurement: Measuring range: 100°~360° Resolution: 1° Measurement error: Measurement range: 0.0~9.9 ms Resolution: 0.1 ms Lifting angle: Measuring range: 30°~70° Default: 52° Measurement positions: 1-6 positions Line length: 480 points Measurement time period: 2/4/6/8/12/20/30/60 seconds Plug: European plug, American plug, European plug (optional) Language: Chinese, English, Japanese Display: color LCD graphic display, 480*272 pixels Working environment: 10℃~40℃ Relative humidity: 0~80% RH Product size: 185*120*40mm / 7.3*4.7*1.6in Item Weight: 337 g / 11.9 oz Packing size: 230*210*195mm/9.1*8.3*1.6in Package Weight: 1379g / 3.0lb feature: The frequency graph of the watch can be displayed on the LCD screen. Depending on the watch, the instrument automatically adjusts the optimal signal level during the test. The instrument will automatically calculate the rate deviation, amplitude and be-at error, and display the data in real time; select "±99.9s/d" to display the result within the engineering rate range, which can make the rate deviation accuracy reach 0.1s/d. The sampling period can be selected from 2 seconds, 4 seconds, 6 seconds, 8 seconds, 12 seconds, 20 seconds, 30 seconds, and 60 seconds, and the average value of the corresponding period is used as the precise value of the watch. Six test positions are adjustable, and the simulated sound can be played on the speaker or muted.
