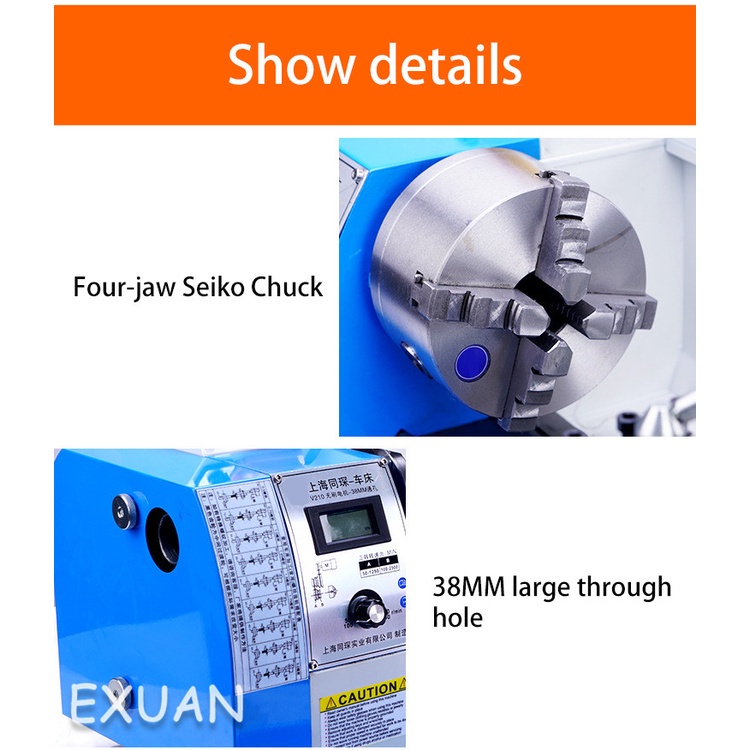

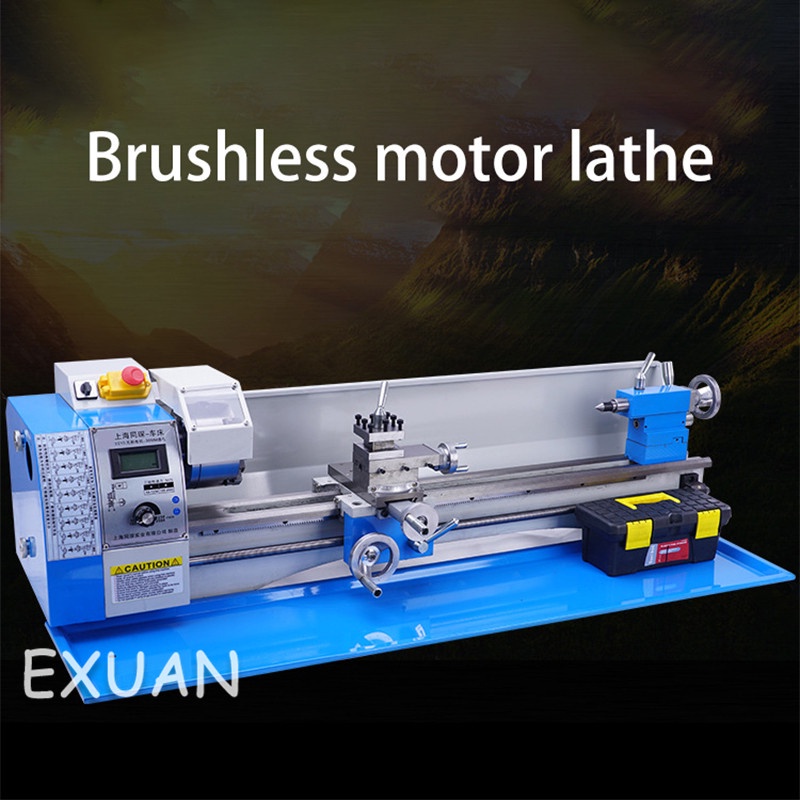

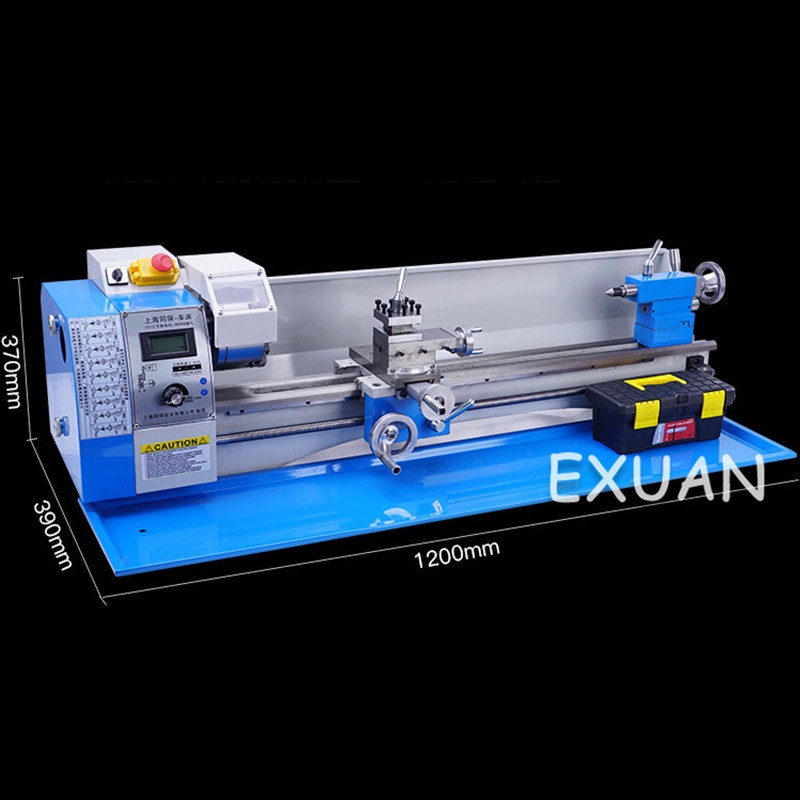

Product parameters Product name:Extended lathe Voltage:220V 50Hz Brushless motor:850W Spindle through hole:38mm Spindle speed：50-2500 rpm Shift stage:stepless speed change Machine accuracy range:<10s Rotary diameter of tool holder:100mm Bed turning diameter:180mm Tailstock sleeve travel:60mm Metric thread/stage:0.25-3.5mm/17 Lathe size:1200*390*370mm Distance between two centers:800mm Spindle taper:Morse No.5 Tailstock shaft taper:Morse No.2 Maximum chuck clamping:120mm 125chuck Tool post station:Four stations Maximum stroke of tool holder:55mm Middle tray travel: 100mm Large pallet stroke: 730-750mm Automatic feed range: 0.1-0.2mm Inch thread/stage: 12-40TP/15 Lathe net weight: 72kg
