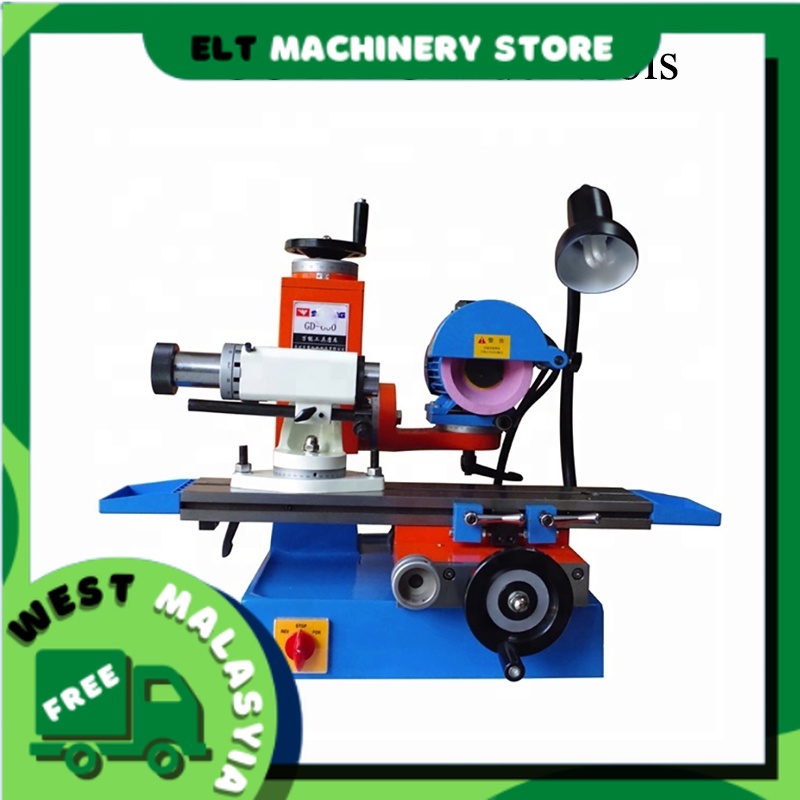

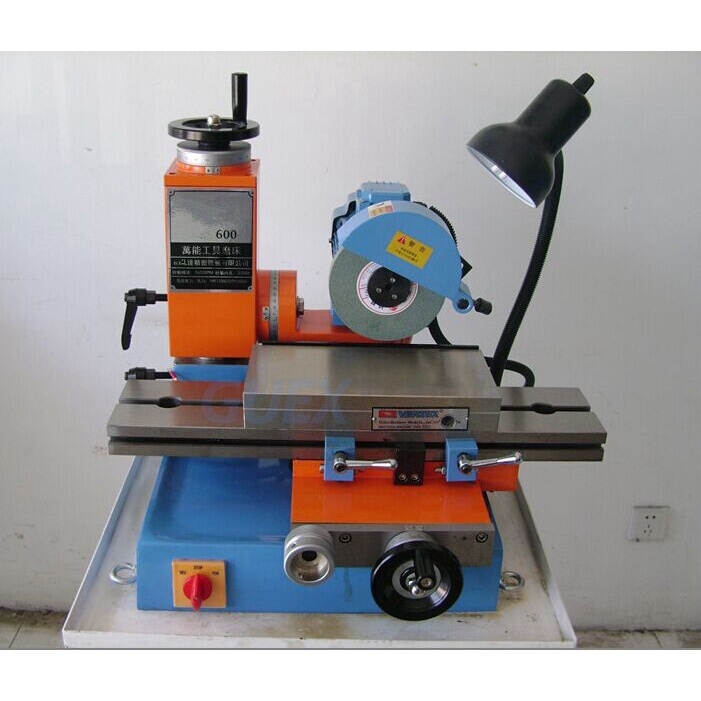

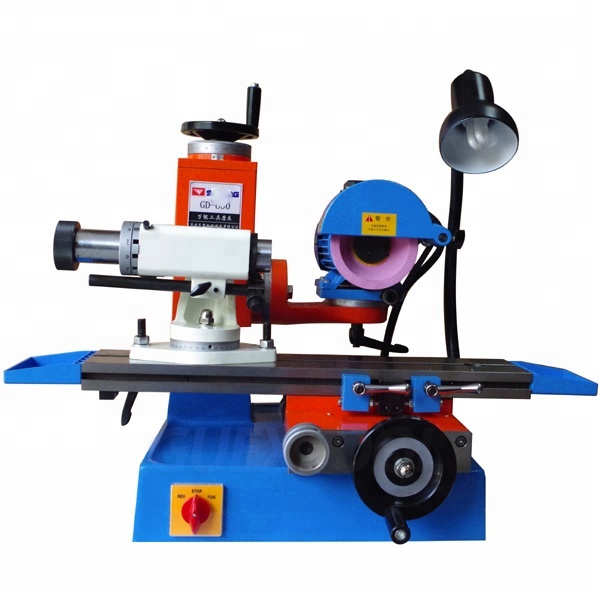

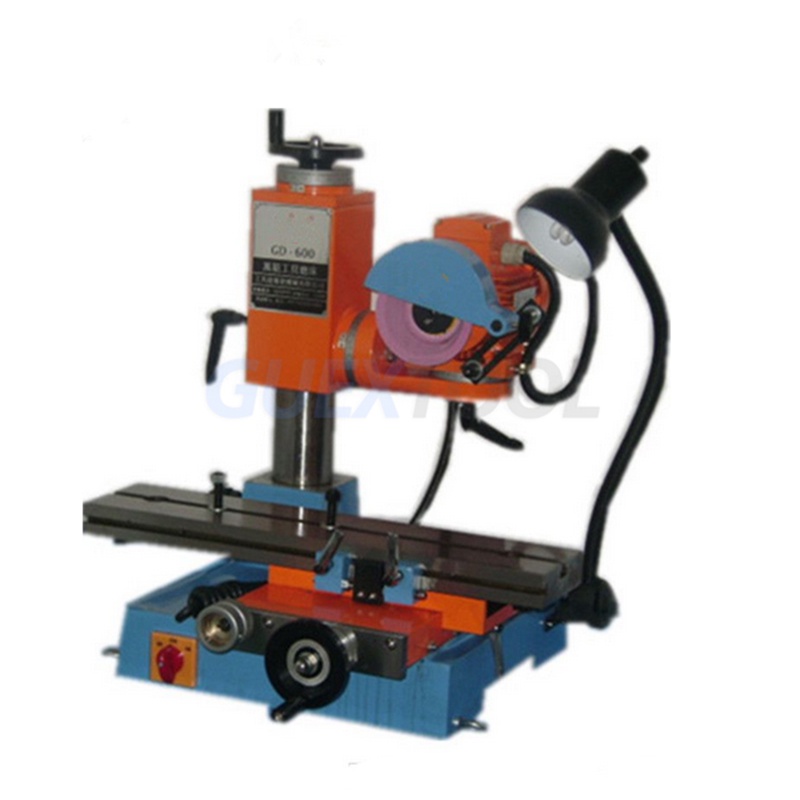

Product Name: Universal Tool Grinder Model: 600
Left and right travel of worktable: 280mm
Front and rear travel of the stage: 150mm
Countertop area: 130mmx520mm
Wheel head lifting distance: 250mm
Wheel head rotation angle: 360°
Wheel size: 125 x 50 x 32mm
Wheel Speed: 3,600 RPM
Motor pressure and horsepower: 3/4P, 220V
Net weight/gross weight: 150kgs/160kgs
Package size: 690x 700 x 800mm
The standard configuration:
1. Universal tool grinder (host) 1 set
2. 1 grinding wheel
3. A set of tools
Performance:

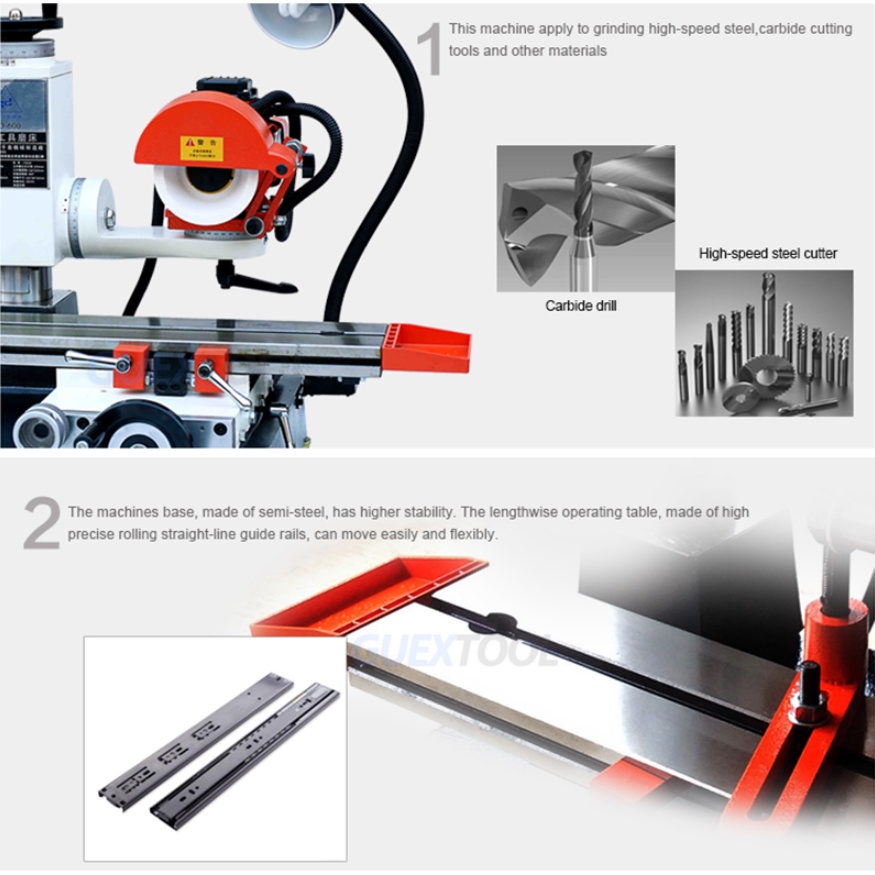

1. Using precision linear ball slides, the bed is stable and easy to operate.

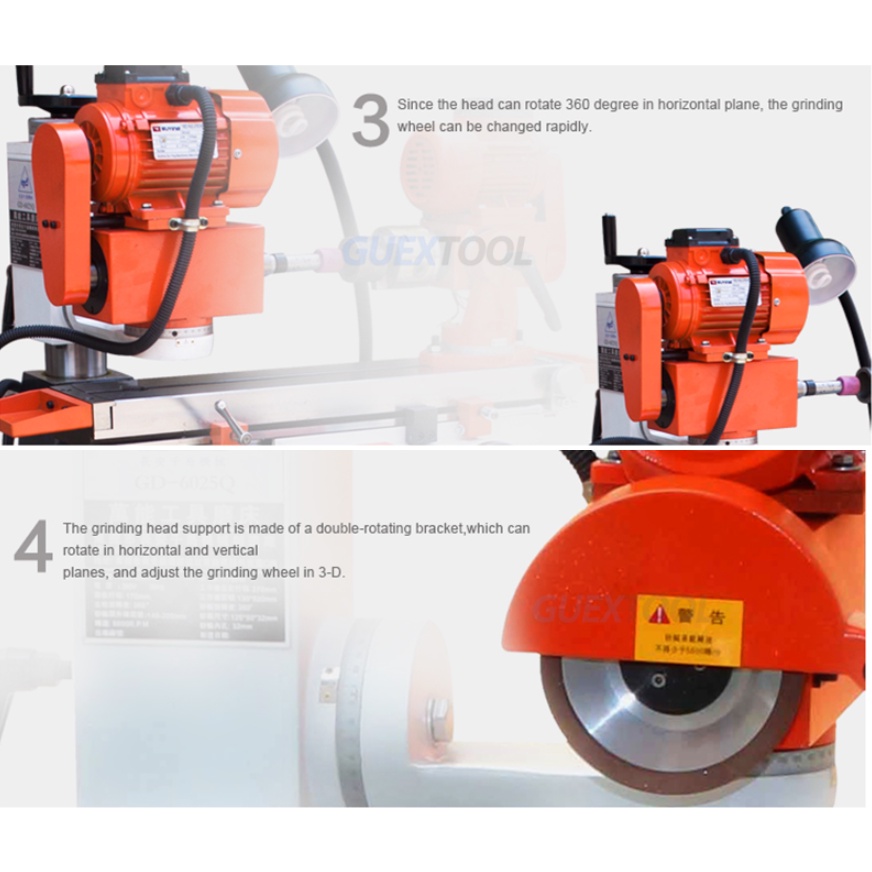

2. The motor can rotate 360° to increase the mechanical function and grinding range.

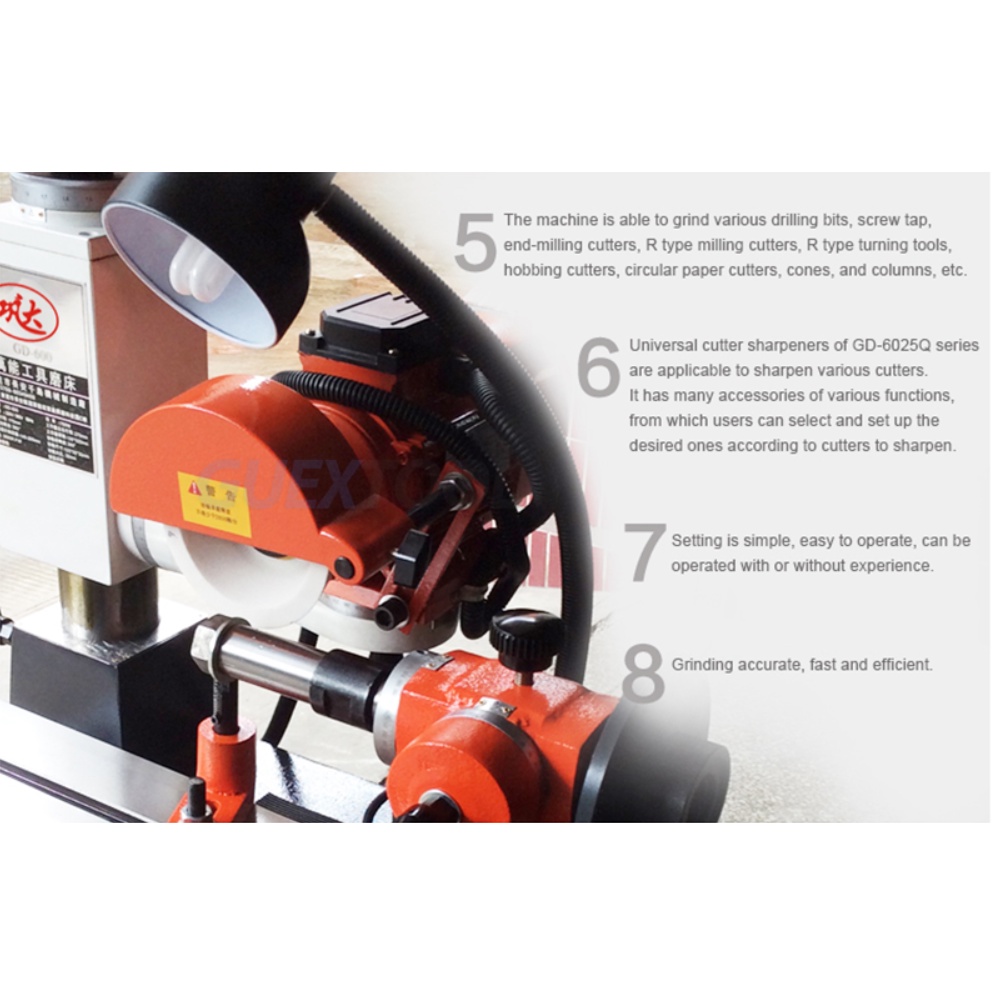

3. Various grinding accessories can be installed to complete the grinding of various tools.
4. Easy to set up.
5. Simple operation.
6. The grinding is accurate and fast.
