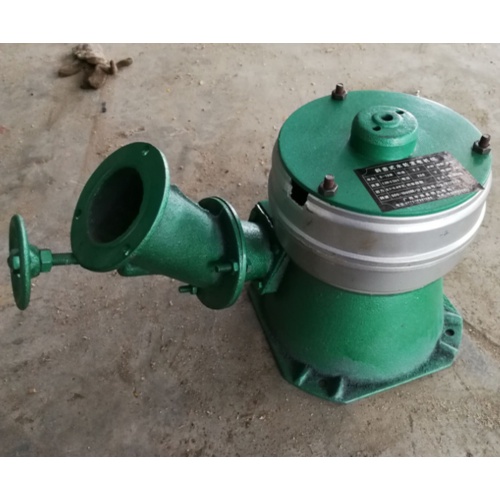

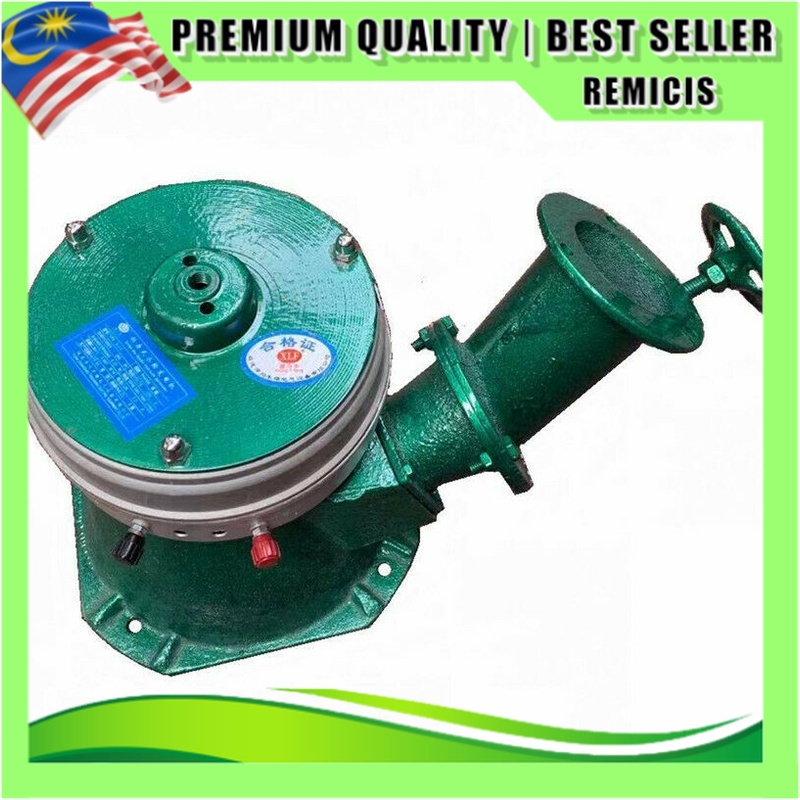

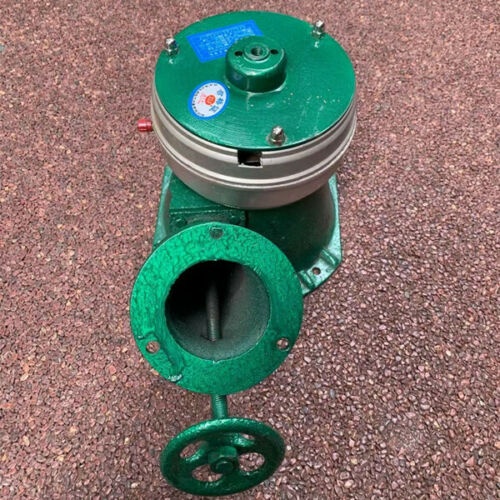

500W Hydraulic Generator Inclined Type Hydraulic Generator Set (Copper Core)
Feature:

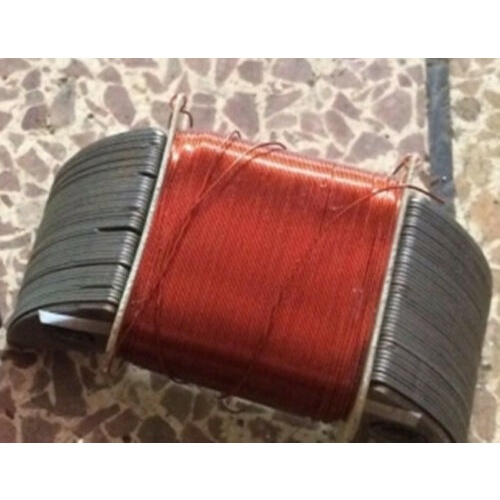

1.With the best NdFeB Permanent Magnet, high-grade pure copper winding, the generator can product power stably and high efficiently.

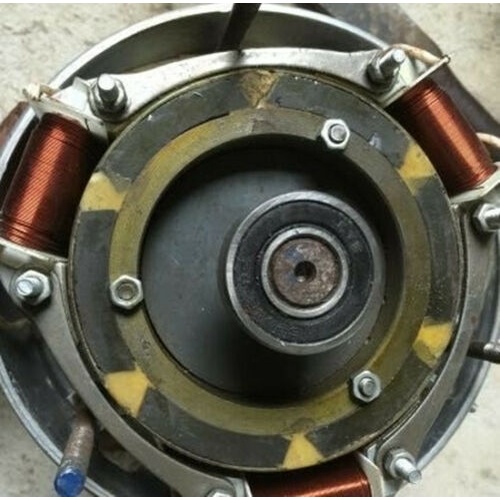

2. Specially-designed rotor and rotator, low resistancemoment in start-up, good at cooling
3. Gearless, direct -drive, and low rare earth Permanent Magnet Generator, easy and safe for operating and maintainance.
4. Die casting alluminum alloy case, anti- corrosion, acid and alkali resistant, anti salt corrosion
5.The oblique type hydraulic generator set belongs to the generator set with high water head and small flow, and the general applicable water head range is 7-40 meters. Its working principle is: the jet from the nozzle is not along the tangential direction, but along the direction of a certain angle with the rotation plane of the runner, enters the bucket from one side of the runner, and leaves the bucket from the other side.
Application:
This unit can be used in remote areas for temporary power. Customers have connected this unit to collapsible hose (fire hose) for temporary power while camping.
Suitable for household lighting, TV, electric furnace and other pure resistance household appliances
NOT suitable for household appliances such as refrigerators, washing machines, pumps, etc.
Installation Procedure:
After the unit foundation be poured with concrete is solidified, the unit is installed in place and then watered in sequence. The water level must be measured with a level gauge to ensure that the unit is fixed in a horizontal position. The gap between the unit and the floor should be sealed with cement, and no water seepage is allowed. After the unit is installed, check again and turn the turbine shaft of the turbine by hand. If the machine is flexible, the installation is finished.
Installation requirements: The bottom plane of the turbine in close contact with the foundation plane.
Specification:
Output voltage: AC 220V
Power: 500W
Nozzle diameter: 2CM
Water level Difference : 7-15M
Flow rate: 0.008-0.01m³/s
Pressure tube diameter: 8CM (3 inches)
Material:Copper+Metal
Weight: 17KG
Package Included:
1x Micro Hydro generator
