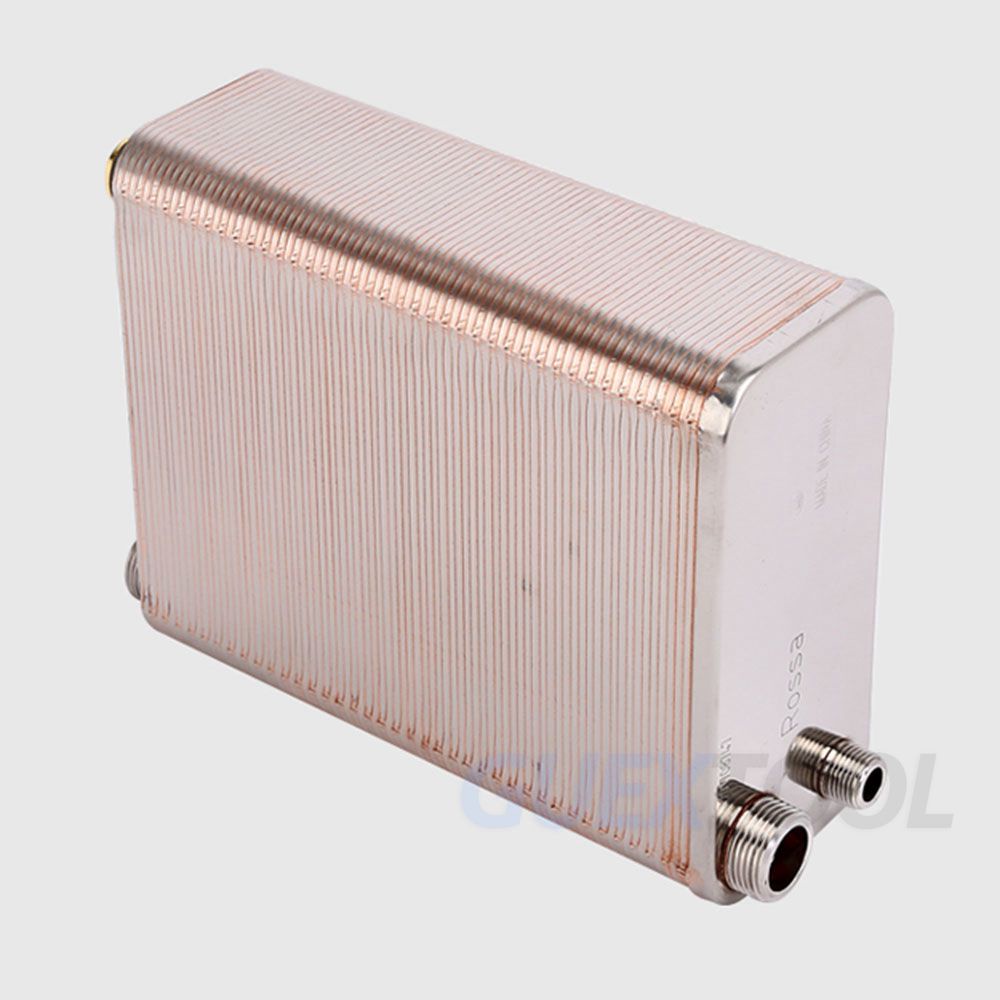

Name: Brazed plate type heat exchanger
Material:SUS 304 Stainless Steel, food grade
WeldIing Material: 99.9% Copper

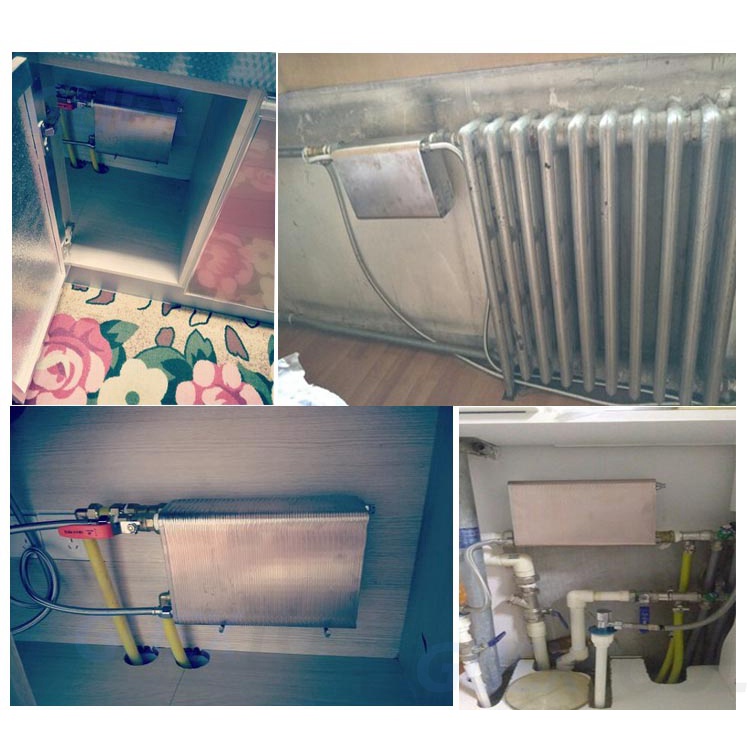

Application:Home Brew Wort Chiller, Famliy Hot Water supply
Thread of Port A1、A2:1/2" BSPT Male
Thread of Port B1、B2:1" BSPT Male

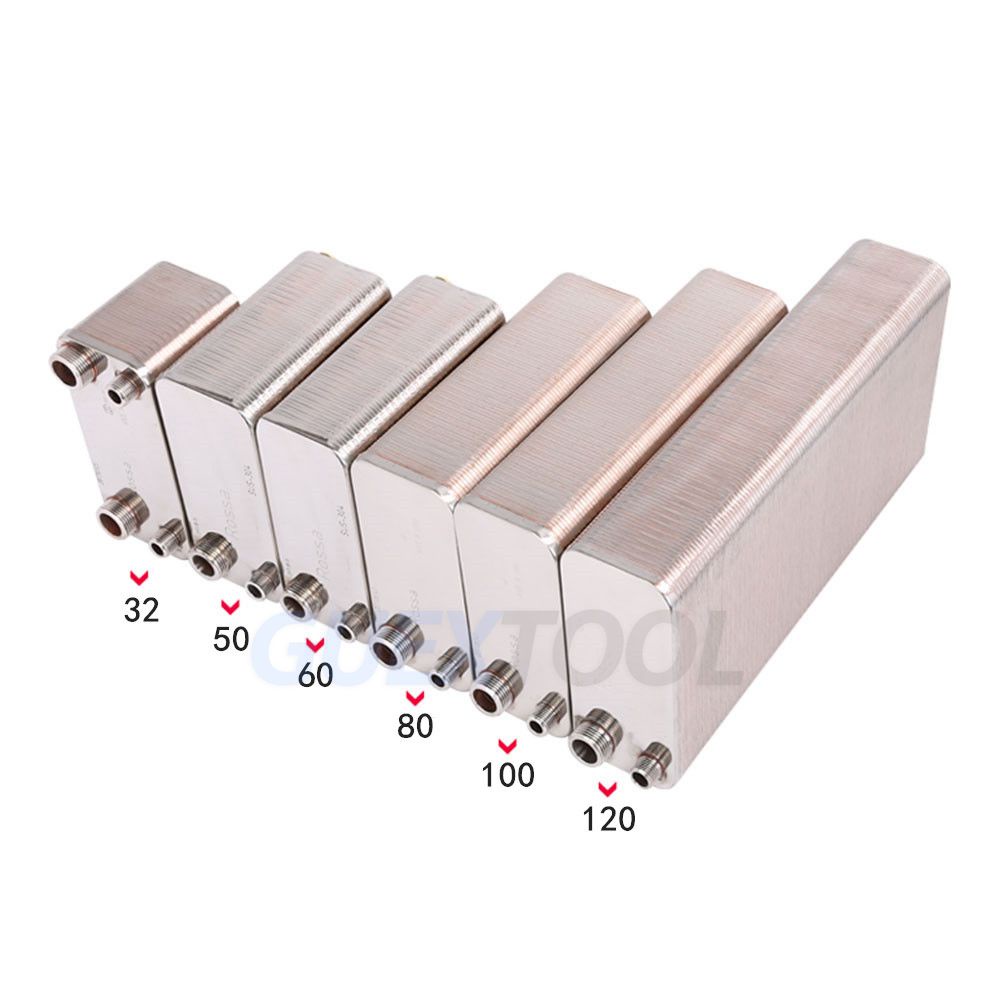

Plates Number: 120 plates

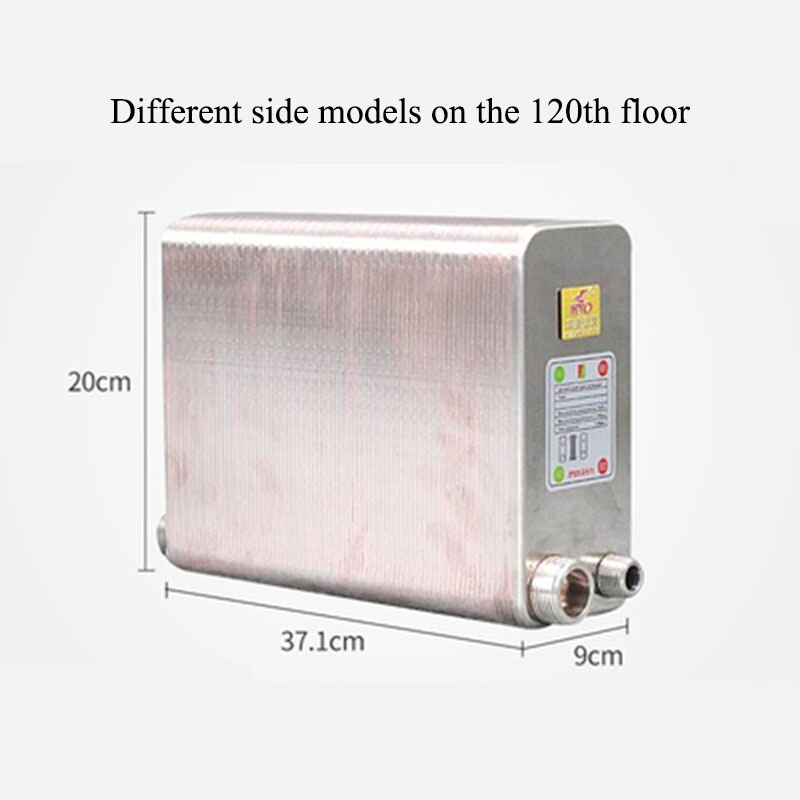

Dimension:195x85x380mm
Heat Transfer Area/plate: 0.028 m2(0.30 ft2)
Thickness of One Plate:0.25-0.35mm
Working Temperature:-160 ℃ to + 185 ℃
Below 50 plates: suitable for washing hands and face
